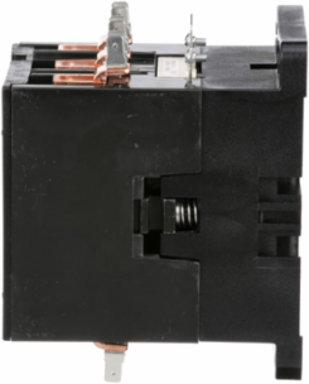

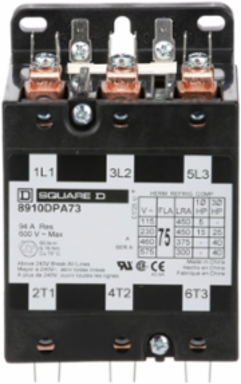

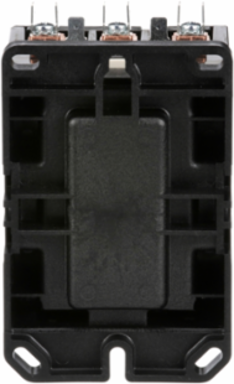

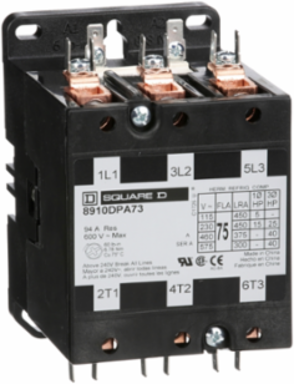

Square D 8910DPA73V02 Contactor, Definite Purpose, 75A, 3 pole, 40HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open
Square D 8910DPA73V02 Contactor, Definite Purpose, 75A, 3 pole, 40HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open
- MPN: 8910DPA73V02
- UPC: 785901118367
- PPN: SCH-8910DPA73V02
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$412.60/ EA
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 75 ampere and a resistive rating of 94 amperes. It also has a 5 HP at 115 VAC single phase, 15 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 40 HP at 460 VAC three phase and 40 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 5.20 inches by 3.39 inches and 4.76 tall. These contactors are UL component recognized and CSA certified.
Features
- Electrical systems protection from overloads and short circuits
- Current ranging from 20A to 90A
- Quick connect terminals and binder head screws for easy wiring
- Compact design and exclusive DIN mounting option
- Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment
Specifications
Conformance Attributes
- Product Certifications
- UL Recognized, CSA
Complementary Attributes
- Locked Rotor Rated Current
- 450 A 277 V AC, 375 A 460 V AC, 300 A 575 V AC
- Line Rated Current
- 75 A
Maximum Horse Power Rating5-5 hp 115 V AC, 1 phase, 15-15 hp 230 V AC, 1 phase, 25-25 hp 230 V AC, 3 phase, 40-40 hp 460 V AC, 3 phase, 40-40 hp 575 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- quick connect terminals, box lugs
- Uc Control Circuit Voltage5
- 120 V AC 60 Hz, 110 V AC 50 Hz
- Local Publishable Date
- 2025-11-13
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Package Weight Lbs
- 1.701 kg

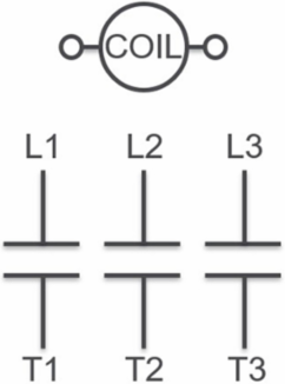

- Pole Contact Composition
- 3 NO
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- DPA
- Sustainable Packaging
- Yes
- Medium Desc
- Contactor, Definite Purpose, 75A, 3 pole, 40HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open
- Product Kit Identifier
- N
- Ue Rated Operational Voltage5
- 600 V AC
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Uc Control Circuit Voltage2120 V AC 60 Hz, 110 V AC 50 Hz
Local Data StatusPublishable
ManufacturerSchneider Electric
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Phase3 phase
Poles Description3P
Product Or Component TypeDefinite Purpose Contactor
ReturnabilityNo
Ue Rated Operational Voltage2600 V AC
Stocking FlagY
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Packaging Without Single Use PlasticYes
General Attributes
- Phase
- 3 phase
- Range Of Product
- DPA
Product Or Component TypeDefinite Purpose Contactor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United States
