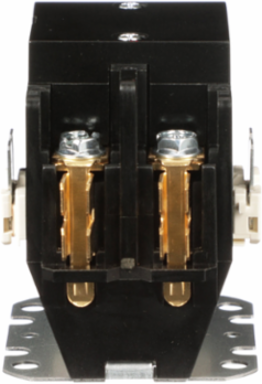

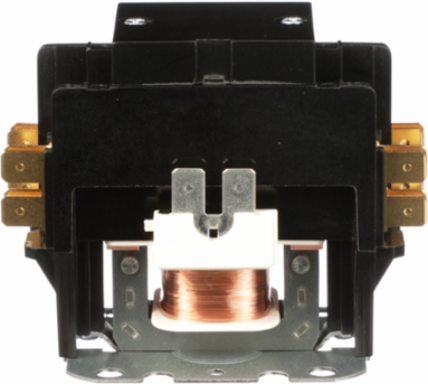

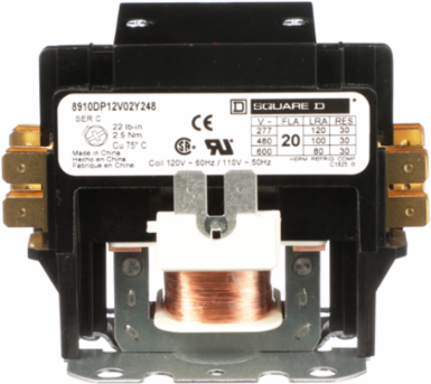

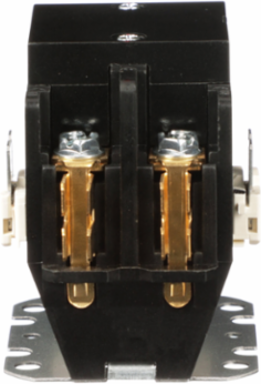

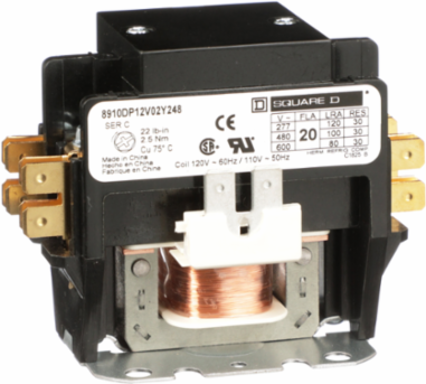

Square D 8910DP12V02Y248 Definite Purpose Contactor 20A 2-Pole 110/120VAC Coil with Cover

MPN: 8910DP12V02Y248
UPC: 785901397182
PPN: SCH-8910DP12V02Y248

$85.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

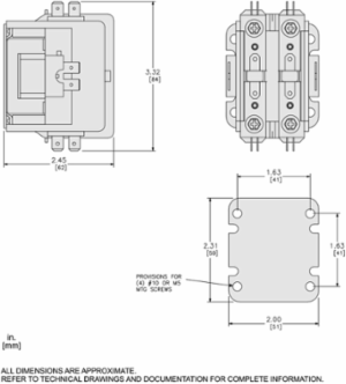

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 20 ampere and a resistive rating of 30 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. This device is supplied with a cover. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.

Features

Engineered for high-demand heating, ventilation, air conditioning, and commercial refrigeration systems, this 2-pole definite purpose contactor supports a 20A full-load inductive current rating and a 30A resistive current capacity up to 600VAC. This robust load capacity ensures that your heavy-duty compressors, heating elements, and fan motors cycle safely without premature contact pitting or catastrophic equipment failure.
This model features a premium, non-replaceable magnetic coil rated for 110VAC at 50Hz and 120VAC at 60Hz, making it a drop-in replacement for the vast majority of commercial and industrial control circuits. You can confidently integrate it into your existing single-phase setup, providing consistent inductive switching performance and a reliable 2 HP rating at 230VAC or 1 HP at 115VAC.
Designed with straight-through wiring architecture, it combines traditional binder head screws with quick-connect terminals to drastically reduce field wiring labor times and ensure a secure mechanical connection. The compact 2.00" x 3.32" footprint allows it to easily slip into crowded electrical footprints, while also supporting an optional specialized DIN rail mounting bracket for maximum setup flexibility.
This Square D by Schneider Electric contactor is fully UL Recognized, CSA Certified, and CE Approved to meet all applicable building and electrical code requirements. Choosing a tier-one certified component eliminates liability concerns, passes inspection hurdles seamlessly, and guarantees industrial-grade reliability over third-party, unlisted components.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Complementary Attributes

Line Rated Current	20 A
Maximum Horse Power Rating	1-1 hp 115 V AC, 1 phase2-2 hp 230 V AC, 1 phase

Locked Rotor Rated Current	100 A 460 V AC80 A 575 V AC120 A 277 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	binder head, quick connect terminals
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1905
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Number Of Poles	2P

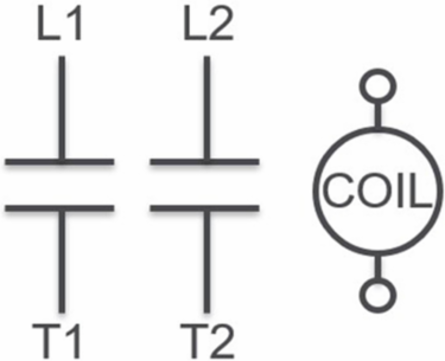

Pole Contact Composition	2 NO
Product Or Component Type	Definite Purpose Contactor
Range Of Product	DP
Sustainable Packaging	Yes
[Ue] Rated Operational Voltage	600 V AC
Package Weight(Lbs)	285.763 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	UL Recognized, CSA
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Phase	1 phase
Product Availability	Stock - Normally stocked in distribution facility
Provided Equipment	terminal cover
Returnability	Yes
[Uc] Control Circuit Voltage	120 V AC 60 Hz110 V AC 50 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
