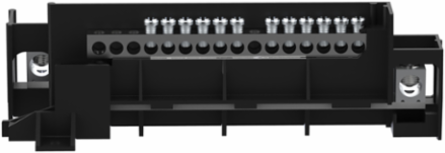

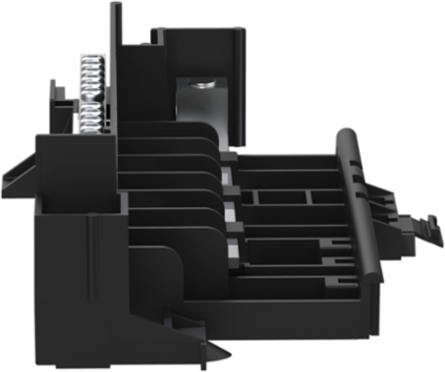

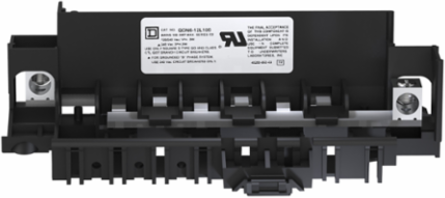

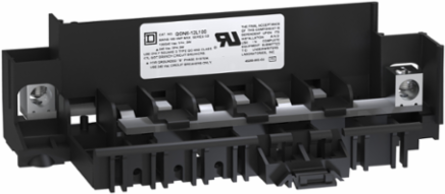

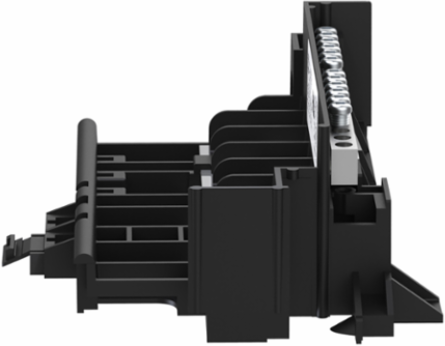

Schneider Electric QON612L100 Load center accessory, QO, mounting base, 1 phase, 6 spaces, 100A main lugs, OEM
Schneider Electric QON612L100 Load center accessory, QO, mounting base, 1 phase, 6 spaces, 100A main lugs, OEM
- MPN: QON612L100
- UPC: 785901805618
- PPN: SCH-QON612L100
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$254.78/ EA
Description
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 100A 240 VAC single phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 6 spaces. This mounting base will accept only QO plug on circuit breakers. The lugs will accept a wire range of 8 AWG to 1/0 AWG copper or aluminum wire. QO OEM bases is UL component recognized.
Specifications
Specifications
- Short-Circuit Current
- 10 kA
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Product Or Component Type
- mounting base
- Loadcentre Type
- Main lugs
Range Of ProductQO
[In] Rated Current100 A
Number Of Spaces6
Network Number Of Phases1 phase
Complementary
- Product Certifications
- UL || CSA
- Awg Gauge
- AWG 8...AWG 1/0 aluminum/copper
- Wiring Configuration
- 3-wire
- Net Weight
- 0.200 kg
Height133 mm
Width204 mm
Depth95 mm
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2101006
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
