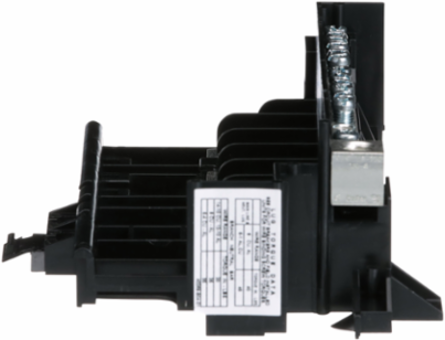

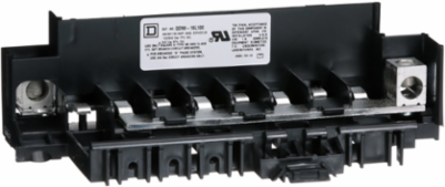

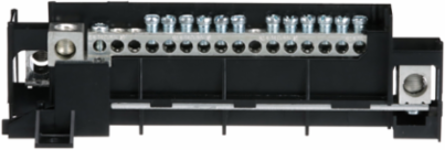

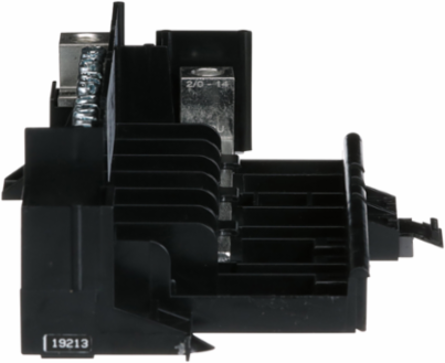

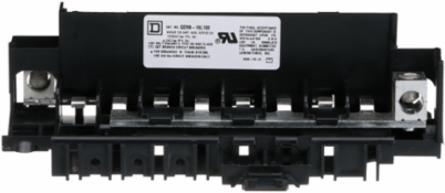

Schneider Electric QON816L100 QO Load Center Mounting Base 1 Phase 8 Spaces 100A

QO Load Center Mounting Base 1 Phase 8 Spaces 100A - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/f1d536a8a0833c04e10b97bf72cda27117c940bc-medium.png

QO Load Center Mounting Base 1 Phase 8 Spaces 100A - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/e48687c528235c930afa9a20677aa730a0945da9-medium.png

QO Load Center Mounting Base 1 Phase 8 Spaces 100A - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/13b668d0ac5631b09ae549840553374713f463a4-medium.png

QO Load Center Mounting Base 1 Phase 8 Spaces 100A - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/66ef76c6075ee9f731c6e5208fa7f8e367ac01c8-medium.png

QO Load Center Mounting Base 1 Phase 8 Spaces 100A

Schneider Electric QON816L100 QO Load Center Mounting Base 1 Phase 8 Spaces 100A

MPN: QON816L100
UPC: 785901804499
PPN: SCH-QON816L100

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$316.77/ EA

Qty:

Loading add to cart quantity...

Description

QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 100A 120/240 VAC 1 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 8 spaces. This mounting base will accept only QO plug on circuit breakers. The QON mounting base is UL component recognized.

Specifications

Rated Current: 100 A

Short-Circuit Current Rating: 10 kA

Network Number of Phases: 1 phase

Wire Size: AWG 8 to AWG 1/0 aluminum/copper

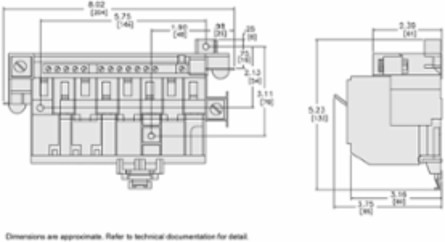

Width: 204 mm

Net Weight: 0.500 kg

Product Type: Mounting base

China RoHS: Pro-active declaration (out of legal scope)

EU RoHS Directive: Compliant

Mercury Free: Yes

Product Certifications: UL, CSA

Environmental Disclosure: ENVPEP2101006

Voltage Rating120/240 V AC

Number of Spaces8

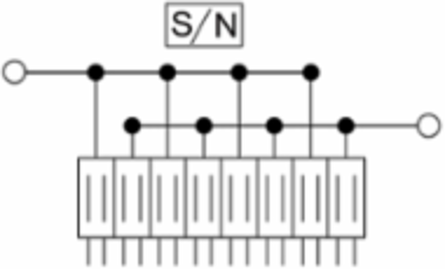

Wiring Configuration3-wire

Height133 mm

Depth95 mm

MaterialN/A

Loadcentre TypeMain lugs

RoHS Exemption InformationYes

REACH SVHCFree of SVHC above threshold

Toxic Heavy Metal FreeYes

Sustainable Offer StatusGreen Premium product

Range of ProductQO
