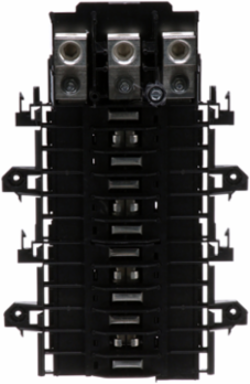

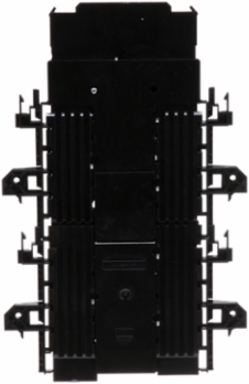

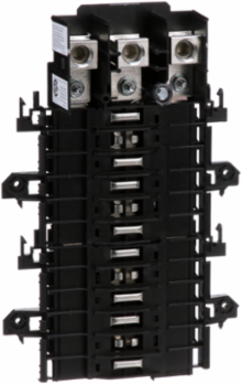

Schneider Electric QON324L200 Load center accessory, QO, mounting base, 3 phase, 24 spaces, 200A main lugs, OEM

Load center accessory, QO, mounting base, 3 phase, 24 spaces, 200A main lugs, OEM
Load center accessory, QO, mounting base, 3 phase, 24 spaces, 200A main lugs, OEM
Load center accessory, QO, mounting base, 3 phase, 24 spaces, 200A main lugs, OEM
Load center accessory, QO, mounting base, 3 phase, 24 spaces, 200A main lugs, OEM
Load center accessory, QO, mounting base, 3 phase, 24 spaces, 200A main lugs, OEM
  • MPN: QON324L200
  • UPC: 785901851080
  • PPN: SCH-QON324L200

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$725.85/ EA

Description

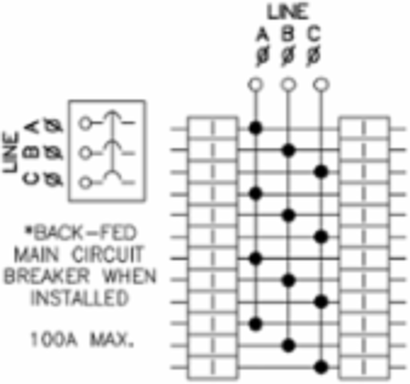

QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 200A 240 VAC 3 phase 4 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 24 spaces. This mounting base will accept only QO plug on circuit breakers. The QON mounting base is UL component recognized.

Specifications

Specifications

Short-Circuit Current
10 kA
[Ue] Rated Operational Voltage
120/240 V AC
Product Or Component Type
mounting base
Loadcentre Type
Main lugs
Range Of ProductQO
[In] Rated Current200 A
Number Of Spaces24
Network Number Of Phases3 phases

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2101006
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes

Complementary

Product Certifications
CSA || UL listed
Awg Gauge
AWG 4...300 kcmil aluminum/copper
Wiring Configuration
3-wire
Net Weight
1.461 kg

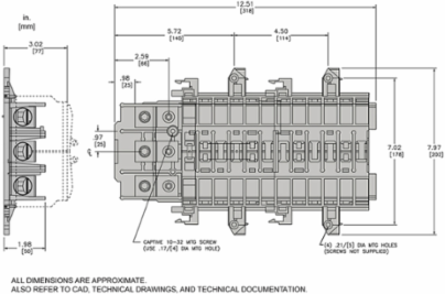

Height318 mm
Width202 mm
Depth77 mm
