Schneider Electric XB4BW34B55 Illuminated push button, Harmony XB4, metal, red flush, 22mm, universal LED, plain lens, 1 NO + 1 NC, 24V AC DC, push in

  • MPN: XB4BW34B55
  • PPN: SCH-XB4BW34B55

CAD

$78.58

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

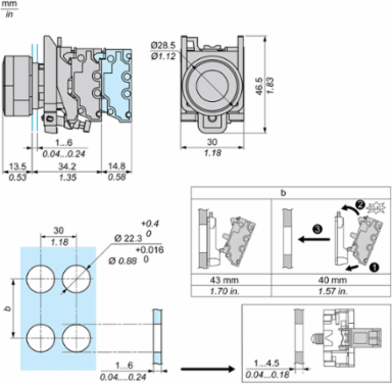

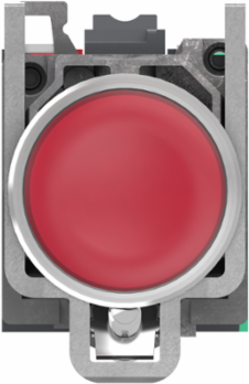

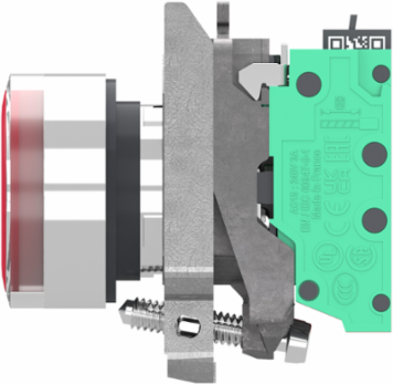

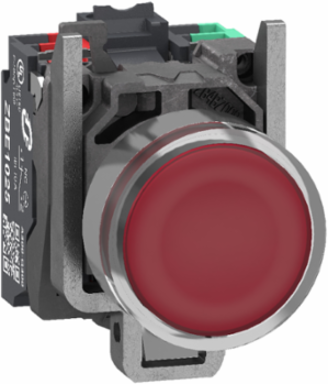

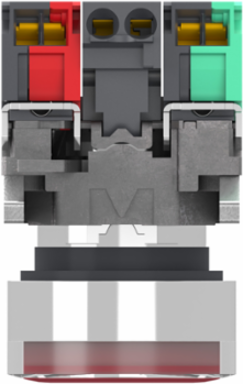

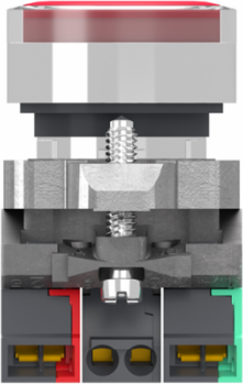

This Harmony XB4 illuminated red flush push button operates with a spring return mechanism, is supplied with 24V AC DC, and uses a universal LED. It has a chromium-plated metal bezel and a zamak fixing collar. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. The XB4BW33B55 pushbutton is equipped with 1 normally open (NO) and 1 normally closed (NC) contact, featuring a slow break operation. This product is made from metal, it weighs 92g. It is impact-resistant, dust-resistant, water resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This product meets many standards, including UL 508, IEC 60947-5-5, IEC 60947-5-1, IEC 60947-5-4 standards, and certifications such as BV, GL, CSA, LROS (Lloyds register of shipping), DNV and UL listed. Legend holders, marked or unmarked legends for this pushbutton can be purchased separately. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
France
Depth48.2 mm

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Customizable
no, 1
Supply Voltage Limits
20.4-26.4 V DC, 20.4-26.4 V AC
[Us] Rated Supply Voltage
24 V, 24 V AC/DC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]
0.0150363353, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0 kg CO2 eq., 0.0138196491
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
0.4 kg CO2 eq., 0.3606198475
Local Publishable Date
2026-01-12
Return Indicator
Y
Stock Policy
2
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Bulb Base
integral LED
Contact Operation
slow-break
Contacts Type And Composition
1 NO + 1 NC
Current Consumption
15 mA
Electrical Shock Protection Class
class I conforming to IEC 60536
Fixing Collar Material
zamak
Light Source
universal LED
Mounting Diameter
22.5 mm
Operating Travel
1.217 mm NC changing electrical state)2.05 mm NO changing electrical state)4.3 mm total travel)
Operator Profile
red flush
Product Availability
Non-Stock - Not normally stocked in distribution facility
Protective Treatment
TH
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Resistance To Fast Transients
2 kV IEC 61000-4-4
Returnability
Yes
Service Life
100000 h at rated voltage and 25 °C
Signalling Type
steady
Sustainable Packaging
No
Type Of Operator
spring return
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal
30 mm
[Ith] Conventional Free Air Thermal Current
10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Connections - Terminals
push-in, = 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8536509035
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate AgencyEAC, IECEE CB Scheme, CCC, UL, CSA

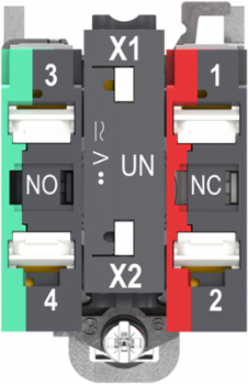

Terminals Description Iso N°1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1566025341, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.7 kg CO2 eq., 0.7074461988
Local Data StatusPublishable
Pre Comm Date2024-05-23
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1808008EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialchromium plated metal
Compatibility CodeXB4
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Device Short NameXB4
Electromagnetic Emissionclass B IEC 55011
Head Typestandard
Mechanical Durability10000000 cycles
Operating Force2.25 N NC changing electrical state2.45 N NO changing electrical state
Operator Additional Informationwith plain lens
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typeilluminated push-button
Range Of ProductHarmony XB4
Resistance To Electrostatic Discharge4 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP1808008EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Height Nominal47 mm
[Ie] Rated Operational Current6 A 120 V, AC-15, A300 IEC 60947-5-13 A 240 V, AC-15, A300 IEC 60947-5-10.55 A 125 V, DC-13, Q300 IEC 60947-5-10.27 A 250 V, DC-13, Q300 IEC 60947-5-1
[Ui] Rated Insulation Voltage300 V 3)IEC 60947-1
Cap/Operator Or Lens Colourred
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)82.000 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Ip Degree Of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Take Back
No
China Rohs Regulation
X
Carbon Footprint
1.2535245649
Environmental Disclosure
ENVPEP1808008EN
Packaging Made With Recycled Cardboard
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1808008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
illuminated push-button
Range Of ProductHarmony XB4
