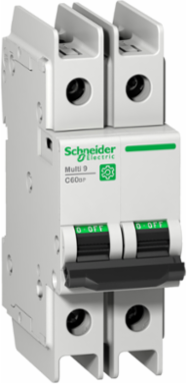

Schneider Electric M9F43225 Miniature Circuit Breaker 2P 25A D Curve 10kA DIN Rail Mount
- MPN: M9F43225
- PPN: SCH-M9F43225
CAD
$100.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Miniature Circuit Breaker 2P 25A D Curve 10kA DIN Rail Mount
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth72 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length14 mm for top or bottom connection
Complementary Attributes
- Line Rated Current
- 25 A 25 °C EN/IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Magnetic Tripping Limit
- 12 x In +/- 20 % AC, 17 x In +/- 20 % DC
- Certificate Agency
- IEC, CCC, CSA, UL
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 440 V AC 50/60 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03541946686550111, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.011492817960685192
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 37 kg CO2 eq., 36.62323076923077
- Local Publishable Date
- 2024-05-22
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1645
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Connection Pitch
- 18 mm between phases
- Control Type
- toggle
- Device Application
- distribution
- Electrical Durability
- 10000 cycles
- Local Signalling
- ON/OFF indication
- Mounting Mode
- clip-on
- Number Of Poles
- 2P
- Poles Description
- 2P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- miniature circuit-breaker
- Range
- Multi9
- Returnability
- Yes
- Suitability For Isolation
- yes EN/IEC 60947-2
- Tightening Torque
- 2.5-2.5 N.m top or bottom
- Total Power Losses
- 6.8 W
- Tropicalisation
- 2 IEC 60068-1
- Rated Current 3
- 25 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 89.352
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 103 mm
- [Ui] Rated Insulation Voltage
- 500 V AC EN/IEC 60947-2
- Earth-leakage Protection
- without
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Network TypeAC, DC
[Ics] Rated Service Breaking Capacity7.5 kA 75 % GB/T 14048.2 - 415 V AC, 15 kA 75 % GB/T 14048.2 - 240 V AC, 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC, 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC, 15 kA 75 % EN/IEC 60947-2 - 240 V AC, 4.5 kA 75 % GB/T 14048.2 - 440 V AC
Connections - Terminalstunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid, tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule, tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7107142194710894, 0.7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.7328517511211006
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Contact Position Indicatoryes
Curve CodeD
Device Short NameC60BP
Energy Efficiency OptimizedFalse
Mechanical Durability20000 cycles
Mounting SupportDIN rail
Number Of Protected Poles2
Power Losses Per Pole3.4 W
Product NameMulti9 C60
Provision For Padlockingpadlockable
Range Of ProductMulti9
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint39 kg CO2 eq.
Trip Unit Technologythermal-magnetic
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1304004EN
Pep Verification Date2023-03-02
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; BG
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %56
Width Nominal36 mm
[Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)247.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- No
- 9 Mm Pitches
- 4
- Environmental Disclosure
- ENVPEP1304004EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1304004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ip Degree Of ProtectionIP20 conforming to IEC 60529, IP40 (modular enclosure) conforming to IEC 60529
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Mercury FreeYes
Carbon Footprint39.18230237328311
Ambient Air Temperature For Operation-30-70 °C-30-70 °C
Eu Rohs DirectiveCompliant
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 55-55 °C
Pep Verification Date2023-03-02
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
