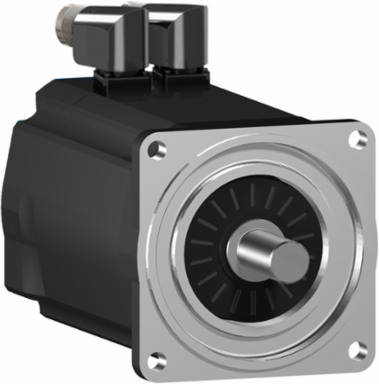

Schneider Electric SH31003P11F2100 Servo Motor 8Nm, 6000 RPM, IP65, 3-Phase
Schneider Electric SH31003P11F2100 Servo Motor 8Nm, 6000 RPM, IP65, 3-Phase
- MPN: SH31003P11F2100
- PPN: SCH-SH31003P11F2100
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for optimal performance, the Schneider Electric SH31003P11F2100 Servo Motor is a robust solution for motion control applications. With a torque rating of 8Nm and an impressive speed of 6000 RPM, this 3-phase motor provides the power and responsiveness required in demanding automation scenarios. Its IP65 rating ensures reliable operation even in challenging environments, making it an ideal choice for industrial settings where durability and precision are paramount. This servo motor exemplifies Schneider Electric's commitment to innovation in automation and control technology, catering to the needs of sophisticated motion control systems.
Specifications
- Continuous Stall Torque
- 8 N.m
- Nominal Torque
- 5.1 N.m (480 V three phase), 7.5 N.m (115 V single phase), 7 N.m (230 V single phase), 5.7 N.m (400 V three phase)
- Continuous Power
- 2400 W
- Nominal Speed
- 1000 rpm (115 V single phase), 2000 rpm (230 V single phase), 4000 rpm (400 V three phase), 4800 rpm (480 V three phase)
- Continuous Stall Current
- 6.6 A
- Back EMF Constant
- 77 V/krpm (20 °C)
- Maximum Radial Force
- 1050 N (1000 rpm), 830 N (2000 rpm), 730 N (3000 rpm), 660 N (4000 rpm)
- Length
- 271.5 mm (10.69 in)
- Shaft Diameter
- 19 mm (0.75 in)
- Key Width
- 6 mm (0.24 in)
- Mounting Holes Diameter
- 9.0 mm (0.35 in)
- Centring Collar Diameter
- 95 mm (3.74 in)
- Net Weight
- 8 kg (17.64 lb)
- Encoder Type
- Absolute single turn SinCos Hiperface
- Electrical Connection
- Straight connector
- IP Rating
- IP65 (motor and shaft bushing IEC 60034-5)
- Range Compatibility
- PacDrive 3
- Device Short Name
- SH3.....P
- RoHS Compliance
- Yes
- Mercury Free
- Yes
- Warranty
- 18 months
- Environmental Disclosure
- ENVPEP111049EN
- Reach Regulation
- Contains SVHC above threshold
Peak Stall Torque28.3 N.m (115...480 V three phase)
Nominal Output Power790 W (115 V single phase), 1470 W (230 V single phase), 2390 W (400 V three phase), 2560 W (480 V three phase)
Maximum Mechanical Speed6000 rpm
Maximum Current Irms28.3 A
Torque Constant1.22 N.m/A (120 °C)
Number Of Motor Poles4
Maximum Axial Force160 N
Motor Flange Size100 mm (3.94 in)
Shaft Length40 mm (1.57 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes115 mm (4.53 in)
Centring Collar Depth3.5 mm (0.14 in)
Materialparallel key shaft end
Holding Brakewith, 9 N.m holding torque
Type Of CoolingNatural convection
PhaseThree phase
Product Or Component Typeservo motor
China Rohs RegulationX
PVC FreeYes
Weee DisposalEU market compliant
Sustainable Offer StatusGreen Premium product
Rohs Exemption InformationYes
