Surge protective device, Surgelogic, SPDE, 50kA, 120/240V, 1 phase, 3 wire, SPD type 1, NEMA 4X, audible alarm
Surge protective device, Surgelogic, SPDE, 50kA, 120/240V, 1 phase, 3 wire, SPD type 1, NEMA 4X, audible alarm
Square D

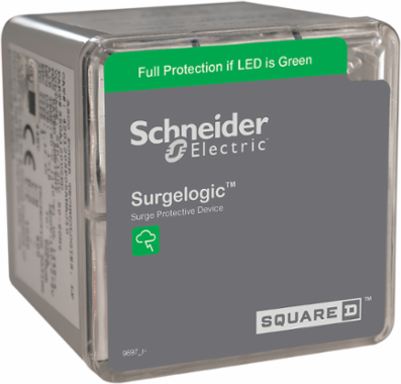

Square D SPDE1A Surge protective device, Surgelogic, SPDE, 50kA, 120/240V, 1 phase, 3 wire, SPD type 1, NEMA 4X, audible alarm

  • MPN: SPDE1A
  • UPC: 047569001383
  • PPN: SCH-SPDE1A

CAD

$2050.83

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Surgelogic SPDE surge protective devices add neutral to ground (N-G) protection. The SPDE can also be mounted on a DIN Rail with the included mounting bracket. With a surge current rating of 50,000 Amps. Designed for 120/240VAC single phase systems. This product is UL and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
Depth85.99 mm

Physical Attributes

Cable Length
.93 m, .93 m

Important Information Attributes

Noise Level
-27 dB, -27 dB
Certificate Agency
UL 1449:ed. 5, CSA C22.2 No 269.1
Local Publishable Date
2025-11-13
Stocking Flag
Y
Weee Scope
In
Scope Perimeter
Outside of Europe
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2534
China Rohs In Scope
No
Without Single Use Plastic
No
Product Kit Identifier
N
Enclosure Material
polycarbonate
Frequency Measurement Range
47-63 Hz
Nominal Discharge Current
20 kA
Product Availability
Stock - Normally stocked in distribution facility
Range Of Product
Surgelogic
Sustainable Packaging
No
Height Nominal
83.82 mm
[Iimp] Impulse Current
5 kA
[Ue] Rated Operational Voltage
120/240 V AC
Short-circuit Protection
200 kA
Package Weight(Lbs)
907 g
Warranty (In Months)
18
Provided Equipmentalarm enable/disable switch, dry contacts
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameSPDE
Energy Efficiency OptimizedFalse
Local Signallingstatus LED green per phase normal operationstatus LED red per phase fault
Phase1 phase
Product Or Component Typesurge protection device
ReturnabilityYes
Wiring Configuration3-wire
Width Nominal85.99 mm
[Uc] Maximum Continuous Operating Voltage150 V
Connections - Terminalswire 14 AWG
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536308000

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-40-60 °C, -40-60 °C
Recycled Metal Content At Cr Level
0 %
Eu Rohs Directive
Compliant By Exemption
Operating Altitude
0...12000 ft
Packaging Without Single Use Plastic
No
Relative Humidity
0-95 %
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Take BackNo
Mercury FreeYes
Nema Degree Of ProtectionNEMA 4X
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold

General Attributes

Provided Equipment
alarm enable/disable switch, dry contacts
Product Or Component Type
surge protection device
Phase1 phase
Range Of ProductSurgelogic

Surge Protection And Filtering Attributes

Surge Current
50 kA

Input Attributes

Input Voltage
700 V L-N1200 V L - G600 V N - G, 1200 V L-L
