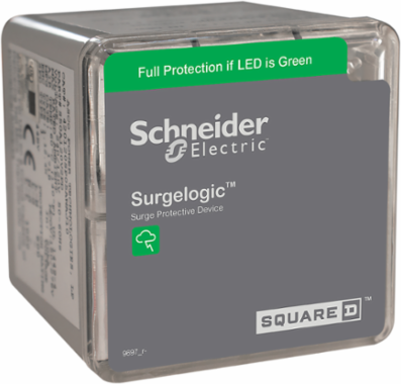

Square D SPDE9A Surge protective device, Surgelogic, SPDE, 50kA, 600Y/347V, 3 phase, 4 wire, SPD type 1, NEMA 4X, audible alarm
- MPN: SPDE9A
- UPC: 047569001468
- PPN: SCH-SPDE9A
CAD
$2050.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surgelogic SPDE surge protective devices add neutral to ground (N-G) protection. The SPDE can also be mounted on a DIN Rail with the included mounting bracket. With a surge current rating of 50,000 Amps. Designed for 600VAC delta three phase systems. This product is UL and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth85.99 mm
Physical Attributes
- Cable Length
- .93 m, .93 m
Important Information Attributes
- Noise Level
- -27 dB, -27 dB
- Certificate Agency
- UL 1449:ed. 5, CSA C22.2 No 269.1
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Enclosure Material
- polycarbonate
- Frequency Measurement Range
- 47-63 Hz
- Nominal Discharge Current
- 20 kA
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Surgelogic
- Sustainable Packaging
- No
- Height Nominal
- 83.82 mm
- [Iimp] Impulse Current
- 5 kA
- [Ue] Rated Operational Voltage
- 600 V delta AC
- Short-circuit Protection
- 200 kA
- Package Weight(Lbs)
- 907 g
- Warranty (In Months)
- 18
Provided Equipmentalarm enable/disable switch, dry contacts
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameSPDE
Energy Efficiency OptimizedFalse
Local Signallingstatus LED green per phase normal operationstatus LED red per phase fault
Phase3 phase
Product Or Component Typesurge protection device
ReturnabilityNo
Wiring Configuration3-wire
Width Nominal85.99 mm
[Uc] Maximum Continuous Operating Voltage690 V
Connections - Terminalswire 14 AWG
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536308000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-60 °C, -40-60 °C
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...12000 ft
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 %
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Take BackNo
Mercury FreeYes
Nema Degree Of ProtectionNEMA 4X
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Provided Equipment
- alarm enable/disable switch, dry contacts
- Product Or Component Type
- surge protection device
Phase3 phase
Range Of ProductSurgelogic
Surge Protection And Filtering Attributes
- Surge Current
- 50 kA
Input Attributes
- Input Voltage
- 2500 V L - G, 2500 V L-L
