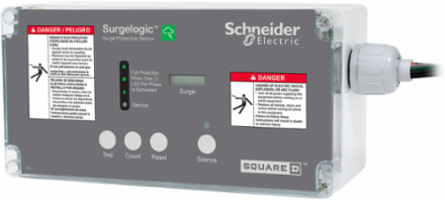

Square D HWC83 Surge protective device, Surgelogic, 300kA, HWC, 600Y/347V, 3 phase, 4 wire, SPD type 2, NEMA 4X
- MPN: HWC83
- UPC: 047569001079
- PPN: SCH-HWC83
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surgelogic™ Type HWC systems are externally mounted surge protection devices. Designed for external installation, the device enables convenient access for retrofitting and maintenance without requiring modifications to internal panel configurations. External mounting limits fault impact on internal equipment, enhancing reliability. With a surge current rating of 300,000 Amps and Indoor/Outdoor. Includes a Surge counter that tracks the number of surge events handled by the SPD. Rated for 600Y/347VAC three phase systems. This product is UL and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth102 mm
Physical Attributes
- Cable Length
- .61 m, .61 m
Important Information Attributes
- Noise Level
- -53 dB, -53 dB
- Certificate Agency
- UL 1449:ed. 5, CSA C22.2 No 269.1, UL 96A
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Enclosure Material
- polycarbonate
- Frequency Measurement Range
- 47-63 Hz
- Nominal Discharge Current
- 20 kA
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Surgelogic
- Sustainable Packaging
- No
- Height Nominal
- 124 mm
- [Iimp] Impulse Current
- 10 kA
- [Ue] Rated Operational Voltage
- 600Y/347 V AC
- Short-circuit Protection
- 200 kA
- Package Weight(Lbs)
- 2.495 kg
- Warranty (In Months)
- 18
Provided Equipmentalarm enable/disable switch, surge counterdry contacts with integrated switch for off/on/automatic
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category4
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameHWC
Energy Efficiency OptimizedFalse
Local Signallingstatus LED green per phase normal operationstatus LED red per phase fault
Phase3 phase
Product Or Component Typesurge protection device
ReturnabilityNo
Wiring Configuration4-wire
Width Nominal244 mm
[Uc] Maximum Continuous Operating Voltage420 V
Connections - Terminalswire 10 AWG
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536308000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-65 °C, -40-65 °C
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...12000 ft
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 %
Ambient Air Temperature For Operation-35-85 °C, -35-85 °C
Take BackNo
Mercury FreeYes
Nema Degree Of ProtectionNEMA 4X
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Provided Equipment
- alarm enable/disable switch, surge counterdry contacts with integrated switch for off/on/automatic
- Product Or Component Type
- surge protection device
Phase3 phase
Range Of ProductSurgelogic
Surge Protection And Filtering Attributes
- Surge Current
- 300 kA
Input Attributes
- Input Voltage
- 1500 V L-N, 1500 V L - G, 1500 V N - G2500 V L-L
