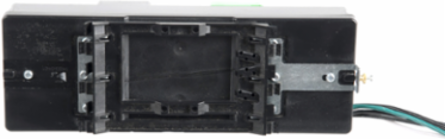

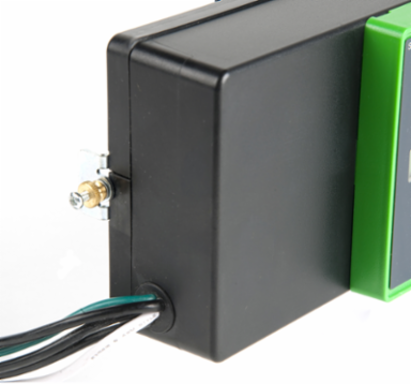

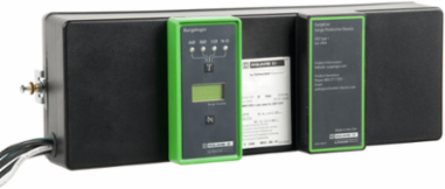

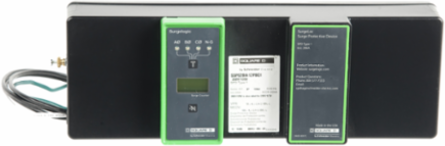

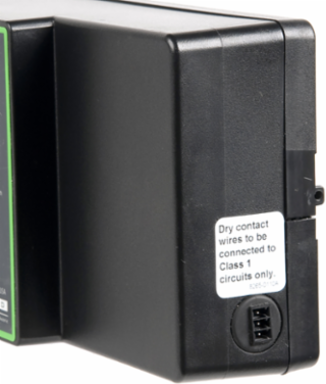

Square D SSP01SBA20D Surge protection device, Surgelogic, Surgeloc, 200kA, 120/240VAC, 1 phase, 3 wire, SPD type 1
- MPN: SSP01SBA20D
- UPC: 785901775157
- PPN: SCH-SSP01SBA20D
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Surgelogic™ Type IMA systems are internal surgical protection devices with a focus on service entrance and critical branch panel surge suppresion. Being the industry's first field installable internally mounted SPDs in NQ panelboards, this unit is able to provide a surge current rating of 200,000 Amps.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Surgelogic
Product Or Component Typesurge protection device
Complementary
- Input Voltage
- 600 V N - G || 700 V L-N || 700 V L - G || 1000 V L - L
- Short-Circuit Protection
- 200 kA
- Surge Current
- 200 kA per phase
- Width
- 454.66 mm
- Type Of Packing
- box
- Net Weight
- 3.67 kg
Height111.76 mm
[Uc] Maximum Continuous Operating Voltage150 V
Wiring Configuration3-wire
Depth175.26 mm
Network Number Of Phases1 phase
[Ue] Rated Operational Voltage120/240 V AC
Offer Sustainability
- Eu Rohs Directive
- Not compliant
Environment
- Nema Degree Of Protection
- NEMA 1
