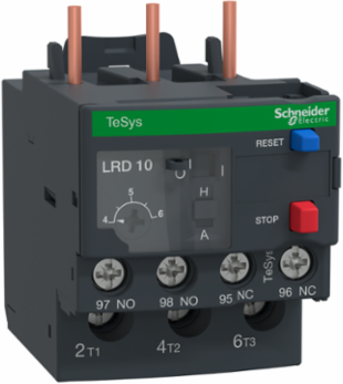

Schneider Electric LRD106 TeSys Deca Thermal Overload Relay 4-6A Class 10A Auxiliary Contacts 1NO+1NC
- MPN: LRD106
- PPN: SCH-LRD106
CAD
$137.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys LRD thermal overload relay, 6A/690V, thermal setting range 4-6A, tripping class 10A, for protection of 3-phase motors 2.2kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Features
- Featuring an integrated adjustment dial, this thermal overload relay allows for precise current setting within the 4 to 6 Amp range. This allows industrial technicians to dial in the exact Full Load Amps (FLA) of their motor, providing a customized protection envelope that prevents motor burnout without causing premature tripping during standard operation.
- Engineered for seamless integration, this relay is designed to mount directly beneath Schneider Electric TeSys D contactors (specifically models LC1D09 through LC1D38). This direct-link architecture eliminates the need for extra wiring and DIN rail space, creating a compact, vibration-resistant motor starter assembly that simplifies control panel layout and speeds up installation time.
- Equipped with a blue "Reset" button and a red "Stop" button, this unit offers flexible control over fault recovery, allowing you to choose between manual intervention or automatic system restart. The built-in test function simulates a trip to verify the internal mechanism and auxiliary contact integrity, ensuring your safety circuits are fully operational before a real-world fault occurs.
- Built to operate consistently across a wide temperature spectrum, the LRD106 features internal compensation that prevents "nuisance tripping" caused by high ambient heat within the electrical cabinet. This thermal stability ensures that the relay only reacts to actual motor overcurrent conditions, maintaining high levels of uptime for your conveyor systems and ventilation fans even in demanding environments.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- Thermal Overload Class
- Class 10A IEC 60947-4-1
- Permissible Current
- 3 A 120 V AC-15 signalling circuit, 0.22 A 125 V DC-13 signalling circuit
- Connection Pitch
- 14.5 mm
- Height
- 66 mm
- Net Weight
- 0.124 kg
- Mounting Support
- Plate or DIN rail with specific accessories, under contactor
- Material
- Not specified
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- IP Degree of Protection
- IP20 IEC 60529
- Ambient Air Temperature for Storage
- -60 to 70 °C
- Product Certification
- IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, Lloyds Register, ATEX INERIS, UKCA
Thermal Protection Adjustment Range4-6 A
Tripping Current Threshold1.14 ± 0.06 x Ir IEC 60947-4-1
Phase Failure SensitivityTripping at 130% of Ir on two phases with the last one at 0
Width45 mm
Depth70 mm
Connection TypeScrew clamp terminals
Tightening TorqueControl circuit 1.7 N.m screw clamp terminals, power circuit 2.3 N.m lugs-ring terminals M4
Flame RetardanceV1 UL 94
Rated Insulation Voltage600 V CSA/UL, 690 V IEC 60947-4-1 power circuit
Ambient Air Temperature for Operation-20 to 60 °C without derating IEC 60947-4-1
StandardsIEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, CSA 22.2 No 60947-4-1
Country of OriginFrance (FR)
