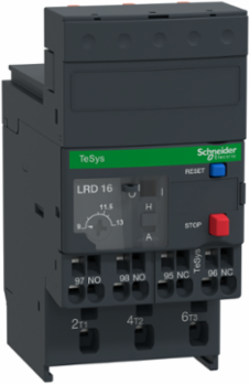

Schneider Electric LRD163 TeSys Deca Thermal Overload Relay, 9-13A, 1NO+1NC, Class 10A, IP20
- MPN: LRD163
- PPN: SCH-LRD163
CAD
$90.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys LRD thermal overload relay, 13A/690V, thermal setting range 9-13A, tripping class 10A, for protection of 3-phase motors 5.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D12-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
- Network Type
- DC || AC
- Relay Application
- motor protection
- Product Name
- TeSys LRD || TeSys Deca
- Range
- TeSys || TeSys Deca
- Product Compatibility
- LC1D18 || LC1D12 || LC1D32 || LC1D25 || LC1D38
Thermal Protection Adjustment Range9-13 A
Product Or Component Typedifferential thermal overload relay
Thermal Overload Classclass 10A IEC 60947-4-1
[Ui] Rated Insulation Voltagepower circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Device Short NameLRD
Complementary
- Network Frequency
- 0...400 Hz
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- Connections - Terminals
- control circuit spring terminals 1 1-2.5 mm² solid without cable end || control circuit spring terminals 1 1-2.5 mm² flexible without cable end || power circuit spring terminals 1 1.5-4 mm² flexible without cable end || power circuit spring terminals 1 1.5-4 mm² flexible with cable end
- [Ue] Rated Operational Voltage
- 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- Net Weight
- 0.14 kg
- Permissible Current
- 3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
- Control Type
- red push-button stop || blue push-button reset
- Width
- 45 mm
- Temperature Compensation
- -20-60 °C
Height93 mm
Auxiliary Contact Composition1 NO + 1 NC
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Associated Fuse Rating4 A gG for signalling circuit || 4 A BS for signalling circuit
[Uimp] Rated Impulse Withstand Voltage6 kV
Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
Mounting Supportplate, with specific accessories || rail, with specific accessories || under contactor
Depth72 mm
Environment
- Product Certifications
- IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495
- Ambient Air Temperature For Operation
- -20-60 °C without derating IEC 60947-4-1
- Ip Degree Of Protection
- IP20 IEC 60529
- Ambient Air Temperature For Storage
- -60-70 °C
Mechanical Robustnessvibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Climatic WithstandIACS E10
Dielectric Strength1.89 kV 50 Hz IEC 60947-1
Flame RetardanceV1 UL 94
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP080405EN
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI0804005_V1
