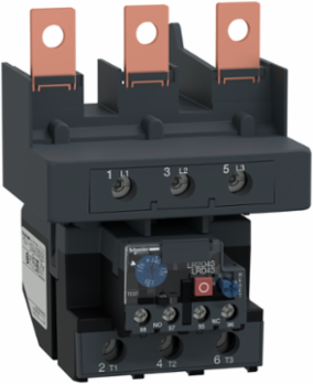

Schneider Electric LRD4369 TeSys Deca Thermal Overload Relay 110-140A, Class 10A, IP20
- MPN: LRD4369
- PPN: SCH-LRD4369
CAD
$482.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
LRD4369 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 63kW@400V thanks to a thermal range 110-140A, a tripping class 10A and phase unbalance protection. LRD4369 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 110-140A, a tripping class 10A and phase unbalance detection, it protects motors 63kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D150 to form a compact starter. Light and compact, 120mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States
Depth132 mm
Important Information Attributes
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mechanical Robustness
- vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7
- Network Type
- DC, AC
- Product Name
- TeSys LRD, TeSys Deca
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals, power circuit 9 N.m screw clamp terminals
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, power circuit screw clamp terminals 1 4-50 mm² flexible without cable end, power circuit screw clamp terminals 1 4-50 mm² solid without cable endpower circuit screw clamp terminals 1 4-35 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.27838705834534
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 4.307051633048097
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1101001
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2023
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- LRD
- Dielectric Strength
- 2.2 kV 50 Hz IEC 60947-1
- Network Frequency
- 0...400 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Thermal Protection Adjustment Range
- 110-140 A
- Tripping Threshold
- 1.14 +/- 0.06 Ir IEC 60947-4-1
- R Thermal Protection Adj Range
- 110-140 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential, In %
- 63
- [Ue] Rated Operational Voltage
- 1000 V AC 0...400 Hz power circuit IEC 60947-4-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Package Weight(Lbs)
- 833.000 g
- Warranty (In Months)
- 18
Control TypeRed push-button stop, Blue push-button reset
Mounting Supportplate, with specific accessories, rail, with specific accessories, under contactor
Permissible Current0.06 A 440 V DC-13 signalling circuit, 0.12 A 600 V AC-15 signalling circuit
Temperature Compensation-20-60 °C, -20-60 °C
Certificate AgencyIEC, CCC, EAC, ATEX INERIS
Carbon Footprint Of The Distribution Phase [A4]0.1629670778492666, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.08725297105804806, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]2 kg CO2 eq., 1.896335784006568
Local Publishable Date2026-03-26
Stocking FlagN
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Device Short NameLRD
Flame RetardanceV1 conforming to UL 94
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Typedifferential thermal overload relay
Relay Applicationmotor protection
Software Versionv6.1
Thermal Overload Classclass 10A IEC 60947-4-1
Total Lifecycle Carbon Footprint8 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1101001EN
Pep Verification Date2025-11-10
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
[Ith] Conventional Free Air Thermal Current5 A signalling circuit
[Ui] Rated Insulation Voltagepower circuit 1000 V IEC 60947-4-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 7.73199452430732
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- LC1D150
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1101001
Environmental DisclosureENVPEP1101001EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP1101001EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- differential thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
