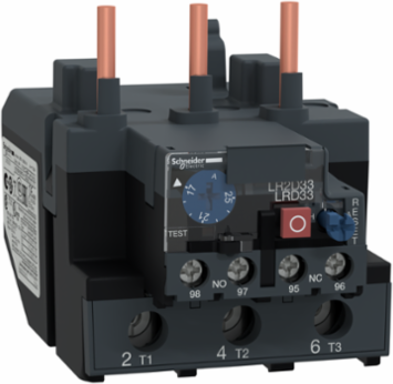

Schneider Electric LRD3322 TeSys Deca Thermal Overload Relay 17-25A Class 10A
Schneider Electric LRD3322 TeSys Deca Thermal Overload Relay 17-25A Class 10A
- MPN: LRD3322
- PPN: SCH-LRD3322
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$205.48/ EA
Description
TeSys LRD thermal overload relay, 25A/690V, thermal setting range 17-25A, tripping class 10A, for protection of 3-phase motors 11kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Specifications
Environment
- Product Certifications
- IEC || UL || CSA || CCC || EAC || ATEX INERIS || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495
- Ambient Air Temperature For Operation
- -20-60 °C without derating IEC 60947-4-1
- Ip Degree Of Protection
- IP20 IEC 60529
- Ambient Air Temperature For Storage
- -60-70 °C
Mechanical Robustnessvibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Climatic WithstandIACS E10
Dielectric Strength2.2 kV 50 Hz IEC 60947-1
Flame RetardanceV1 UL 94
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110101EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1101001
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Network Frequency
- 0...400 Hz
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- Connections - Terminals
- power circuit screw clamp terminals 1 4-35 mm² flexible without cable end || power circuit screw clamp terminals 1 4-35 mm² flexible with cable end || power circuit screw clamp terminals 1 4-35 mm² solid without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end
- [Ue] Rated Operational Voltage
- 1000 V AC 0...400 Hz power circuit IEC 60947-4-1
- Net Weight
- 0.51 kg
- Permissible Current
- 0.72 A 500 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals || power circuit 9 N.m screw clamp terminals
- Mounting Support
- plate, with specific accessories || rail, with specific accessories || under contactor
- Depth
- 115 mm
Height81 mm
Auxiliary Contact Composition1 NO + 1 NC
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Associated Fuse Rating4 A gG for signalling circuit || 4 A BS for signalling circuit
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
Control Typered push-button stop || blue push-button reset
Width70 mm
Temperature Compensation-20-60 °C
Specifications
- Network Type
- DC || AC
- Relay Application
- motor protection
- Product Name
- TeSys LRD || TeSys Deca
- Range
- TeSys
- Product Compatibility
- LC1D80 || LC1D95
Thermal Protection Adjustment Range17-25 A
Product Or Component Typedifferential thermal overload relay
Thermal Overload Classclass 10A IEC 60947-4-1
[Ui] Rated Insulation Voltagepower circuit 1000 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL
Device Short NameLRD
