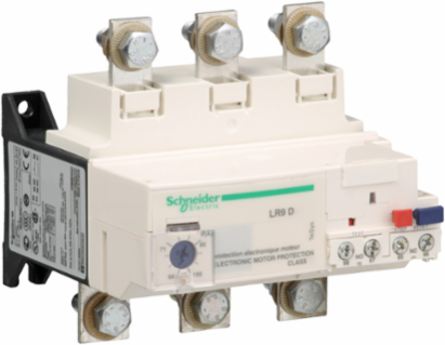

Schneider Electric LR9D5367 TeSys Deca Thermal Overload Relay 60-100A Class 10

MPN: LR9D5367
PPN: SCH-LR9D5367
UNSPSC: 39122330

$517.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

LR9D5367 is a TeSys LR9D electronic overload relay from Schneider Electric to be used with a TeSys D contactor. With a thermal range 60-100A, selectable tripping class 10-10A and phase unbalance protection, it protects motors 37 to 45kW@400V. LR9D5367 is a TeSys LR9D electronic overload relay from Schneider Electric to be combined with a TeSys D contactor. With a thermal setting range 60-100A, a selectable tripping class 10-10A and phase unbalance detection, it protects motors 37 to 45kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection, electronic type, with phase unbalance protection (differential), self powered (no external power supply needed). To be combined with Tesys LC1D115-D150 contactors. Light and compact, 120mm wide. Manual control with test & reset buttons, manual / automatic reset selector. High accuracy, temperature compensated to keep a precise tripping over the ambient temperature range. Selectable tripping class 10 or 10A. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. 90% reduction in energy dissipation compared to a thermal overload relay.

Features

Ensure high safty with phase failure and load unbalance detection
The thermal adjustement dial enables accurate and reliable operation
It is designed with a transparent cover lockable by sealing in case of misoperation
Simple mounting on DIN rail or screw fixing
Multi sdandards certified makes it possible to wide application

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Depth	125 mm

Weight	885 g

Complementary Attributes

Maximum Voltage Drop	<2.5 V closed state, <2.5 V closed state<2.5 V closed state, <2.5 V closed state
Ue Rated Operational Voltage	690 V AC 0...400 Hz power circuit IEC 60947-4-1
Us Rated Supply Voltage	24 V DC

Ui Rated Insulation Voltage	power circuit 1000 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V UL
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947-1

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	4 A gG for signalling circuit, 4 A BS for signalling circuit
Mounting Support	under contactor, rail
Temperature Compensation	-20-60 °C, -20-60 °C
Certificate Agency	UL, CSA, CCC, UKCA
Carbon Footprint Of The End Of Life Phase C1 To C4	1.6370650693830773, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	4 kg CO2 eq., 4.300183391790282
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2212018
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1001
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	Red push-button stopBlue push-button reset
Dielectric Strength	1.89 kV 50 Hz IEC 60947-1
Network Type	AC
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Software Version	v6.1
Sustainable Packaging	No
Thermal Overload Class	class 10 IEC 60947-4-1
Tightening Torque	alarm circuit 0.45 N.m screw clamp terminalspower circuit 18 N.m bars M8control circuit 1.2 N.m screw clamp terminals
Tripping Threshold	1.05 +/- 0.06 In alarm IEC 60947-4-11.12 +/- 0.06 In de-energisation IEC 60947-4-1
R Thermal Protection Adj Range	60-100 A
Data Source	extrapolated product
Width Nominal	115 mm
Customs Code	8536490075
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Mechanical Robustness	vibrations2 Gn, 5...300 Hz IEC 60068-2-6, shocks13 Gn for 11 ms IEC 60068-2-7
Product Name	TeSys LRD, TeSys Deca
Connections Terminals	power circuit barscontrol circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end, control circuit screw clamp terminals 2 0.5-1.5 mm² flexible without cable end, alarm circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end
Carbon Footprint Of The Distribution Phase A4	0.5885445505961475, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1 kg CO2 eq., 0.11271819735008072
Carbon Footprint Of The Use Phase B2 B3 B4 B6	127 kg CO2 eq., 126.69793890788517
Local Publishable Date	2026-06-27
Device Type	Relay, Control & Measurement - Protection relay
Traceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	LR9D
Device Short Name	LR9D
Network Frequency	50-60 Hz
Phase Failure Sensitivity	tripping in 4 s +/- 20 % IEC 60947-4-1
Product Or Component Type	electronic thermal overload relay
Relay Application	motor protection
Signalling Function	alarm
Supply Voltage Limits	17-32 V
Switching Capacity In Ma	0...150 mA
Thermal Protection Adjustment Range	60-100 A
Total Lifecycle Carbon Footprint	133 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2023-02
Height Nominal	118 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	5 A signalling circuit
Functional Unit Description	The functional unit of the LR9F7375 is to detect overload currents in order to protect the load for 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	92

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage	-60-70 °C, -60-70 °C
Product Compatibility	LC1D115, LC1D150, NSX circuit breaker
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	133.33645011700477
Climatic Withstand	IACS E10
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-06-20
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Operation	-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Operating Altitude	<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating
Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI2212018
Environmental Disclosure	ENVPEP2212018EN
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2212018EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
