TeSys Deca Thermal Overload Relay, 95-120A Class 10A, IP20
Schneider Electric

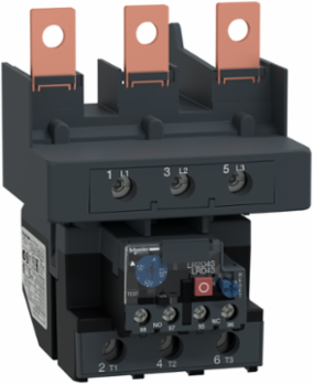

Schneider Electric LRD4367 TeSys Deca Thermal Overload Relay, 95-120A Class 10A, IP20

  • MPN: LRD4367
  • PPN: SCH-LRD4367
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $473.46

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    LRD4367 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 55kW@400V thanks to a thermal range 95-120A, a tripping class 10A and phase unbalance protection. LRD4367 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 95-120A, a tripping class 10A and phase unbalance detection, it protects motors 55kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D115 and D150 to form a compact starter. Light and compact, 120mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, United States
    Depth132 mm

    Important Information Attributes

    Associated Fuse Rating
    4 A gG for signalling circuit, 4 A BS for signalling circuit
    Mechanical Robustness
    vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7
    Network Type
    AC, DC
    Product Name
    TeSys LRD, TeSys Deca
    Tightening Torque
    control circuit 1.7 N.m screw clamp terminals, power circuit 9 N.m screw clamp terminals
    [Ui] Rated Insulation Voltage
    power circuit 1000 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL
    Carbon Footprint Of The Distribution Phase [A4]
    0.16290861781894878, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.08722167141519573, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    2 kg CO2 eq., 1.8963357840065684
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Device Type
    Relay, Control & Measurement - Protection relay
    Traceability
    No
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Product Kit Identifier
    N
    Device Short Name
    LRD
    Flame Retardance
    V1 conforming to UL 94
    Phase Failure Sensitivity
    tripping current 130 % of Ir on two phase, the last one at 0
    Product Or Component Type
    differential thermal overload relay
    Relay Application
    motor protection
    Software Version
    v6.1
    Thermal Overload Class
    class 10A IEC 60947-4-1
    Total Lifecycle Carbon Footprint
    8 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP1101001EN
    Pep Verification Date
    2025-08-05
    Psr Version
    PSR-0005-ed3-EN-2023 06 06
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    20
    Energy Model - Manufacturing [A1-a3]
    France, FR
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; France, FR
    Recyclability Potential, In %
    63
    [Ue] Rated Operational Voltage
    1000 V AC 0...400 Hz power circuit IEC 60947-4-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Control TypeRed push-button stop, Blue push-button reset
    Mounting Supportplate, with specific accessories, rail, with specific accessories, under contactor
    Permissible Current0.06 A 440 V DC-13 signalling circuit, 0.12 A 600 V AC-15 signalling circuit
    Temperature Compensation-20-60 °C, -20-60 °C
    Certificate AgencyIEC, UL, CSA, CCC, EAC, ATEX INERIS
    Connections - Terminalscontrol circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, power circuit screw clamp terminals 1 4-50 mm² flexible without cable end, power circuit screw clamp terminals 1 4-50 mm² solid without cable endpower circuit screw clamp terminals 1 4-35 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.2779284715732444
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 4.305506594796376
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1101001
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date2023
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Compatibility CodeLRD
    Dielectric Strength2.2 kV 50 Hz IEC 60947-1
    Network Frequency0...400 Hz
    Product AvailabilityStock - Normally stocked in distribution facility
    RangeTeSys
    ReturnabilityYes
    Sustainable PackagingYes
    Thermal Protection Adjustment Range95-120 A
    Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
    R Thermal Protection Adj Range95-120 A
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime, In Kwh28.3824
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
    [Ith] Conventional Free Air Thermal Current5 A signalling circuit
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Package Weight(Lbs)830.000 g
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Ambient Air Temperature For Storage
    -60-70 °C, -60-70 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1101001
    Environmental Disclosure
    ENVPEP1101001EN
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-08-05
    Psr Version
    PSR-0005-ed3-EN-2023 06 06
    Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
    Product CompatibilityLC1D150, LC1D115
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Carbon Footprint7.729901139610334
    Climatic WithstandIACS E10
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP1101001EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    differential thermal overload relay

    ETIM

    ETIM 8
    EC000106
