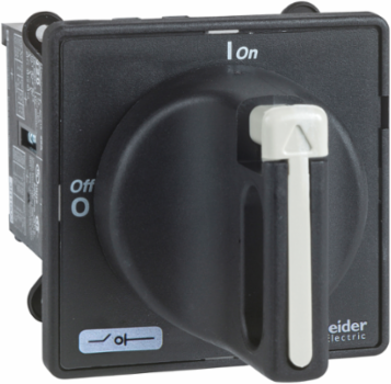

Schneider Electric VBDN12 TeSys Vario Switch Disconnector, 3 Poles, 12A, IP65, Door Mounting
- MPN: VBDN12
- PPN: SCH-VBDN12
CAD
$91.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VBDN12 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 4kW@400V AC-23. For door mounting with a single fixing, it provides a black handle with IP65 protection. VBDN12 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 4kW@400V AC-23. It consists of a VZ12 Vario switch body and a padlockable black & grey operator to be mounted on door with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body VZ12 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Physical Attributes
- Handle Color
- black
Handle Front Plate Colorblack
Complementary Attributes
- Rated Operational Power In W
- 3 kW 400...415 V AC-3), 4 kW 500 V AC-3), 4 kW 690 V AC-3), 3 kW 230...240 V AC-23A)4 kW 400...415 V AC-23A)5.5 kW 500 V AC-23A)7.5 kW 690 V AC-23A)1.5 kW 230...240 V AC-3)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- switch, handle
- Mounting Support
- handle door, switch door
- Certificate Agency
- UL, GL, CCC, CSA, UKCA
- Rated Conditional Short-circuit Current
- 6 kA 400 V 12 A aM, 6 kA 400 V 12 A gG
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.43582277256668406, 0.4 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.0902765254370028
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Base Dimension
- 60 x 60 mm
- Contacts Type And Composition
- 3 NO
- Device Short Name
- VBDN
- Fire Resistance
- 960 °C IEC 60695-2-1
- Intermittent Duty Class
- 30
- Mechanical Durability
- 50000 cycles
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- switch disconnector
- Range
- TeSys
- Rotary Handle Mounting Style
- direct
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 7 kg CO2 eq.
- Handle Color
- black
- Thermal Current 3
- 12 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 74.6352
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 60 mm
- [Icm] Rated Short-circuit Making Capacity
- 0.5 kA 400 V at Ipeak
- [Ie] Rated Operational Current
- 8.1 A AC-23)400 V
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Package Weight(Lbs)
- 178.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Making Capacity120 A 400 V AC-21A, 120 A 400 V AC-22A, 120 A 400 V AC-23A
Network TypeAC, DC
Connections - Terminalspower circuit screw clamp terminals 4-4 mm² flexible - with cable end, power circuit screw clamp terminals 4-4 mm² solid
Carbon Footprint Of The Distribution Phase [A4]0.020903290442569368, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.053637229919857164
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]5 kg CO2 eq., 4.986699999999999
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility Codemain switch disconnector
Control Typerotary handle
Electrical Durability30000 cycles DC-1...550000 cycles AC-21
Fixing Modehole 22.5 mm handle
Marking0 - 1
Mechanical Robustnessvibrations 10...150 Hz 5 gn) IEC 60068-2-6shocks 11 ms 15 gn) IEC 60068-2-27
Performance Levelstandard
Product NameTeSys Mini-VARIO
Protective TreatmentTC
ReturnabilityNo
Rotary Handle Padlocking1 to 3 padlocks 4-8 mm
Suitability For Isolationyes
Tightening Torquepower circuit 0.7-0.7 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Colorblack
Pep CodeENVPEP2211017EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %42
Width Nominal60 mm
[Icw] Rated Short-time Withstand Current140 A 400 V 1 s
[Ith] Conventional Free Air Thermal Current12 A
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509025
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211017EN
- Ip Degree Of Protection
- IP65
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2211017EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint6.587339818366113
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- switch disconnector
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
