Schneider Electric VCCF6 TeSys Vario Emergency Stop Switch Disconnector 175A 3 Poles IP65
- MPN: VCCF6
- PPN: SCH-VCCF6
CAD
$464.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

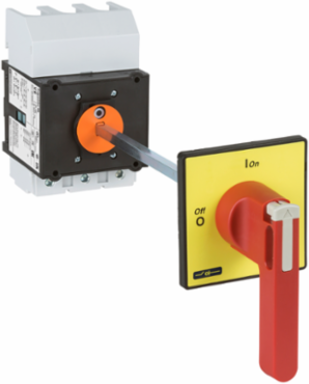

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 175A/690V, for motor switching applications up to 45kW@400V AC-23. Complete unit composed of a switch body V6, an extension shaft VZN18, a door interlock plate KZ74, a red handle with yellow 90x90mm front plate KCF3PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- emergency stop switch disconnector
- Range
- TeSys
Product NameTeSys VARIO
Device Short NameVCCF
Complementary
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- 30
- Network Type
- AC || DC
- Fixing Mode
- by 4 screws handle || by clips switch || by screws switch
- Handle Colour
- red
- Base Dimension
- 90 x 90 mm
- Performance Level
- high performance
- Making Capacity
- 1750 A 400 V AC-21A || 1750 A 400 V AC-22A || 1750 A 400 V AC-23A
- Connections - Terminals
- power circuit screw clamp terminals 95-95 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - with cable end
- [Icm] Rated Short-Circuit Making Capacity
- 2.8 kA 400 V at Ipeak
- Suitability For Isolation
- yes
- Mounting Support
- handle door || switch symmetrical rail || switch plate
- Poles Description
- 3P
- Tightening Torque
- power circuit 22.6-22.6 N.m screw clamp terminals
- Breaking Capacity
- 1400 A 400 V AC-21A) || 1400 A 400 V AC-22A) || 1400 A 400 V AC-23A)
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 200 A aM || 10 kA 400 V 200 A gG
Rotary Handle Mounting Styleextended
Height125 mm
[Ith] Conventional Free Air Thermal Current175 A
Handle Front Plate Colouryellow
[Ithe] Conventional Enclosed Thermal Current140 A
Marking0 - 1
Net Weight1.32 kg
[Uimp] Rated Impulse Withstand Voltage8 kV
Control Typerotary handle
Contacts Type And Composition3 NO
Electrical Durability30000 cycles AC-21 || 30000 cycles DC-1...5
[Ie] Rated Operational Current83 A AC-23 Ue: 400 V
Mechanical Durability30000 cycles
Width90 mm
Device Compositionhandle || shaft extension || switch
Rated Operational Power In W30 kW 230...240 V AC-3) || 37 kW 400...415 V AC-3) || 37 kW 690 V AC-3) || 45 kW 500 V AC-3) || 45 kW 690 V AC-23A) || 55 kW 500 V AC-23A) || 30 kW 230...240 V AC-23A) || 45 kW 400...415 V AC-23A)
[Icw] Rated Short-Time Withstand Current2100 A 400 V 1 s
Environment
- Product Certifications
- CSA || CCC || GL || UL || UKCA
- Standards
- IEC 60947-3
- Protective Treatment
- TC
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP20 IEC 60529 || IP65
Compatibility Codemain switch disconnector
Fire Resistance960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
