Schneider Electric VCCF2 TeSys Vario Switch Disconnector 40A 3 Poles IP65
- MPN: VCCF2
- PPN: SCH-VCCF2
CAD
$194.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

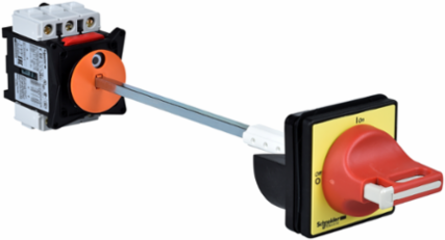

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 40A/690V, for motor switching applications up to 15kW@400V AC-23. Complete unit composed of a switch body V2, an extension shaft VZ17, a door interlock plate KZ32, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 300-330mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features
- The VCCF2 is designed as a high-performance main and emergency stop switch-disconnector within the trusted TeSys Vario range. Capable of handling an operational power rating up to 15 kW at 400V under AC-23 utilization categories, it provides rapid, on-load making and breaking for heavy inductive motor loads, ensuring instantaneous power cuts when operator safety is on the line.
- This all-in-one product kit eliminates ordering confusion by providing the full setup required for rear-panel installation. Inside the box, you receive the high-durability V2 3-pole switch body, a VZ17 extension shaft, a KZ32 door interlock plate, and a high-visibility red padlockable rotary handle mounted on a yellow 60mm by 60mm front plate.
- Engineered specifically for back-of-enclosure mounting with an extended door-interlocked handle, this unit accommodates a flexible distance of 300mm to 330mm between the back of the enclosure panel and the front door. The exterior handle mounts securely via a standard 4-screw fixing method, maintaining clean physical alignment and reliable mechanics across standard industrial industrial enclosures.
- To meet strict facility safety procedures and prevent accidental machine re-energization during maintenance, the ergonomic rotary handle is fully padlockable. It accommodates 1 to 3 individual padlocks with standard shank diameters ranging from 4mm to 8mm, keeping your maintenance teams safe and compliant with standard industrial occupational health and safety regulations.
- This robust 3-pole (3 NO) non-fusible switch features a conventional free-air thermal current (Ith) of 40A and an enclosed operational current rating of 32A up to a maximum insulation voltage of 690V AC. With a rated short-time withstand current (Icw) of 480A for 1 second, it delivers the electrical safety and structural robustness necessary to manage transient circuit surges without contact welding.
- The VCCF2 is fully multi-standard compliant, carrying CSA, UL, IEC 60947-3, CCC, and Marine certifications for trouble-free safety inspections across Canada and international jurisdictions.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- emergency stop switch disconnector
- Range
- TeSys
Product NameTeSys VARIO
Device Short NameVCCF
Complementary
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- 30
- Network Type
- AC || DC
- Fixing Mode
- by 4 screws handle || by clips switch || by screws switch
- Handle Colour
- red
- Base Dimension
- 60 x 60 mm
- Performance Level
- high performance
- Making Capacity
- 400 A 400 V AC-21A || 400 A 400 V AC-22A || 400 A 400 V AC-23A
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
- [Icm] Rated Short-Circuit Making Capacity
- 1 kA 400 V at Ipeak
- Suitability For Isolation
- yes
- Mounting Support
- handle door || switch symmetrical rail || switch plate
- Poles Description
- 3P
- Tightening Torque
- power circuit 2.1-2.1 N.m screw clamp terminals
- Breaking Capacity
- 320 A 400 V AC-21A) || 320 A 400 V AC-22A) || 320 A 400 V AC-23A)
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 50 A aM || 10 kA 400 V 50 A gG
Rotary Handle Mounting Styleextended
Height74 mm
[Ith] Conventional Free Air Thermal Current40 A
Handle Front Plate Colouryellow
[Ithe] Conventional Enclosed Thermal Current32 A
Marking0 - 1
Net Weight0.527 kg
[Uimp] Rated Impulse Withstand Voltage8 kV
Control Typerotary handle
Contacts Type And Composition3 NO
Electrical Durability100000 cycles AC-21 || 30000 cycles DC-1...5
[Ie] Rated Operational Current29 A AC-23 Ue: 400 V
Mechanical Durability100000 cycles
Width60 mm
Device Compositionhandle || shaft extension || switch
Rated Operational Power In W11 kW 690 V AC-3) || 15 kW 690 V AC-23A) || 11 kW 400...415 V AC-3) || 15 kW 500 V AC-3) || 18.5 kW 500 V AC-23A) || 5.5 kW 230...240 V AC-3) || 7.5 kW 230...240 V AC-23A) || 15 kW 400...415 V AC-23A)
[Icw] Rated Short-Time Withstand Current480 A 400 V 1 s
Environment
- Product Certifications
- UL || CSA || CCC || GL || UKCA
- Standards
- IEC 60947-3
- Protective Treatment
- TC
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP20 IEC 60529 || IP65
Compatibility Codemain switch disconnector
Fire Resistance960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product
