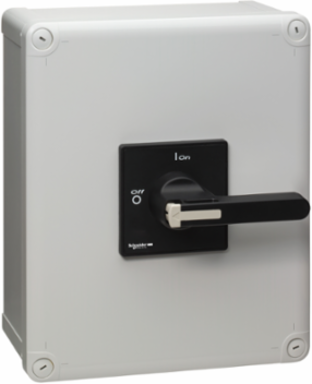

Schneider Electric VBF6GEN TeSys Enclosed Switch Disconnector, 140A, IP65, 3 Poles
Schneider Electric VBF6GEN TeSys Enclosed Switch Disconnector, 140A, IP65, 3 Poles
- MPN: VBF6GEN
- PPN: SCH-VBF6GEN
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$641.02/ EA
Description
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 140A 690V, for main switching in motor applications up to 45kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black long rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V6 with 1 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ip Degree Of Protection
- IP65 IEC 60529
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
StandardsIEC 60947-4-1 || IEC 60204
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211019
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- [Ue] Rated Operational Voltage
- 690 V AC
- Intermittent Duty Class
- 30
- Marking
- 0 - 1
- Net Weight
- 2.19 kg
- Making Capacity
- 1750 A 400 V AC-21A || 1750 A 400 V AC-22A || 1750 A 400 V AC-23A
- [Icm] Rated Short-Circuit Making Capacity
- 2.8 kA 400 V at Ipeak
- Environmental Characteristic
- standard environment
- [Ie] Rated Operational Current
- 83 A AC-23A)400 V
- Fire Resistance
- 960 °C IEC 60595-2-1
- Tightening Torque
- 22.6-22.6 N.m screw clamp terminals
- Breaking Capacity
- 1400 A 400 V AC-21A) || 1400 A 400 V AC-22A) || 1400 A 400 V AC-23A)
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 200 A aM || 10 kA 400 V 200 A gG
Height291 mm
[Ithe] Conventional Enclosed Thermal Current140 A
Base Dimension90 x 90 mm
[Uimp] Rated Impulse Withstand Voltage8 kV
Connections - Terminalsscrew clamp terminals 70-70 mm² flexible - with cable end || screw clamp terminals 95-95 mm² solid
Electrical Durability30000 cycles AC-21 || 30000 cycles DC-1...5
Suitability For Isolationyes
Mechanical Durability30000 cycles
Width241 mm
Depth191 mm
Rated Operational Power In W45 kW 400 V AC-23) || 37 kW 400 V AC-3)
[Icw] Rated Short-Time Withstand Current2100 A 400 V 1 s
Specifications
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Handle Colour
- black
- Product Name
- TeSys VARIO
- Range
- TeSys
- Poles Description
- 3P
- Device Application
- preventive maintenance
Handle Front Plate Colourblack
Product Or Component Typeenclosed switch disconnector
Performance Levelhigh performance
Control Typerotary handle
Type Of Operatorlong handle
Device Short NameVBF
