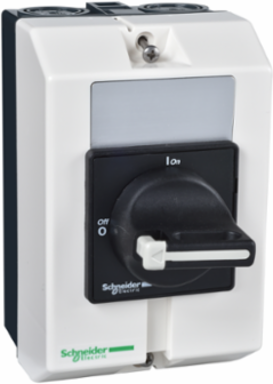

Schneider Electric VBF01GE TeSys Enclosed Switch Disconnector 3 Poles 16A 690V IP65
- MPN: VBF01GE
- PPN: SCH-VBF01GE
CAD
$174.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 16A 690V, for main switching in motor applications up to 5.5kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V01 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|
| Depth | 131 mm |
|---|
Physical Attributes
| Handle Color | black |
|---|
| Handle Front Plate Color | black |
|---|
Complementary Attributes
| Rated Operational Power In W | 5.5 kW 400 V AC-23)4 kW 400 V AC-3) |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Making Capacity | 200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A |
| Connections - Terminals | screw clamp terminals 10-10 mm² solid, screw clamp terminals 6-6 mm² flexible - with cable end |
| Carbon Footprint Of The Distribution Phase [A4] | 0.09743338386300768, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.1 kg CO2 eq., 0.07906756912597865 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 13 kg CO2 eq., 13.432378470046519 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV switch - disconnector |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1936 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Base Dimension | 60 x 60 mm |
| Control Type | rotary handle |
| Device Short Name | VBF |
| Environmental Characteristic | standard environment |
| Intermittent Duty Class | 30 |
| Mechanical Durability | 100000 cycles |
| Number Of Poles | 3P |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | enclosed switch-disconnector |
| Range | TeSys |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Suitability For Isolation | yes |
| Tightening Torque | 2.1-2.1 N.m screw clamp terminals |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Handle Front Plate Color | black |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Czech Republic, CZ |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; France, FR |
| Recyclability Potential In % | 20 |
| Width Nominal | 90 mm |
| [Icw] Rated Short-time Withstand Current | 300 A 400 V 1 s |
| [Ithe] Conventional Enclosed Thermal Current | 16 A |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Package Weight(Lbs) | 466.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | IEC 60947-4-1, IEC 60204 |
| Rated Conditional Short-circuit Current | 10 kA 400 V 20 A aM, 10 kA 400 V 20 A gG |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1.0940306052987434, 1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 2.629883768507865 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | enclosed switch disconnector |
| Device Application | preventive maintenance |
| Electrical Durability | 100000 cycles AC-2130000 cycles DC-1...5 |
| Fire Resistance | 960 °C IEC 60595-2-1 |
| Marking | 0 - 1 |
| Mechanical Robustness | vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Performance Level | high performance |
| Product Name | TeSys VARIO |
| Protective Treatment | TC |
| Returnability | No |
| Software Version | v6.1 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 17 kg CO2 eq. |
| Handle Color | black |
| Pep Code | ENVPEP2211019EN |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; France, FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; France, FR |
| Height Nominal | 146 mm |
| [Icm] Rated Short-circuit Making Capacity | 1 kA 400 V at Ipeak |
| [Ie] Rated Operational Current | 11 A AC-23A)400 V |
| [Ue] Rated Operational Voltage | 690 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109170 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 17.332793796842115 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Operation | -20-50 °C, -20-50 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211019EN |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2211019EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | enclosed switch-disconnector |
|---|
ETIM
| ETIM 8 | EC000216 |
|---|
| ETIM 9 | EC000216 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
