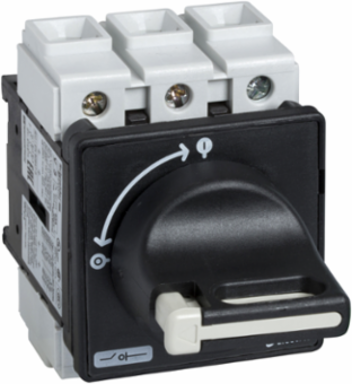

Schneider Electric VBD02 TeSys Vario Switch Disconnector 12A 3 Poles for Door Mounting
- MPN: VBD02
- PPN: SCH-VBD02
CAD
$101.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body V02, a black handle with black 60x60mm front plate KAD1PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- switch disconnector
- Range
- TeSys
- Device Short Name
- VBD
Product NameTeSys VARIO
Device Applicationpreventive maintenance
Complementary
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- 30
- Network Type
- AC || DC
- Fixing Mode
- hole 22.5 mm handle
- Handle Colour
- black
- Base Dimension
- 60 x 60 mm
- Performance Level
- high performance
- Making Capacity
- 120 A 400 V AC-21A || 120 A 400 V AC-22A || 120 A 400 V AC-23A
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
- [Icm] Rated Short-Circuit Making Capacity
- 1 kA 400 V at Ipeak
- Suitability For Isolation
- yes
- Mounting Support
- handle door || switch door
- Poles Description
- 3P
- Tightening Torque
- power circuit 2.1-2.1 N.m screw clamp terminals
- Breaking Capacity
- 120 A 400 V AC-21A) || 120 A 400 V AC-22A) || 120 A 400 V AC-23A)
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 12 A aM || 10 kA 400 V 12 A gG
Rotary Handle Mounting Styledirect
Height74 mm
[Ith] Conventional Free Air Thermal Current12 A
Handle Front Plate Colourblack
[Ithe] Conventional Enclosed Thermal Current10 A
Marking0 - 1
Net Weight0.215 kg
[Uimp] Rated Impulse Withstand Voltage8 kV
Control Typerotary handle
Contacts Type And Composition3 NO
Electrical Durability100000 cycles AC-21 || 30000 cycles DC-1 || 30000 cycles DC-2 || 30000 cycles DC-3 || 30000 cycles DC-4 || 30000 cycles DC-5
[Ie] Rated Operational Current8.1 A AC-23 Ue: 400 V
Mechanical Durability100000 cycles
Width60 mm
Device Compositionhandle || switch
Rated Operational Power In W3 kW 400...415 V AC-3) || 4 kW 500 V AC-3) || 1.5 kW 230...240 V AC-3) || 5.5 kW 500 V AC-23A) || 5.5 kW 690 V AC-3) || 7.5 kW 690 V AC-23A) || 3 kW 230...240 V AC-23A) || 4 kW 400...415 V AC-23A)
[Icw] Rated Short-Time Withstand Current300 A 400 V 1 s
Environment
- Product Certifications
- UL || CCC || GL || CSA || UKCA
- Standards
- IEC 60947-3
- Protective Treatment
- TC
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP20 IEC 60529 || IP65
Compatibility Codemain switch disconnector
Fire Resistance960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product
