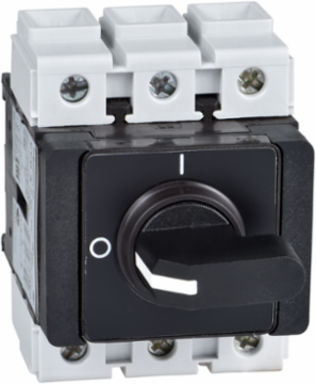

Schneider Electric VVD0 TeSys Vario Switch Disconnector 3 Poles 25A IP65
- MPN: VVD0
- PPN: SCH-VVD0
CAD
$112.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VVD0 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 7.5kW@400V AC-23. For mounting in modular panels, it provides a black & grey operator and IP20 protection front face. VVD0 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 7.5kW@400V AC-23. It consists of a V0 Vario switch body with a black & grey operator to be mounted in modular panels. It ensures an IP20 protection front face. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for installation in modular panels. Composed with a switch body V0 and a black & grey operator, for main switching (not padlockable). Ensures an IP20 protection degree front face. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ0), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France
Depth106 mm
Physical Attributes
- Handle Color
- black
Handle Front Plate Colorblack
Complementary Attributes
- Rated Operational Power In W
- 5.5 kW 230...240 V AC-23A), 7.5 kW 400...415 V AC-23A), 11 kW 500 V AC-23A), 11 kW 690 V AC-3), 15 kW 690 V AC-23A), 4 kW 230...240 V AC-3), 5.5 kW 400...415 V AC-3), 7.5 kW 500 V AC-3)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- switch, handle
- Fixing Mode
- by clips switch, by screws switch
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6, shocks 11 ms 30 Gn) IEC 60068-2-27
- Network Type
- DC, AC
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 6-6 mm² flexible - with cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.04871669193150384, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.02191936744141827
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 29 kg CO2 eq., 28.971796700100345
- Local Publishable Date
- 2025-12-03
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Base Dimension
- 45 x 45 mm
- Contacts Type And Composition
- 3 NO
- Device Application
- preventive maintenance
- Fire Resistance
- 960 °C IEC 60695-2-1
- Marking
- 0 - 1
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- switch disconnector
- Range
- TeSys
- Rotary Handle Mounting Style
- direct
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 31 kg CO2 eq.
- Handle Color
- black
- Thermal Current 3
- 25 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 433.62
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 74 mm
- [Icm] Rated Short-circuit Making Capacity
- 1 kA 400 V at Ipeak
- [Ie] Rated Operational Current
- 14.5 A AC-23 Ue: 400 V
- [Ithe] Conventional Enclosed Thermal Current
- 20 A
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Electrical Durability100000 cycles AC-21, 30000 cycles DC-1...5
Making Capacity250 A 400 V AC-21A, 250 A 400 V AC-22A, 250 A 400 V AC-23A
Mounting Supportswitch symmetrical rail, switch plate
Certificate AgencyGL, CSA, UL, UKCA
Rated Conditional Short-circuit Current10 kA 400 V 25 A aM, 10 kA 400 V 25 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6629610756790507, 0.7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.579208650841355
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility Codemain switch disconnector
Control Typerotary handle
Device Short NameVVD
Intermittent Duty Class30
Mechanical Durability100000 cycles
Performance Levelhigh performance
Product NameTeSys VARIO
Protective TreatmentTC
ReturnabilityNo
Rotary Handle Padlockingwithout
Suitability For Isolationyes
Tightening Torquepower circuit 2.1-2.1 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Colorblack
Pep CodeENVPEP2211006EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential, In %57
Width Nominal55 mm
[Icw] Rated Short-time Withstand Current300 A 400 V 1 s
[Ith] Conventional Free Air Thermal Current25 A
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Halogen-free StatusHalogen free product
Package Weight(Lbs)183.100 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ip Degree Of Protection
- IP65, IP65 conforming to IEC 60529
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 31.284602485993673
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2211006EN
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- switch disconnector
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Accessories
Loading carousel layout...
Loading carousel layout...
