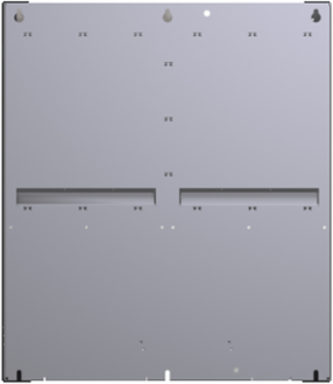

Schneider Electric ATS480M10Y Altivar Soft Starter 1000A 208-690V AC, Control Supply 110-230V AC
Schneider Electric ATS480M10Y Altivar Soft Starter 1000A 208-690V AC, Control Supply 110-230V AC
- MPN: ATS480M10Y
- PPN: SCH-ATS480M10Y
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

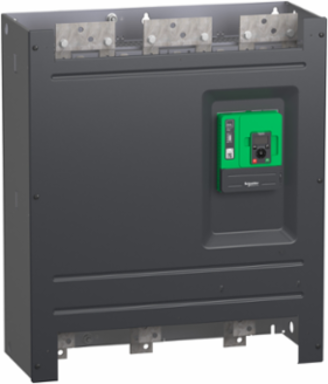

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 1000A in normal duty, it supplies motor from 250kW to 900kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 770mm (width) x 329mm (depth) x 890mm (height) and it weighs 115kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
Specifications
Specifications
- Product Destination
- asynchronous motors
- Product Or Component Type
- soft starter
- Motor Power Kw
- 250.0 kW 230 V in the motor supply line normal duty || 220.0 kW 230 V in the motor supply line heavy duty || 500.0 kW 400 V in the motor supply line normal duty || 400.0 kW 400 V in the motor supply line heavy duty || 630.0 kW 440 V in the motor supply line normal duty || 500.0 kW 440 V in the motor supply line heavy duty || 630.0 kW 500 V in the motor supply line normal duty || 500.0 kW 500 V in the motor supply line heavy duty || 630.0 kW 525 V in the motor supply line normal duty || 500.0 kW 525 V in the motor supply line heavy duty || 900.0 kW 660 V in the motor supply line normal duty || 710.0 kW 660 V in the motor supply line heavy duty || 900.0 kW 690 V in the motor supply line normal duty || 710.0 kW 690 V in the motor supply line heavy duty || 355.0 kW 230 V to the motor delta terminals heavy duty || 710.0 kW 400 V to the motor delta terminals normal duty || 630.0 kW 400 V to the motor delta terminals heavy duty
- Utilisation Category
- AC-3A || AC-53A
- [Us] Rated Supply Voltage
- 208...690 V - 15...10 %
- Torque Control
- true
- Device Short Name
- ATS480
- Supply Frequency
- 50...60 Hz - 20...20 %
Range Of ProductAltivar Soft Starter ATS480
Maximum Permanent Current790.0 A at 40 °C heavy duty
Network Number Of Phases3 phases
[Ie] Rated Operational Currentnormal duty 1000.0 A 40 °C)
Product Specific Applicationprocess and infrastructures
Motor Power Hp350.0 hp 208 V normal duty || 250.0 hp 208 V heavy duty || 350.0 hp 230 V normal duty || 300.0 hp 230 V heavy duty || 800.0 hp 460 V normal duty || 600.0 hp 460 V heavy duty || 1000.0 hp 575 V normal duty || 800.0 hp 575 V heavy duty
Ip Degree Of ProtectionIP00
Option Cardcommunication module Profibus DP V1 || communication module PROFINET || communication module Modbus TCP/EtherNet/IP || communication module CANopen daisy chain || communication module CANopen Sub-D || communication module CANopen open style
Complementary
- Product Certifications
- CE || cULus || CCC || UKCA || RCM || EAC || DNV || ABS || BV || CCS
- Height
- 890.0 mm
- Transmission Frame
- RTU
- [Uc] Control Circuit Voltage
- 110...250 V AC 50/60 Hz - 15...10 %
- Relay Output Number
- 3
- Marking
- CE || CCC || UKCA || EAC || RCM || cULus
- Display Screen Available
- true
- Relay Output Type
- relay outputs R1A 1 NO || relay outputs R1B 1 NO || relay outputs RIC NO/NC programmable
- Analogue Input Number
- 1
- Function Available
- external bypass control || pre-heating || smoke extraction || multi-motor cascade || second motor set || user management || ports and services hardening || security event logging || cybersecure firmware update || single direction
- Communication Port Protocol
- Modbus serial
- Minimum Switching Current
- 100 mA 12 V DC relay outputs
- Physical Interface
- 2-wire RS 485
- Integrated Motor Overload Protection
- true
- Discrete Input Number
- 4
- Power Loss Per Device Current Dependent
- 2845.0 W
- Apparent Power
- 0.2 kVA
- Power Loss Static Current Independent
- 25.0 W
- Width
- 770.0 mm
- Depth
- 329.0 mm
- Protection Type
- phase failure line || integrated thermal protection motor || thermal protection starter || current overload motor || underload motor || excessive starting time, locked rotor motor || motor phase loss motor || line supply phase loss line || line supply phase loss motor || thermal protection motor
Device Connectionin the motor supply line || to the motor delta terminals
StandardsIEC 60947-4-2 || UL 60947-4-2 || IEC 60664-1
Analogue Output Typecurrent output AQ1 0...20 mA or 0...10 V 500 Ohm
Maximum Switching Currentrelay outputs 2 A 250 V AC || relay outputs 2 A 30 V DC || relay outputs
Data Format8 bits, configurable odd, even or no parity
Output Current Drift150-700 %
Net Weight115.0 kg
Connector Type1 RJ45
Communication Data Linkserial
Discrete Output Number2
Discrete Input TypeSTOP) logic inputs, 3500 Ohm || RUN) logic inputs, 3500 Ohm || DI3) programmable as logic input, 3500 Ohm || DI4) programmable as logic input, 3500 Ohm
Analogue Output Number1
Method Of Accessslave Modbus serial
Rated Current Pwr Loss Specification1000.0 A
Accuracy Classclass 10E
Number Of Addresses0-227 Modbus serial
Operating Positionvertical +/- 10 degree
Type Of Polarizationno impedance Modbus serial
Transmission Rate1200...256000 bit/s
Discrete Input Logicprogrammable digital input < 5 V
Discrete Output TypeDQ1) programmable digital output <= 30 V || DQ2) programmable digital output <= 30 V
Environment
- Maximum Acceleration Under Vibratory Load (During Transport)
- 15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Electromagnetic Compatibility
- conducted and radiated emissions level A IEC 60947-4-2 || conducted and radiated emissions with bypass level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-11 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5
- Maximum Deflection Under Vibratory Load (During Transport)
- 1.75 mm at 2...9 Hz
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 10 m/s² at 13...200 Hz
- Ambient Air Temperature For Storage
- -25-70 °C
- Operating Altitude
- <= 1000 m without derating || > 1000...4000 m with current derating 1 % per 100 m
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Maximum Acceleration Under Shock Load (During Transport)100 m/s² at 11 ms
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Pollution Degreelevel 3
Ambient Air Temperature For Operation40-60 °C with current derating of 2 % per °C) || -15-40 °C without derating)
[Ui] Rated Insulation Voltage690 V
Maximum Acceleration Under Vibratory Load (During Storage)15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
Relative Humidity0-95 % without condensation or dripping water IEC 60068-2-3
Maximum Acceleration Under Shock Load (During Storage)100 m/s² at 11 ms
Maximum Deflection Under Vibratory Load (During Storage)1.75 mm at 2...9 Hz
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2102014EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Upgradeability
- Upgraded components available
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2102014EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
