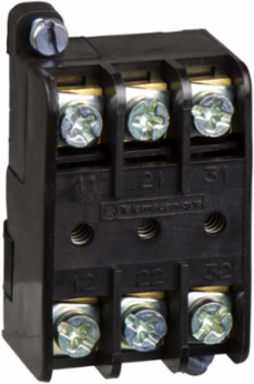

Telemecanique Sensors XENT2991 Harmony XAC Pendant Station Contact Block 240V AC 3A, 3 NC
- MPN: XENT2991
- PPN: SCH-XENT2991
CAD
$101.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XENT2991 is a pendant station contact 240V AC 3A. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Documentation & Downloads
Specifications
Key Specifications
| Contacts Type And Composition | 3 NC |
|---|---|
| Contact Operation | slow-break |
| Contact Block Type | single |
| Product Or Component Type | contact block |
| Component Name | XENT |
| Range Of Product | Harmony XAC |
|---|---|
| Type Of Operator | spring return |
| Electrical Circuit Type | control circuit || power circuit |
| Contact Block Application | emergency stop push-button |
| Product Compatibility | XACB |
Complementary
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end |
|---|---|
| [Ui] Rated Insulation Voltage | 400 V 3)IEC 60947-1 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Net Weight | 0.04 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Terminals Description Iso N°1 | (31-32)NC || (11-12)NC || (21-22)NC |
|---|---|
| Mechanical Durability | 3000000 cycles |
| Short-Circuit Protection | 6 A fuse protection cartridge aM |
| Rated Operational Power In W | 3000 W AC-23B 400 V |
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Overvoltage Category | class II IEC 61140 |
| Shock Resistance | 70 gn IEC 60068-2-27 |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|---|
| Standards | CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
