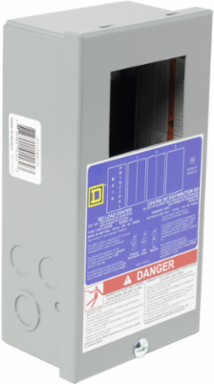

Square D QO35FM30TTS Load center, QO, 1 phase, 3 spaces, 5 circuits, 30A main breaker, NEMA1, gnd bar, surface cover, trailer use, UL
Square D QO35FM30TTS Load center, QO, 1 phase, 3 spaces, 5 circuits, 30A main breaker, NEMA1, gnd bar, surface cover, trailer use, UL
- MPN: QO35FM30TTS
- UPC: 785901911623
- PPN: SCH-QO35FM30TTS
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$165.83/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 3 spaces and 5 circuits. This system provides a 30A main breaker in a NEMA 1 enclosure. It also includes a ground bar, surface cover, and is UL rated. This product is for trailer use.
Specifications
Environment
- Product Certifications
- UL listed
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212001
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Complementary
- Height
- 236 mm
- Number Of Tandem Circuit Breakers
- 2
- Material
- tin plated aluminum: busbar
- [In] Rated Current
- 30 A
- Awg Gauge
- AWG 14...AWG 8 aluminum/copper
- Wiring Configuration
- 2-wire
- Depth
- 80 mm
- Number Of Spaces
- 3
- Device Composition
- grounding bar (factory installed)
- Net Weight
- 9.000 kg
Short-Circuit Current10 kA
Tightening Torquecover 20 lb.in
Surface Finishbaked enamel grey
Enclosure Materialwelded sheet steel
Width122 mm
Electrical Connectionlugs
Number Of Circuits5
Loadcentre TypeMain Breaker
Network Number Of Phases1 phase
Box Number3
Specifications
- Cover Type
- surface cover
- Product Or Component Type
- Loadcentre
Range Of ProductQO
