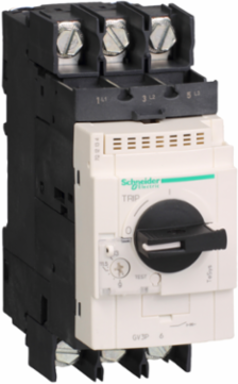

Schneider Electric GV3P506 TeSys Deca 3P Motor Circuit Breaker 37-50A, Thermal-Magnetic, 50A
Schneider Electric GV3P506 TeSys Deca 3P Motor Circuit Breaker 37-50A, Thermal-Magnetic, 50A
- MPN: GV3P506
- PPN: SCH-GV3P506
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$655.65/ EA
Description
TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for 3-phase motor applications 22kW@400V. It provides a thermal-magnetic protection with a thermal setting range 37-50A, magnetic tripping at 14xIn, high breaking capacity Icu 50kA@400V. Connection by bars or lugs. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA
- Mechanical Robustness
- shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz
- Standards
- EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Ambient Air Temperature For Storage
- -40-80 °C
- Operating Altitude
- 3000 m
Ik Degree Of ProtectionIK09 enclosure
Ambient Air Temperature For Operation-20-60 °C
Climatic WithstandIACS E10
Ip Degree Of ProtectionIP20 IEC 60529
Fire Resistance960 °C IEC 60695-2-11
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060901
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI060901
Complementary
- [In] Rated Current
- 50 A
- Height
- 132 mm
- Rated Duty
- continuous IEC 60947-4-1
- Magnetic Tripping Current
- 700-700 A
- Motor Power Kw
- 22-22 kW 400/415 V AC 50/60 Hz || 30-30 kW 500 V AC 50/60 Hz || 45-45 kW 690 V AC 50/60 Hz
- Net Weight
- 0.96 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Control Type
- rotary handle
- Electrical Durability
- 50000 cycles AC-3 415 V In
- Breaking Capacity
- 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 12 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2
- Thermal Protection Adjustment Range
- 37-50 A IEC 60947-4-1
- Mechanical Durability
- 50000 cycles
- Connection Pitch
- 17.5 mm without spreaders
- Width
- 55 mm
- Network Frequency
- 50/60 Hz IEC 60947-4-1
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
Phase Failure Sensitivityyes IEC 60947-4-1
Network TypeAC
[Ith] Conventional Free Air Thermal Current50 A IEC 60947-4-1
Utilisation CategoryAC-3 IEC 60947-4-1
Fixing Mode35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
[Ics] Rated Service Short-Circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 50 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 690 V AC 50/60 Hz IEC 60947-2
Power Dissipation Per Pole8 W
[Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Suitability For Isolationyes IEC 60947-1
Tightening Torque6 N.m lugs-ring terminals
Poles Description3P
Colourdark grey
Depth136 mm
Specifications
- Product Or Component Type
- motor circuit breaker
- Range
- TeSys Deca
- Device Short Name
- GV3P
Product NameTeSys GV3 || TeSys Deca
Device Applicationmotor protection
Trip Unit Technologythermal-magnetic
