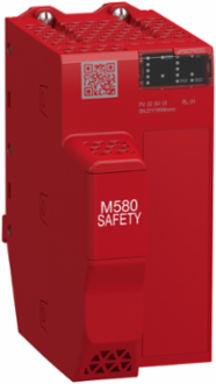

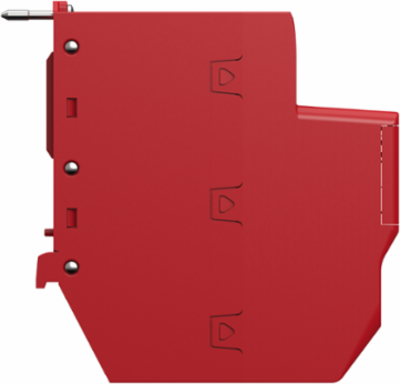

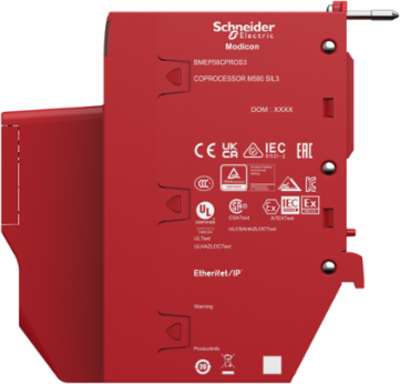

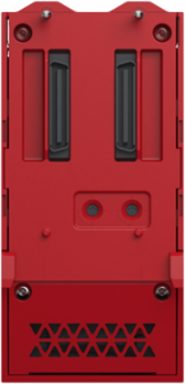

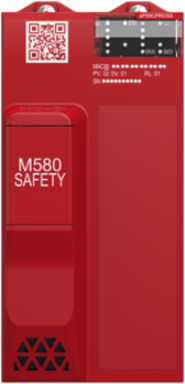

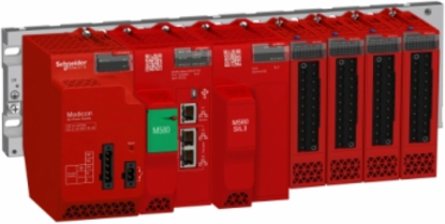

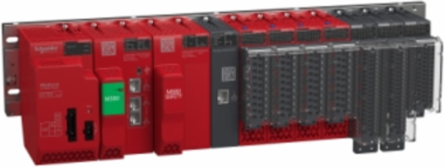

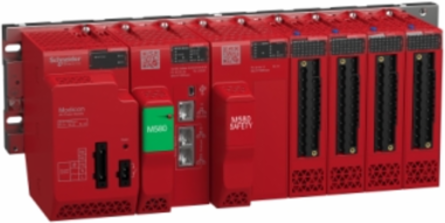

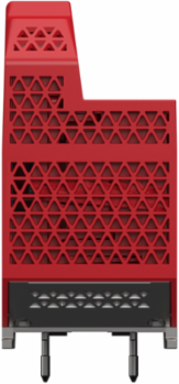

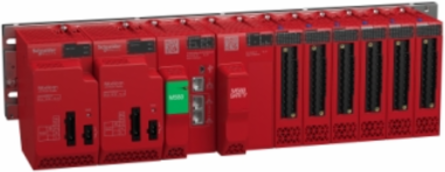

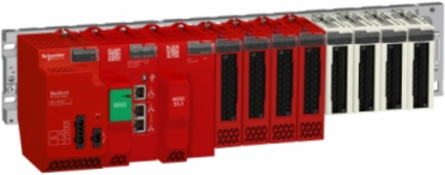

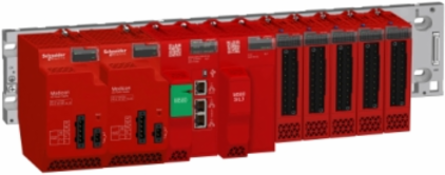

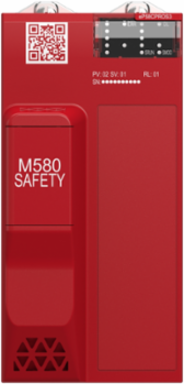

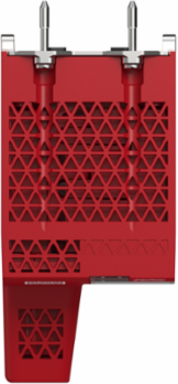

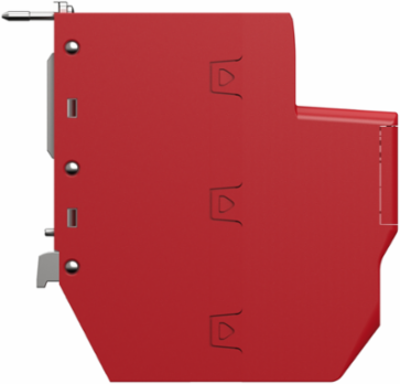

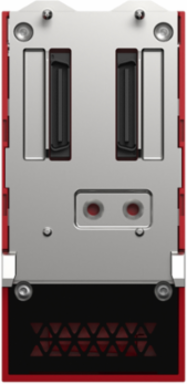

Schneider Electric BMEP58CPROS3 Modicon M580 Safety Coprocessor SIL3, IP20, -25 to 60 C
- MPN: BMEP58CPROS3
- PPN: SCH-BMEP58CPROS3
CAD
$2496.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

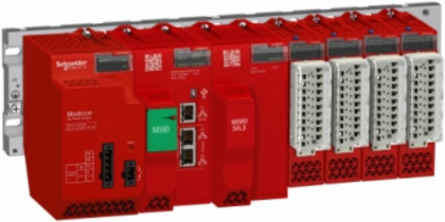

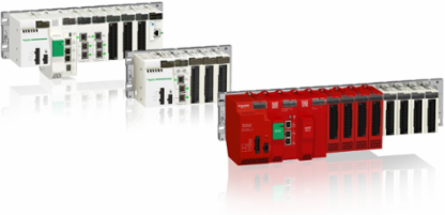

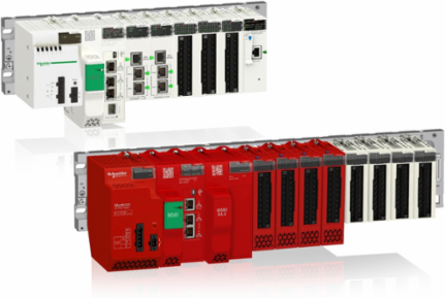

This safety coprocessor from Schneider Electric is designed to enhance the Modicon M580 system, providing an extra layer of safety with SIL3 compliance. Ideal for critical applications, it operates within a temperature range of -25 to 60 C, ensuring reliable performance even in challenging environments. The robust design, characterized by an IP20 rating, offers durability while maintaining efficient data processing capabilities, making it an essential component for industrial automation systems that demand the highest levels of safety and efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Environmental Characteristic
- hazardous location class I division 2, gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3
- Status Led
- 1 LED (Green) processor running (RUN)1 LED (Red) processor or system fault (ERR), 1 LED (Green) download in progress (DL), 1 LED (Green) processor in safety mode (SRUN), 1 LED (Green) processor in maintenance mode (SMOD)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1070914319, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0030338838, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 181 kg CO2 eq., 180.84
- Local Publishable Date
- 2026-04-04
- Stocking Flag
- N
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1312016EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1949
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Current Consumption
- 295 mA 24 V DC
- Mtbf Reliability
- 946000 H
- Product Or Component Type
- processor module
- Range Of Product
- Modicon M580
- Shock Resistance
- 15 gn
- Supply
- internal power supply via rack
- Total Lifecycle Carbon Footprint
- 242 kg CO2 eq.
- Pep Code
- ENVPEP1312016EN
- Pep Verification Date
- 2022-12-01
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- The Modicon M580 ePAC module provides cutting-edge features and high-end performances for small to large process automation for 10 years with a 100% use rate. Typical electrical power is 7,08 W (295 mA at 24 V DC)
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 558.1872
- Energy Model - Installation [A5]
- Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
- Energy Model - End Of Life [C1-c4]
- Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
- Package Weight(Lbs)
- 843.000 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 2114.6
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 3.5152
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 199
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 5133.8
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 4440.7
- Water Pollution (M3) Operational Energy Use [B6]
- 8919.5
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Safety LevelSIL 3, PL = e
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22, TÃœV
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.3505775822
Carbon Footprint Of The Manufacturing Phase [A1 To A3]61 kg CO2 eq., 60.8179577465
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Use Carbon Footprint180.84
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
MarkingCE
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityYes
Software VersionEIME v5.8.1
Sustainable PackagingYes
Vibration Resistance3 gn
Database Version2020-12
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]12617
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]180.84
Net Use Of Fresh Water (M3) Operational Energy Use [B6]2165.2
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]4440.7
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]693.07
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]693.07
Customs Code8537109160
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Directives
- 2014/30/EU - electromagnetic compatibility, 2006/42/EC - machinery, 2014/34/EU - ATEX directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1312016EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2022-12-01
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint242.1186606444
Environmental DisclosureENVPEP1312016EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1312016EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- processor module
Range Of ProductModicon M580
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
