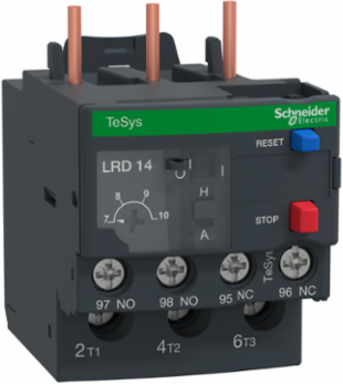

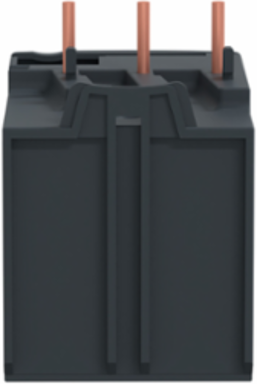

Schneider Electric LRD146 TeSys Deca Thermal Overload Relay 7-10A Class 10A 1NO+1NC
- MPN: LRD146
- PPN: SCH-LRD146
CAD
$137.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys LRD thermal overload relay, 10A/690V, thermal setting range 7-10A, tripping class 10A, for protection of 3-phase motors 4kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Depth70 mm
Important Information Attributes
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mechanical Robustness
- vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7
- Network Type
- AC, DC
- Product Name
- TeSys LRD, TeSys Deca
- Temperature Compensation
- -20-60 °C, -20-60 °C
- Certificate Agency
- IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit lugs-ring terminals
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.365021809
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.189450077
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI0804005
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1851
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Connection Pitch
- 14.5 mm
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- Network Frequency
- 0...400 Hz
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Relay Application
- motor protection
- Software Version
- v6.1
- Thermal Overload Class
- class 10A IEC 60947-4-1
- Total Lifecycle Carbon Footprint
- 3 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP0802006EN
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential, In %
- 27
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- 690 V AC 0...400 Hz power circuit IEC 60947-4-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Control TypeRed push-button stop, Blue push-button reset
Mounting Supportplate, with specific accessories, rail, with specific accessories, under contactor
Permissible Current3 A 120 V AC-15 signalling circuit, 0.22 A 125 V DC-13 signalling circuit
RangeTeSys, TeSys Deca
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals, power circuit 2.3 N.m lugs-ring terminals M4
[Ui] Rated Insulation Voltagepower circuit 600 V CSA, power circuit 600 V UL, power circuit 690 V IEC 60947-4-1
Carbon Footprint Of The Distribution Phase [A4]0.223194662, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.025536289, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]2 kg CO2 eq., 1.896335784
Local Publishable Date2025-07-09
Stocking FlagY
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Compatibility CodeLRD
Device Short NameLRD
Flame RetardanceV1 conforming to UL 94
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Typedifferential thermal overload relay
ReturnabilityNo
Sustainable PackagingNo
Thermal Protection Adjustment Range7-10 A
Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
R Thermal Protection Adj Range7-10 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe functional unit of the LRD365 is to detect overload currents in order to protect the load for 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh28.3824
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal66 mm
[Ith] Conventional Free Air Thermal Current5 A signalling circuit
[Uimp] Rated Impulse Withstand Voltage6 kV
Package Weight(Lbs)151.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI0804005
- Environmental Disclosure
- ENVPEP0802006EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product CompatibilityLC1D18, LC1D12, LC1D09, LC1D32, LC1D38, LC1D25
Reach Free ShvcYes
Carbon Footprint2.699538621
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP0802006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- differential thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
