Schneider Electric VCF4 Switch disconnector,TeSys Control,for ON/emergency stop,80A,4 screws fixing,for mounting on door
Schneider Electric VCF4 Switch disconnector,TeSys Control,for ON/emergency stop,80A,4 screws fixing,for mounting on door
- MPN: VCF4
- PPN: SCH-VCF4
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$234.40/ EA
Description

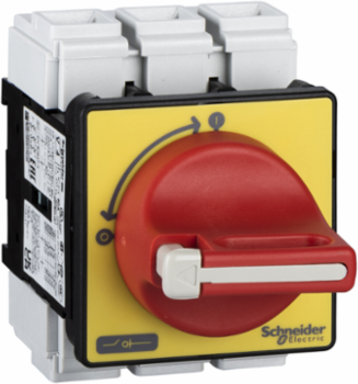

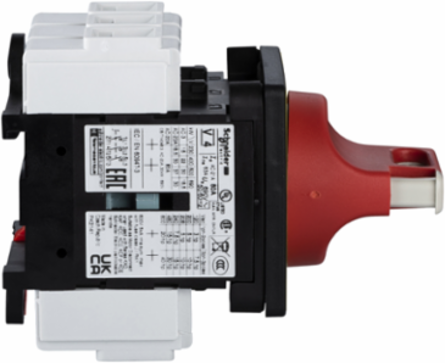

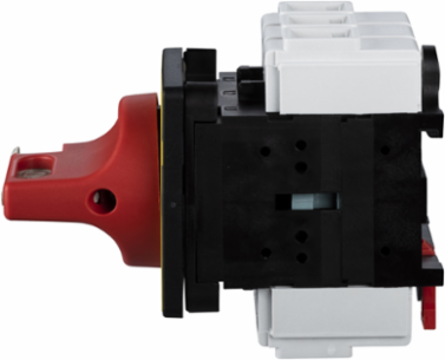

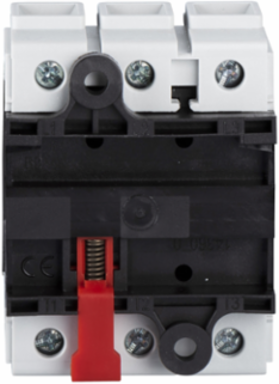

TeSys Vario switch disconnector for door mounting, 3 poles, 80A/690V, for motor switching applications up to 30kW@400V AC-23. Complete unit composed of a switch body V4, a red handle with yellow 60x60mm front plate KCF2PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- CCC || GL || UL || CSA || UKCA
- Standards
- IEC 60947-3
- Protective Treatment
- TC
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP20 IEC 60529 || IP65
Compatibility Codemain switch disconnector
Fire Resistance960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- 30
- Network Type
- DC || AC
- Fixing Mode
- by 4 screws handle
- Handle Colour
- red
- Base Dimension
- 60 x 60 mm
- Performance Level
- high performance
- Making Capacity
- 800 A 400 V AC-21A || 800 A 400 V AC-22A || 800 A 400 V AC-23A
- Connections - Terminals
- power circuit screw clamp terminals 25-25 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - with cable end
- [Icm] Rated Short-Circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- Suitability For Isolation
- yes
- Mounting Support
- handle door || switch door
- Poles Description
- 3P
- Tightening Torque
- power circuit 4-4 N.m screw clamp terminals
- Breaking Capacity
- 640 A 400 V AC-21A) || 640 A 400 V AC-22A) || 640 A 400 V AC-23A)
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 80 A aM || 10 kA 400 V 80 A gG
Rotary Handle Mounting Styledirect
Height83 mm
[Ith] Conventional Free Air Thermal Current80 A
Handle Front Plate Colouryellow
[Ithe] Conventional Enclosed Thermal Current63 A
Marking0 - 1
Net Weight0.56 kg
[Uimp] Rated Impulse Withstand Voltage8 kV
Control Typerotary handle
Contacts Type And Composition3 NO
Electrical Durability30000 cycles AC-21 || 30000 cycles DC-1...5
[Ie] Rated Operational Current57 A AC-23 Ue: 400 V
Mechanical Durability30000 cycles
Width60 mm
Device Compositionswitch || handle
Rated Operational Power In W18.5 kW 690 V AC-3) || 15 kW 230...240 V AC-3) || 22 kW 400...415 V AC-3) || 30 kW 500 V AC-3) || 30 kW 690 V AC-23A) || 37 kW 500 V AC-23A) || 18.5 kW 230...240 V AC-23A) || 30 kW 400...415 V AC-23A)
[Icw] Rated Short-Time Withstand Current960 A 400 V 1 s
Specifications
- Product Or Component Type
- emergency stop switch disconnector
- Range
- TeSys
Product NameTeSys VARIO
Device Short NameVCF
