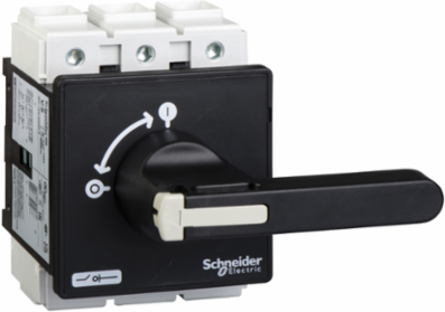

Schneider Electric VBF6 TeSys Vario Switch Disconnector 175A 3 Poles IP65
- MPN: VBF6
- PPN: SCH-VBF6
CAD
$46.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VBF6 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 45kW@400V AC-23. For door mounting with 4 screw fixing, it provides a black & grey operator with IP65 protection. VBF6 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 45kW@400V AC-23. It consists of a V6 Vario switch body and a padlockable black & grey operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V6 and a long black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , neutral (VZ13), earthing (VZ16), auxiliary (VZ7, VZ20).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France
Physical Attributes
- Handle Color
- black
Handle Front Plate Coloryellow
Complementary Attributes
- Rated Operational Power In W
- 30 kW 230...240 V AC-23A), 45 kW 400...415 V AC-23A), 30 kW 230...240 V AC-3)37 kW 400...415 V AC-3), 37 kW 690 V AC-3)45 kW 500 V AC-3), 45 kW 690 V AC-23A), 55 kW 500 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- handle, switch
- Making Capacity
- 1750 A 400 V AC-21A, 1750 A 400 V AC-22A, 1750 A 400 V AC-23A
- Network Type
- AC, DC
- Connections - Terminals
- power circuit screw clamp terminals 95-95 mm² solid, power circuit screw clamp terminals 70-70 mm² flexible - with cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.23384012127121842, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.10521296371880769
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 29 kg CO2 eq., 28.971796700100345
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- main switch disconnector
- Control Type
- rotary handle
- Device Short Name
- VBF
- Fixing Mode
- by 4 screws handle
- Marking
- 0 - 1
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27
- Performance Level
- high performance
- Product Name
- TeSys VARIO
- Protective Treatment
- TC
- Returnability
- Yes
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 22.6-22.6 N.m screw clamp terminals
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Handle Front Plate Color
- yellow
- Pep Code
- ENVPEP2211006EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Czech Republic, CZ
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential In %
- 57
- Width Nominal
- 90 mm
- [Icw] Rated Short-time Withstand Current
- 2100 A 400 V 1 s
- [Ith] Conventional Free Air Thermal Current
- 175 A
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509040
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Electrical Durability30000 cycles AC-21, 30000 cycles DC-1...5
Mounting Supporthandle door, switch door
Certificate AgencyGL, CSA, CCC, UL, UKCA
Rated Conditional Short-circuit Current10 kA 400 V 200 A aM, 10 kA 400 V 200 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]3.1822131632594437, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 7.580201524038504
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Base Dimension90 x 90 mm
Contacts Type And Composition3 NO
Device Applicationpreventive maintenance
Fire Resistance960 °C IEC 60695-2-1
Intermittent Duty Class30
Mechanical Durability30000 cycles
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeswitch disconnector
RangeTeSys
Rotary Handle Mounting Styledirect
Software Versionv6.1
Sustainable PackagingNo
Total Lifecycle Carbon Footprint40 kg CO2 eq.
Handle Colorblack
Thermal Current 3175 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh433.62
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal125 mm
[Icm] Rated Short-circuit Making Capacity2.8 kA 400 V at Ipeak
[Ie] Rated Operational Current83 A AC-23 Ue: 400 V
[Ithe] Conventional Enclosed Thermal Current140 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Package Weight(Lbs)1.062 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ip Degree Of Protection
- IP20 conforming to IEC 60529, IP65
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211006EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint40.07326447238832
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- switch disconnector
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
