Schneider Electric VVD3 TeSys Vario Switch Disconnector 63A 3 Poles for Enclosure Mounting
Schneider Electric VVD3 TeSys Vario Switch Disconnector 63A 3 Poles for Enclosure Mounting
- MPN: VVD3
- PPN: SCH-VVD3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$160.60/ EA
Description

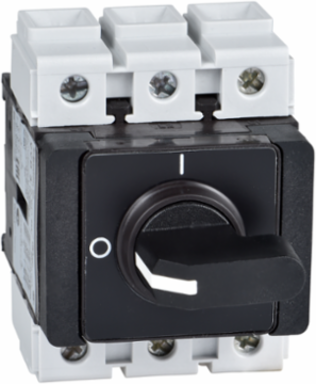

TeSys Vario switch disconnector for mounting in enclosure or modular panel, 3 poles, 63A/690V, for motor switching applications up to 22kW@400V AC-23. Complete unit composed of a switch body V3, a black handle with black 45x45mm front plate KAE1BZ. Intended for main switch disconnecting usage. Handle not padlockable. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- CSA || UL || GL || UKCA
- Standards
- IEC 60947-3
- Protective Treatment
- TC
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP65 || IP65 IEC 60529
Compatibility Codemain switch disconnector
Fire Resistance960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Rotary Handle Padlocking
- without
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- 30
- Network Type
- DC || AC
- Fixing Mode
- by clips switch || by screws switch
- Handle Colour
- black
- Base Dimension
- 45 x 45 mm
- Performance Level
- high performance
- Making Capacity
- 630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A
- Connections - Terminals
- power circuit screw clamp terminals 25-25 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - with cable end
- [Icm] Rated Short-Circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- Suitability For Isolation
- yes
- Mounting Support
- switch symmetrical rail || switch plate
- Poles Description
- 3P
- Tightening Torque
- power circuit 4-4 N.m screw clamp terminals
- Device Composition
- handle || switch
- Rated Operational Power In W
- 11 kW 230...240 V AC-3) || 22 kW 500 V AC-3) || 22 kW 690 V AC-23A) || 30 kW 500 V AC-23A) || 18.5 kW 400...415 V AC-3) || 18.5 kW 690 V AC-3) || 15 kW 230...240 V AC-23A) || 22 kW 400...415 V AC-23A)
- [Icw] Rated Short-Time Withstand Current
- 756 A 400 V 1 s
Rotary Handle Mounting Styledirect
Height83 mm
[Ith] Conventional Free Air Thermal Current63 A
Handle Front Plate Colourblack
[Ithe] Conventional Enclosed Thermal Current50 A
Marking0 - 1
Net Weight0.56 kg
[Uimp] Rated Impulse Withstand Voltage8 kV
Control Typerotary handle
Contacts Type And Composition3 NO
Electrical Durability30000 cycles AC-21 || 30000 cycles DC-1...5
[Ie] Rated Operational Current41.5 A AC-23 Ue: 400 V
Mechanical Durability30000 cycles
Width60 mm
Depth110 mm
Breaking Capacity500 A 400 V AC-21A) || 500 A 400 V AC-22A) || 500 A 400 V AC-23A)
Rated Conditional Short-Circuit Current10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG
Specifications
- Product Or Component Type
- switch disconnector
- Range
- TeSys
- Device Short Name
- VVD
Product NameTeSys VARIO
Device Applicationpreventive maintenance
