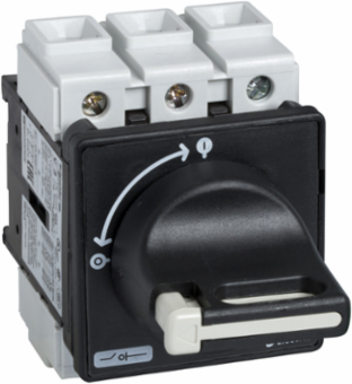

Schneider Electric VBF3 TeSys Vario Switch Disconnector 63A 3 Poles for Door Mounting IP65
- MPN: VBF3
- PPN: SCH-VBF3
CAD
$192.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys Vario switch disconnector for door mounting, 3 poles, 63A/690V, for motor switching applications up to 22kW@400V AC-23. Complete unit composed of a switch body V3, a black handle with black 60x60mm front plate KAF2PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features
- Engineered for high-performance industrial environments, this 3-pole non-fused switch disconnector features a 63A continuous current rating and supports motor switching applications up to 18.5 kW at 400V or 22 kW at 690V. This ensures your heavy machinery and high-inertia inductive loads can be switched on and off under full operational strain without risking premature contact wear or localized electrical faults.
- Designed explicitly for space-efficient enclosure integration, the complete unit features a compact 60x60mm front plate with a direct-mount black rotary handle that fastens securely via a 4-screw door fixing layout. This streamlined footprint allows industrial panel builders to minimize layout constraints while ensuring rigid mechanical stability during repeated manual actuation.
- When properly installed using the provided 4-screw layout, the external rotary handle achieves an IP65 rating to create a liquid-tight, dustproof barrier against aggressive spray downs and airborne particulate. While the internal switch body maintains an IP20 finger-safe configuration for routine servicing, the robust external enclosure seal makes it perfect for food processing, chemical plants, or rugged manufacturing floors.
- To safeguard technicians executing preventive maintenance, the integrated black rotary handle is capable of accepting 1 to 3 independent padlocks (shackle diameters of 4mm to 8mm) directly in the "OFF" position. This mechanical lock-out mechanism prevents accidental re-energization of downstream equipment, providing absolute compliance with strict facility safety protocols and occupational safety regulations.
- This heavy-duty load break switch features standard industrial screw clamp terminals designed for high-torque connections up to 4 N·m, accommodating up to 25 mm² solid copper wire or 16 mm² flexible cables with cable ends. The reliable, high-pressure clamping mechanism resists continuous operational vibrations (10 to 150 Hz) and physical shocks, eliminating the risk of loose hot spots or intermittent connectivity losses over its 30,000-cycle mechanical lifespan.
- The TeSys Vario VBF3 assembly is multi-standards certified across global regulatory bodies, holding valid UL, CSA, UKCA, CCC, and Marine approvals, alongside full Green Premium (RoHS/REACh) environmental compliance. This absolute cross-border validation ensures your control panels meet strict domestic inspection codes and international export criteria without requiring costly alternative component sourcing.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- switch disconnector
- Range
- TeSys
- Device Short Name
- VBF
Product NameTeSys VARIO
Device Applicationpreventive maintenance
Complementary
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- 30
- Network Type
- DC || AC
- Fixing Mode
- by 4 screws handle
- Handle Colour
- black
- Base Dimension
- 60 x 60 mm
- Performance Level
- high performance
- Making Capacity
- 630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A
- Connections - Terminals
- power circuit screw clamp terminals 25-25 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - with cable end
- [Icm] Rated Short-Circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- Suitability For Isolation
- yes
- Mounting Support
- handle door || switch door
- Poles Description
- 3P
- Tightening Torque
- power circuit 4-4 N.m screw clamp terminals
- Breaking Capacity
- 500 A 400 V AC-21A) || 500 A 400 V AC-22A) || 500 A 400 V AC-23A)
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG
Rotary Handle Mounting Styledirect
Height83 mm
[Ith] Conventional Free Air Thermal Current63 A
Handle Front Plate Colourblack
[Ithe] Conventional Enclosed Thermal Current50 A
Marking0 - 1
Net Weight0.56 kg
[Uimp] Rated Impulse Withstand Voltage8 kV
Control Typerotary handle
Contacts Type And Composition3 NO
Electrical Durability30000 cycles AC-21 || 30000 cycles DC-1...5
[Ie] Rated Operational Current41.5 A AC-23 Ue: 400 V
Mechanical Durability30000 cycles
Width60 mm
Device Compositionswitch || handle
Rated Operational Power In W11 kW 230...240 V AC-3) || 22 kW 500 V AC-3) || 22 kW 690 V AC-23A) || 30 kW 500 V AC-23A) || 18.5 kW 400...415 V AC-3) || 18.5 kW 690 V AC-3) || 15 kW 230...240 V AC-23A) || 22 kW 400...415 V AC-23A)
[Icw] Rated Short-Time Withstand Current756 A 400 V 1 s
Environment
- Product Certifications
- CSA || UL || CCC || GL || UKCA
- Standards
- IEC 60947-3
- Protective Treatment
- TC
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP20 IEC 60529 || IP65
Compatibility Codemain switch disconnector
Fire Resistance960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
