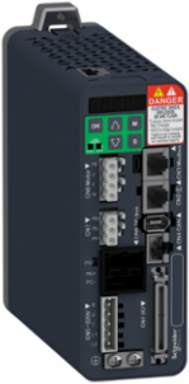

Schneider Electric LXM28SU07M3X Lexium 28 Motion Servo Drive, 200 to 240V, 750W, IP20, 4.5A Output Current
Schneider Electric LXM28SU07M3X Lexium 28 Motion Servo Drive, 200 to 240V, 750W, IP20, 4.5A Output Current
- MPN: LXM28SU07M3X
- PPN: SCH-LXM28SU07M3X
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1542.42/ EA
Description
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features an HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. The motion servo drives embed one pulse-train-input PTI and one pulse train-output PTO interfaces. It is a motion servo drive with a rated supply voltage of 220V (single phase and three phase), an output current of 4.5A at 220V, a power of 750W/1.00HP and a continuous power of 750W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for Sercos integrated communication interface. It is an IP20 rated product. Its dimensions are 55mm (Width) x 146mm (Depth) x 150mm (Height). It weighs 1kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with motor BCH2 (130mm, 1 motor stacks) at 500W, BCH2 (80mm, 2 motor stacks) at 750W, BCH2 (130mm, 1 motor stacks) at 600W. Mount this servo drive in a vertical position (more or less 10°). This is required for cooling the device. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 motors, optimized servo bundles for compact machines.
Specifications
Complementary
- [Us] Rated Supply Voltage
- 200...240 V - 10...15 %)three phase || 200...240 V - 20...15 %)single phase
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Height
- 150 mm
- Electrical Isolation
- between power and control
- Status Led
- 1 LED (red) charge || 1 LED (green) RUN || 1 LED (red) error
- Discrete Input Voltage
- 24 V DC logic
- Discrete Output Voltage
- 12...24 V DC
- Signalling Function
- servo status and fault codes five 7-segment display units
- Output Current 3S Peak 2
- 13.5 A 220 V
- Network Number Of Phases
- single phase || three phase
- Output Current 3S Peak 3
- 13.5 A 220 V
- Electrical Connection
- spring terminal 0.82...1 mm², AWG 18 L1-L2) || spring terminal 0.82...1 mm², AWG 18 R, S, T) || spring terminal 0.82...1 mm², AWG 18 U, V, W, PE) || spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)
- Discrete Output Logic
- positive or negative CN1)
- Supply Voltage Limits
- 200-255 V three phase || 170-255 V single phase
- Control Signal Type
- servo motor encoder feedback CN2
- Output Voltage
- <= power supply voltage
- Emc Filter
- without EMC filter
- Width
- 55 mm
- Depth
- 146 mm
- Continuous Output Current
- 4.5 A 16 kHz
- Continuous Power
- 750 W 220 V
- Safety Level
- SIL 2 IEC 61800-5-2 2007 || SIL 2 IEC 61508-1 2010 || PL d/category 3 ISO 13849-1 2008 || SIL 2 ISO 13849-1 2009/AC || SIL 2 IEC 60204-1 2006 || SIL 2 IEC 60204-1 2009/A1 || SIL 2 IEC 60204-1 2010/AC || SIL 2 IEC 62061 2012
Network Frequency47.5...63 Hz
Discrete Input Logicpositive or negative CN1)
Output Current 3S Peak13.5 A 220 V
Product Compatibilityservo motor BCH2 130 mm, 1 500 W || servo motor BCH2 80 mm, 2 750 W || servo motor BCH2 130 mm, 1 600 W
Discrete Output Number4 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1)
Transmission Rate9600 bauds...115200 bauds (automatic detection) 100-100 m
Discrete Input Number8 programmable CN1) || 2 fast capture CN1) || 1 safety function STO CN9)
MarkingCSA || cULus || CE
Connector TypeRJ45 CN3) || RJ45 CN4)
Net Weight1 kg
Communication InterfaceModbus, integrated || SERCOS III, integrated
Switching Frequency16 kHz
Type Of Coolingintegrated fan
Method Of Accessslave
Safety FunctionSTO (safe torque off), integrated
Operating Positionvertical
Maximum Leakage Current1.3 mA
Overvoltage CategoryIII
Nominal Power0.75 kW 220 V 16 kHz
Protection Typeagainst reverse polarity inputs signal || against short-circuits outputs signal || overcurrent motor || overvoltage motor || undervoltage motor || overheating motor || overload motor || overspeed motor
Supply Frequency50/60 Hz - 5...5 %
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409001EN
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1409001EN
Environment
- Product Certifications
- CE || cULus || CSA
- Standards
- IEC 61800-5-1
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Ambient Air Temperature For Storage
- -25-65 °C
- Ip Degree Of Protection
- IP20
Ambient Air Temperature For Operation0-55 °C
Electromagnetic Compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Shock Resistance10 gn, type I IEC 60721-3-3
Relative Humidity5-95 % without condensation
Operating Altitude<= 1000 m without derating || > 1000...2000 m 1 % per 100 m
Specifications
- Line Current
- 6 A 181.8 % 220 V, single phase || 6 A 160.6 % 220 V, three phase
- Format Of The Drive
- compact housing
- Device Short Name
- LXM28S
Range Of ProductLexium 28
Product Or Component Typemotion servo drive
