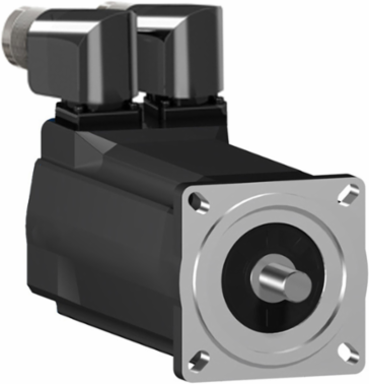

Schneider Electric SH30703P11A2000 Servo Motor 2.94 Nm, 8k RPM, IP54/IP65, 220 mm Length, 3.6 kg
- MPN: SH30703P11A2000
- PPN: SCH-SH30703P11A2000
CAD
$3240.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric SH30703P11A2000 Servo Motor is engineered for precise motion control and high performance, featuring a robust output torque of 2.94 Nm and impressive operational speeds of up to 8,000 RPM. With its IP54/IP65 rating, this motor is designed to withstand challenging environmental conditions, making it suitable for a wide range of applications in automation and control settings. At a length of 220 mm and weighing 3.6 kg, its compact yet powerful design ensures it can be integrated seamlessly into existing systems while delivering reliable performance. Ideal for applications requiring accuracy and durability, this servo motor represents a vital component in modern motion control systems.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 2.94 N.m 115...480 V three phase
- Nominal Output Power
- 460 W 115 V single phase || 880 W 230 V single phase || 1450 W 400 V three phase || 1550 W 480 V three phase
- Nominal Speed
- 1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase
- Maximum Current Irms
- 17 A
- Voltage
- 115...480 V
- Torque Constant
- 0.72 N.m/A 120 °C
- Maximum Radial Force Fr
- 730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm
- Shaft Diameter
- 14 mm
- Key Width
- 5 mm
- Motor Flange Size
- 70 mm
- Centring Collar Diameter
- 60 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 82 mm
- Encoder Type
- absolute single turn SinCos Hiperface
- Number Of Motor Poles
- 3
- Stator Inductance
- 20.3 mH
- Electrical Connection
- straight connector
- Holding Brake
- without
- Range Compatibility
- PacDrive 3
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (out of EU RoHS scope)
- Rohs Exemption Information
- Yes
- Warranty
- 18 months
Peak Stall Torque11.3 N.m 115...480 V three phase
Nominal Torque2.95 N.m 115 V single phase || 2.8 N.m 230 V single phase || 2.1 N.m 400 V three phase || 2.1 N.m 480 V three phase
Maximum Mechanical Speed8000 rpm
Continuous Stall Current4.1 A
Phasethree phase
Back Emf Constant49 V/krpm 20 °C
Maximum Axial Force Fa80 N
Shaft Length30 mm
Shaft Endparallel key
Length220 mm
Centring Collar Depth2.5 mm
Mounting Holes Diameter5.5 mm
Mounting Supportinternational standard flange
Rotor Inertia0.58 kg.cm²
Stator Resistance2.7 Ohm
Type Of Coolingnatural convection
Ip Degree Of ProtectionIP54 shaft bushing without shaft seal ring; IP65 motor; IP65 shaft bushing (EN/IEC 60034-5)
Net Weight3.6 kg
Product Or Component Typeservo motor
Pvc FreeYes
Environmental DisclosureENVPEP111049EN
China Rohs RegulationX
