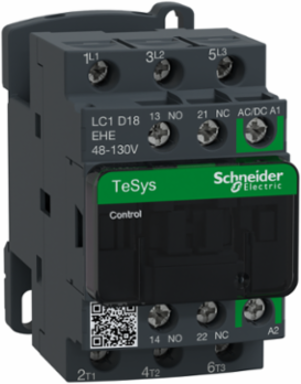

Schneider Electric LC1D18EHE TeSys Deca Contactor 3P 18A 48-130V AC/DC Coil, IP20
- MPN: LC1D18EHE
- PPN: SCH-LC1D18EHE
CAD
$309.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Deca Contactor 3P 18A 48-130V AC/DC Coil, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Sweden
Depth86 mm
Complementary Attributes
- Control Circuit Type
- AC/DC 50/60 Hz AC/DC electronic, AC/DC 50/60 Hz AC/DC electronic
- Irms Rated Making Capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 300 A at 440 V for power circuit conforming to IEC 60947
- Maximum Motor Phase Current
- 18 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 300 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits<= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC<= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, 0.85...1.1 Uc (-40-60 °C):operational AC/DC, 1...1.1 Uc (60-70 °C):operational AC/DC
Maximum Horse Power Rating5 hp at 230/240 V AC 60 Hz for 3 phase motors1 hp at 115 V AC 60 Hz for 1 phase motors, 3 hp at 230/240 V AC 60 Hz for 1 phase motors, 5 hp at 200/208 V AC 60 Hz for 3 phase motors, 10 hp at 460/480 V AC 60 Hz for 3 phase motors, 15 hp at 575/600 V AC 60 Hz for 3 phase motors
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1, 50 A gG at <= 690 V coordination type 1 for power circuit, 35 A gG at <= 690 V coordination type 2 for power circuit
- Electrical Durability
- 2.2 Mcycles 15 A AC-3 <= 440 V, 0.9 Mcycles 32 A AC-1 <= 440 V, 2.2 Mcycles 15 A AC-3e <= 440 V
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz), shocks contactor open 10 Gn for 11 ms), shocks contactor closed 15 Gn for 11 ms)
- Mounting Support
- rail, plate
- Power Dissipation Per Pole
- 2.5 W AC-1, 0.8 W AC-3, 0.8 W AC-3e
- Tightening Torque
- power circuit 1.7 N.m screw clamp terminals Philips No 2, control circuit 1.7 N.m screw clamp terminals pozidriv No 2control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2, power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, power circuit 1.7 N.m screw clamp terminals pozidriv No 2
- Certificate Agency
- CCC, CSA, EAC, UL, KC, DNV-GL, LROS (Lloyds register of shipping), UKCA
- [Ie] Rated Operational Current
- 18 A (at <60 °C) at <= 440 V AC-3 for power circuit, 32 A (at <60 °C) at <= 440 V AC-1 for power circuit, 18 A (at <60 °C) at <= 440 V AC-3e for power circuit
- [Uc] Control Circuit Voltage
- 48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC
- Connections - Terminals
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-6 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: solid, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: solid, screw clamp terminals, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: flexible without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.11305961935743787, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.04220451091158585
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 8 kg CO2 eq., 8.193978947368423
- Local Publishable Date
- 2025-07-01
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 2.5 mOhm - Ith 32 A 50 Hz for power circuit
- Compatibility Code
- LC1D
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 0.8-0.8 W at 50/60 Hz
- Inrush Power In W
- 24-24 W 20 °C)
- Number Of Poles
- 3P
- Pole Contact Composition
- 3 NO
- Product Or Component Type
- contactor
- Returnability
- No
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 12 kg CO2 eq.
- Connections Terminals
- screw clamp terminals
- Inf Motor Phase Current
- 18 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3 NO, a control circuit voltage 250V, a power circuit voltage 690V and a rated operational current 9A.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential, In %
- 70
- Width Nominal
- 45 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Hold-in Power Consumption In W
- 0.8-0.8 W 20 °C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationresistive load, motor control
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw7.5 kW at 380...400 V AC 50 Hz (AC-3e), 9 kW at 415 V AC 50 Hz (AC-3e), 9 kW at 440 V AC 50 Hz (AC-3e), 10 kW at 500 V AC 50 Hz (AC-3e), 10 kW at 660...690 V AC 50 Hz (AC-3e)4 kW at 220...230 V AC 50 Hz (AC-3), 7.5 kW at 380...400 V AC 50 Hz (AC-3), 9 kW at 415 V AC 50 Hz (AC-3), 9 kW at 440 V AC 50 Hz (AC-3), 10 kW at 500 V AC 50 Hz (AC-3), 10 kW at 660...690 V AC 50 Hz (AC-3), 4 kW at 220...230 V AC 50 Hz (AC-3e)
Operating Time45...55 ms closing, 20...90 ms opening
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Utilisation CategoryAC-1, AC-3, AC-3e
[Icw] Rated Short-time Withstand Current100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit, 40 A 40 °C - 10 min for power circuit, 84 A 40 °C - 1 min for power circuit, 145 A 40 °C - 10 s for power circuit, 240 A 40 °C - 1 s for power circuit
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit, 32 A (at 60 °C) for power circuit
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6485756196250431, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.131383317790026
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1609001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1922
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting
Device Short NameLC1D
Flame RetardanceV1 conforming to UL 94
Inrush Power In Va25-25 VA 50/60 Hz (at 20 °C)
Mechanical Durability15 Mcycles
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductTeSys Deca Advanced
Signalling Circuit Frequency25...400 Hz
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage48...130 V
Pep CodeENVPEP1609001EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal77 mm
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz
Hold-in Power Consumption In Va1.3-1.3 VA 50/60 Hz (at 20 °C)
Halogen-free StatusHalogen free plastic parts and cables product
Package Weight(Lbs)395.0 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Permissible Ambient Air Temperature Around The Device
- -40-60 °C-40-60 °C, 60-70 °C with derating
- Halogene Performance
- Halogen free plastic parts & cables product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1609001EN
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Climatic WithstandIACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint12.129202015052517
Environmental DisclosureENVPEP1609001EN
Halogen Content PerformanceHalogen free plastic parts & cables product
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1609001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca Advanced
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
