Schneider Electric VCCDN20 TeSys Vario Emergency Stop Switch Disconnector 20A 3 Poles IP65
- MPN: VCCDN20
- PPN: SCH-VCCDN20
CAD
$136.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

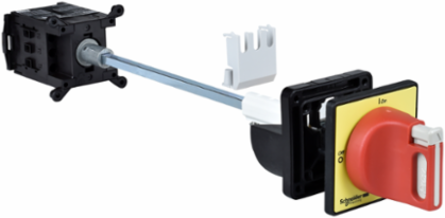

VCCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 5.5kW@400V AC-23. For enclosure back mounting, it provides a red & yellow operator and extension shaft with IP65 protection. VCCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 5.5kW@400V AC-23. It consists of a VZ20 Vario switch body to be mounted on the back of an enclosure, an extension shaft, and a padlockable red & yellow operator with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for back mounting. Composed with a switch body VZ20, an extension shaft and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN20), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Physical Attributes
- Handle Color
- red
Handle Front Plate Coloryellow
Complementary Attributes
- Rated Operational Power In W
- 4 kW 400...415 V AC-3), 5.5 kW 500 V AC-3), 5.5 kW 690 V AC-3), 4 kW 230...240 V AC-23A)5.5 kW 400...415 V AC-23A)7.5 kW 500 V AC-23A)11 kW 690 V AC-23A)3 kW 230...240 V AC-3)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- shaft extension, handle, switch
- Network Type
- DC, AC
- Connections - Terminals
- power circuit screw clamp terminals 4-4 mm² flexible - with cable end, power circuit screw clamp terminals 4-4 mm² solid
- Carbon Footprint Of The Distribution Phase [A4]
- 0.039942, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.10249
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 5 kg CO2 eq., 4.9867
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Use Carbon Footprint
- 4.9867
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- main switch disconnector
- Control Type
- rotary handle
- Electrical Durability
- 30000 cycles DC-1...550000 cycles AC-21
- Intermittent Duty Class
- 30
- Mechanical Durability
- 50000 cycles
- Mounting Support
- handle doorswitch symmetrical rail
- Performance Level
- standard
- Product Name
- TeSys Mini-VARIO
- Protective Treatment
- TC
- Returnability
- No
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 0.7-0.7 N.m screw clamp terminals
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Handle Front Plate Color
- yellow
- Pep Code
- ENVPEP2211017EN
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 60 mm
- [Icm] Rated Short-circuit Making Capacity
- 0.5 kA 400 V at Ipeak
- [Ie] Rated Operational Current
- 11 A AC-23)400 V
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- Package Weight(Lbs)
- 318.000 g
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 4.9738
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 4.9867
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 37.043
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 957.58
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -18.284
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 35.218
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 12.803
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 426.06
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 2.5228
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -2.0396
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 4.1863
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 1.1434
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 25.128
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 1.2042
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 4.1863
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 32.857
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 957.58
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -18.284
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 1.1502
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 88.53
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Making Capacity200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A
Certificate AgencyGL, CSA, CCC, UL, UKCA
Rated Conditional Short-circuit Current6 kA 400 V 20 A aM, 6 kA 400 V 20 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.83277, 0.8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.0833
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Manufacturing Carbon Footprint2.0833
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Base Dimension60 x 60 mm
Contacts Type And Composition3 NO
Device Short NameVCCDN
Fixing Modehole 22.5 mm handleby clips switch
Marking0 - 1
Mechanical Robustnessshocks 11 ms 15 gn) IEC 60068-2-27vibrations 10...150 Hz 1 gn) IEC 60068-2-6
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeemergency stop switch disconnector
RangeTeSys
Rotary Handle Mounting Styleextended
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint8 kg CO2 eq.
Handle Colorred
Thermal Current 320 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %42
Width Nominal60 mm
[Icw] Rated Short-time Withstand Current140 A 400 V 1 s
[Ith] Conventional Free Air Thermal Current20 A
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]2.0084
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]2.0833
Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-0.9759
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]1.0668
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]25.125
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]853.2
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-19.695
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-17.453
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]129.26
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]0.4795
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle4.1863
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]38.247
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1046.1
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-18.823
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]88.53
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]4.1863
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]1.0668
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]25.125
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle1.1502
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-1.0138
Customs Code8536509025
