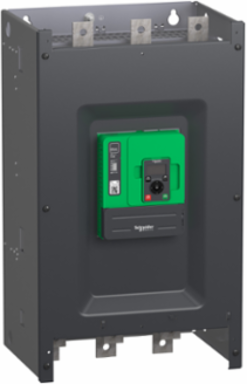

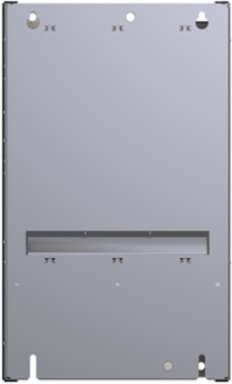

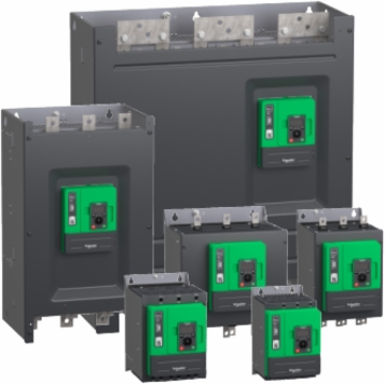

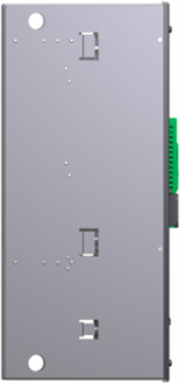

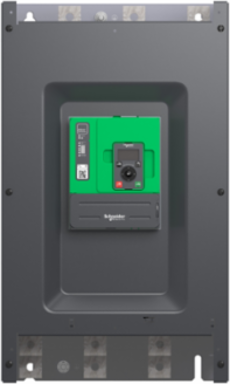

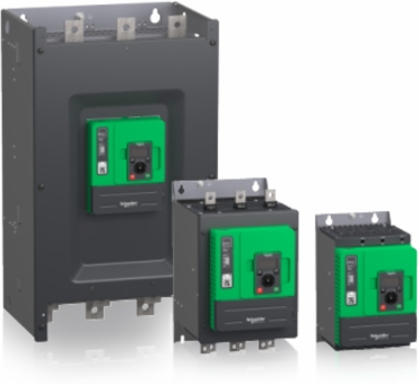

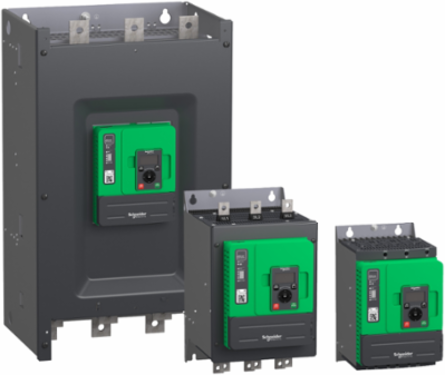

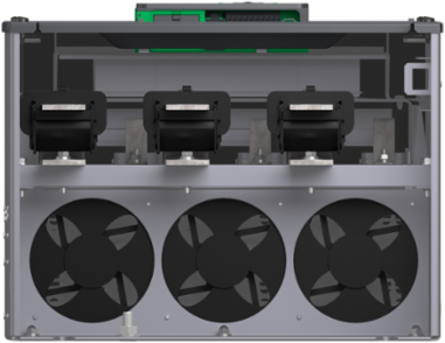

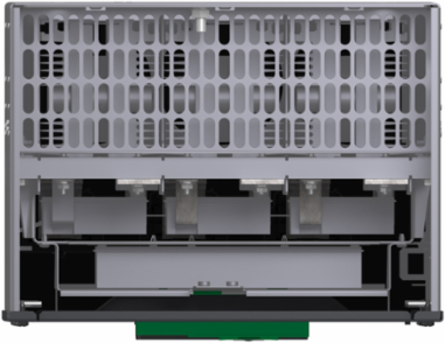

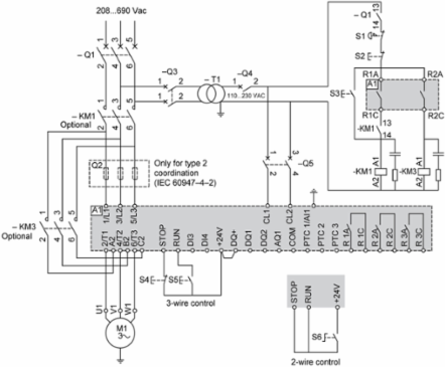

Schneider Electric ATS480C59Y Altivar Soft Starter 590A 208-690V AC 51.4kg
- MPN: ATS480C59Y
- PPN: SCH-ATS480C59Y
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 590A in normal duty, it supplies motor from 160kW to 560kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 400mm (width) x 314mm (depth) x 670mm (height) and it weighs 51,4kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia, United States

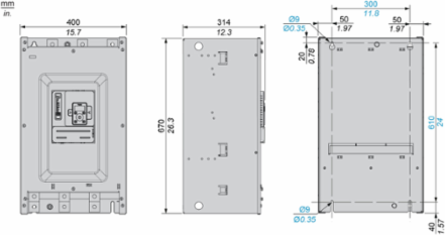

Depth314.0 mm
Communications & Management Attributes
- Communication Data Link
- serial
Communication Port ProtocolModbus serial
Complementary Attributes
- Maximum Horse Power Rating
- 400.0 hp 575 V heavy duty150.0 hp 208 V heavy duty, 200.0 hp 230 V normal duty400.0 hp 460 V normal duty, 350.0 hp 460 V heavy duty500.0 hp 575 V normal duty
- Integrated Motor Overload Protection
- true
- Minimum Switching Current
- 100 mA 12 V DC relay outputs
Maximum Switching Currentrelay outputs, relay outputs 2 A 250 V ACrelay outputs 2 A 30 V DC
Maximum Permanent Current480.0 A at 40 °C heavy duty
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Device Connection
- in the motor supply line, to the motor delta terminals
- Function Available
- external bypass control, pre-heating, smoke extraction, multi-motor cascade, second motor set, user management, ports and services hardening, security event logging, cybersecure firmware update, single direction
- Motor Power Kw
- 250.0 kW 440 V in the motor supply line heavy duty315.0 kW 500 V in the motor supply line heavy duty315.0 kW 525 V in the motor supply line heavy duty400.0 kW 660 V in the motor supply line heavy duty400.0 kW 400 V to the motor delta terminals normal duty355.0 kW 400 V to the motor delta terminals heavy duty, 160.0 kW 230 V in the motor supply line normal duty132.0 kW 230 V in the motor supply line heavy duty315.0 kW 400 V in the motor supply line normal duty, 250.0 kW 400 V in the motor supply line heavy duty355.0 kW 440 V in the motor supply line normal duty400.0 kW 500 V in the motor supply line normal duty, 400.0 kW 525 V in the motor supply line normal duty560.0 kW 660 V in the motor supply line normal duty, 560.0 kW 690 V in the motor supply line normal duty, 500.0 kW 690 V in the motor supply line heavy duty, 250.0 kW 230 V to the motor delta terminals heavy duty
- Protection Type
- line supply phase loss motorthermal protection motor, phase failure lineintegrated thermal protection motorthermal protection starter, current overload motor, underload motor, excessive starting time, locked rotor motor, motor phase loss motor, line supply phase loss line
- Certificate Agency
- CE, cULus, CCC, UKCA, RCM, EAC, DNV, ABS, BV, CCS
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
- Maximum Acceleration Under Vibratory Load (During Transport)
- 15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 6.638422, 7 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 486 kg CO2 eq., 485.8154
- Local Data Status
- Publishable
- Pre Comm Date
- 2021-12-20
- Stocking Flag
- N
- Device Type
- Soft starter - Soft starter
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Applicability
- Finished product
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Apparent Power
- 0.125 kVA
- Data Format
- 8 bits, configurable odd, even or no parity
- Display Screen Available
- true
- Network Frequency
- 50/60 Hz
- Number Of Addresses
- 0-227 Modbus serial
- Phase
- 3 phase
- Power Loss Static Current Independent
- 25.0 W
- Product Destination
- asynchronous motors
- Product Specific Application
- process and infrastructures
- Returnability
- Yes
- Supply Frequency
- 50...60 Hz - 20...20 %
- Total Lifecycle Carbon Footprint
- 41 494 kg CO2 eq.
- Transmission Rate
- 1200...256000 bit/s
- Updatability
- Upgradeable through digital modules
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Torque Control
- true
- Database Version
- 2020-12
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity Mix; AC; < 1kV; EU-27
- Height Nominal
- 670.0 mm
- [Ie] Rated Operational Current
- normal duty 590.0 A 40 °C)
- [Ui] Rated Insulation Voltage
- 690 V
- [Us] Rated Supply Voltage
- 208...690 V - 15...10 %
- Maximum Acceleration Under Shock Load (During Storage)
- 100 m/s² at 11 ms
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Storage)
- 1.75 mm at 2...9 Hz
- With Safety Function Safe Brake Management (Sbc/Sbt)
- false
- With Safety Function Safe Operating Stop (Sos)
- false
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Torque Off (Sto)
- false
- With Safety Function Safely Limited Speed (Sls)
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Manufacturing [A1-a3]
- 75336.52
- Air Pollution (M3) Installation [A5]
- 190.757
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 5623.436
- Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
- 485.8154
- Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
- 13.5044
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 9463.86
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 9859.78
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 395.8808
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 157.0254
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 107.1238
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 230.6234
- Water Pollution (M3) Manufacturing [A1-a3]
- 48570.76
- Water Pollution (M3) Installation [A5]
- 120.9124
- [In] Rated Current Pwr Loss Specifctn2
- 590.0 A
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityconducted and radiated emissions level A conforming to IEC 60947-4-2conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-11, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
MarkingCE, CCC, UKCA, EAC, RCM, cULus
Option Cardcommunication module Profibus DP V1, communication module Modbus TCP/EtherNet/IP, communication module CANopen daisy chain, communication module CANopen Sub-D, communication module CANopen open style, communication module PROFINET
Utilisation CategoryAC-3A, AC-53A
[Ue] Rated Operational Voltage440 V 250.0 kW in the motor supply line heavy duty500 V 315.0 kW in the motor supply line heavy duty525 V 315.0 kW in the motor supply line heavy duty660 V 400.0 kW in the motor supply line heavy duty575 V 400.0 hp heavy duty, 230 V 160.0 kW in the motor supply line normal duty230 V 132.0 kW in the motor supply line heavy duty400 V 315.0 kW in the motor supply line normal duty, 400 V 250.0 kW in the motor supply line heavy duty440 V 355.0 kW in the motor supply line normal duty500 V 400.0 kW in the motor supply line normal duty, 525 V 400.0 kW in the motor supply line normal duty660 V 560.0 kW in the motor supply line normal duty, 690 V 560.0 kW in the motor supply line normal duty, 690 V 500.0 kW in the motor supply line heavy duty208 V 150.0 hp heavy duty, 230 V 200.0 hp normal duty460 V 400.0 hp normal duty, 460 V 350.0 hp heavy duty575 V 500.0 hp normal duty
Maximum Acceleration Under Vibratory Load (During Storage)15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz
Carbon Footprint Of The Distribution Phase [A4]7.586474, 8 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]8 kg CO2 eq., 7.726222
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]40 986 kg CO2 eq., 40985.7691146881
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Manufacturing Carbon Footprint485.8154
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2102013EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2149
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Connector Type1 RJ45
Device Short NameATS480
Method Of Accessslave Modbus serial
Noise Level55.0 dB
Operating Positionvertical +/- 10 degree
Power Loss Per Device Current Dependent1711.0 W
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typesoft starter
Range Of ProductAltivar Soft Starter ATS480
Software VersionEIME v5.9.1
Sustainable PackagingNo
Transmission FrameRTU
Type Of Polarizationno impedance Modbus serial
Volume Of Cooling Air600.0 m3/h
With Safety Function Safe Programmable Logicfalse
Pep CodeENVPEP2102013EN
Pep Verification Date2021-11-01
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration and deceleration phase with a torque control. It’s based on three phases dimmer with Silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 660 A in the case study which lead to drive several power motor depending of power network ie 230V power motor of 110kW and 690V power motor of 355kW. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 45% uptime in use phase, 45% uptime in stand by phase and 10% uptime in off phase.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh69418.62
Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
Width Nominal400.0 mm
[Uc] Control Circuit Voltage24 V DC110...230 V AC 50/60 Hz - 15...10 %
[Uimp] Rated Impulse Withstand Voltage6 kV
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Maximum Acceleration Under Shock Load (During Transport)100 m/s² at 11 ms
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load (During Transport)1.75 mm at 2...9 Hz
With Safety Function Safe Direction (Sdi)false
With Safety Function Safe Position (Sp)false
With Safety Function Safe Stop 1 (Ss1)false
With Safety Function Safely Limited Position (Slp)false
With Sft Fct Safe Stop 2 (Ss2)false
Package Weight(Lbs)61.5 kg
Warranty (In Months)18
Air Pollution (M3) Distribution [A4]322.7238
Air Pollution (M3) End Of Life [C1-c4]492.0286
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]106.5848
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]1604.652
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]277.389
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]107.1238
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]107.2708
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle157.0254
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]9306.864
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle230.6234
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]165.2574
Water Pollution (M3) Distribution [A4]1247.54
Water Pollution (M3) End Of Life [C1-c4]939.82
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-40 °C (without derating), -15-40 °C (without derating), 40-60 °C (with current derating of 2 % per °C), -15-40 °C (without derating), -15-40 °C (without derating)
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2102013EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2102013EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint41493.5356326881
Environmental DisclosureENVPEP2102013EN
Ip Degree Of ProtectionIP00
Packaging Without Single Use PlasticNo
Relative Humidity0-95 % without condensation or dripping water IEC 60068-2-3
Pep Verification Date2021-11-01
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Soft Starter ATS480
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Discrete Output Type
- DQ1) programmable digital output <= 30 V, DQ2) programmable digital output <= 30 V
- Analogue Output Number
- 1
- Discrete Output Number
- 2
- Output Current Drift
- 150-700 %
Relay Output Typerelay outputs R1A 1 NO, relay outputs R1B 1 NOrelay outputs RIC NO/NC programmable
Analogue Output Typecurrent output AQ1 0...20 mA or 0...10 V 500 Ohm
Output Compatibilityopen collector level 1 PLC IEC 65A-68
Relay Output Number3
Input Attributes
- Analogue Input Type
- AI1/PTC PTC/Pt 100 temperature probe, PTC2 PTC/Pt 100 temperature probe, PTC3 PTC/Pt 100 temperature probe
- Input Compatibility
- STOP discrete input level 1 PLC IEC 61131-2, RUN discrete input level 1 PLC IEC 61131-2, DI3 discrete input level 1 PLC IEC 61131-2, DI4 discrete input level 1 PLC IEC 61131-2
- Discrete Input Logic
- programmable digital input < 5 V
Discrete Input TypeSTOP) logic inputs, 3500 Ohm, RUN) logic inputs, 3500 OhmDI3) programmable as logic input, 3500 Ohm, DI4) programmable as logic input, 3500 Ohm
Analogue Input Number1
Discrete Input Number4
Batteries & Runtime Attributes
- Removable Battery
- Yes
Loading video…
Similar Products
Loading carousel layout...
Loading carousel layout...
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
