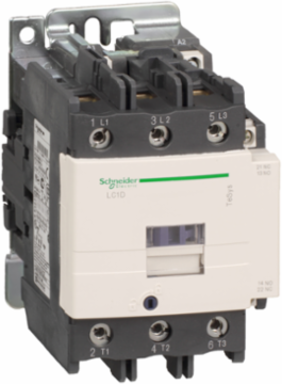

Schneider Electric LC1D80BW TeSys Deca Contactor - 3 Pole, 80A, 24V DC, IP20 Design
- MPN: LC1D80BW
- PPN: SCH-LC1D80BW
CAD
$694.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The TeSys Deca contactor from Schneider Electric is engineered for efficient automation and control in a variety of industrial applications. This three-pole device supports an impressive 80A at 24V DC, making it suitable for handling substantial electrical loads. Its IP20 design ensures a reliable operation in controlled environments by offering protection against solid objects larger than 12mm, enhancing durability and safety. Ideal for panel builders and engineers, this contactor provides robust performance essential for effective motor control and automation solutions.
Documentation & Downloads
Specifications
Additional
- Amperage
- 80 A
- Maximum Horsepower Rating
- 60 Hp at 460/480 V AC for 3 phase motors
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Fuse Rating
- 200 A gG at <= 690 V for power circuit, 10 A gG for signalling circuit
- Rated Insulation Voltage
- 600 V CSA/UL, 1000 V IEC 60947-4-1 for power circuit; 600 V CSA/UL, 690 V IEC 60947-1 for signalling circuit
- Pollution Degree
- 3
- Mechanical Durability
- 10 M cycles
- Control Circuit Type
- DC wide range
- Hold-in Power Consumption
- 22 W at 20 0C
- Maximum Operating Rate
- 3600 cycles per hour at 60 0C
- Minimum Switching Voltage
- 17 V for signalling circuit
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Terminal Connection Wire Range
- 1-50 mmb2 flexible or solid cable depending on terminal
- Auxiliary Contact Composition
- 1 NO + 1 NC mechanically linked
- Height
- 5.00 in (127 mm)
- Depth
- 7.32 in (186 mm)
- Permissible Ambient Temperature
- -40 to 60 0C operating, 60 to 70 0C with derating
- IP Degree of Protection
- IP20 front face IEC 60529
- Flame Retardance
- V1 UL 94
- RoHS Compliant
- Yes
- Warranty
- 18 months
Motor Power22 kW at 220-230 V AC, 37 kW at 380-400 V AC, 45 kW at 415-440 V AC, 55 kW at 500 V AC, 45 kW at 660-690 V AC (AC-3)
Thermal Current125 A at 60 0C for power circuit, 10 A at 60 0C for signalling circuit
Rated Short-time Withstand Current640 A (10 s), 990 A (1 s) at 40 0C for power circuit; 135 A (10 min), 320 A (1 min) at 40 0C for power circuit; 100 A (1 s), 120 A (500 ms), 140 A (100 ms) for signalling circuit
Average Impedance0.8 mOhm at 125 A 50 Hz for power circuit
Overvoltage CategoryIII
Rated Impulse Withstand Voltage8 kV IEC 60947
Electrical Durability1.5 M cycles at 80 A AC-3
Inrush Power22 W at 20 0C
Operating Time95-130 ms closing, 20-35 ms opening
Signalling Circuit Frequency25-400 Hz
Minimum Switching Current5 mA for signalling circuit
Poles3
Tightening Torque1.2 N.m control circuit, 12 N.m power circuit
MountingRail, Plate
Width3.35 in (85 mm)
Net Weight5.71 lb (2.59 kg)
Operating Altitude0 to 3000 m
Fire Resistance850 0C IEC 60695-2-1
ComplianceCSA, UL, IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, EN 60947-5-1, Lloyds Register, RINA, CCC, GL, GOST, BV, DNV
PVC FreeYes
