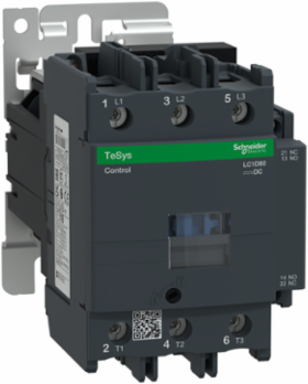

Schneider Electric LC1D80GD TeSys Deca Contactor 3P 80A 120V DC Coil 85mm Width
- MPN: LC1D80GD
- PPN: SCH-LC1D80GD
CAD
$694.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Schneider Electric's TeSys Deca Contactor provides reliable switching for a variety of applications in the automation and control sector. With its robust design, this 3-pole contactor is rated for 80A and features a 120V DC coil, making it suitable for both industrial and commercial environments. Measuring 85mm in width, the compact form factor allows for efficient use of space while ensuring optimal performance and durability. As part of the NEMA contactors and starters range, this unit is engineered to meet the demands of modern electrical systems, ensuring safe and effective operation in a variety of setups.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 125 A AC-1, 80 A AC-3, 80 A AC-3e @ <=440 V AC (power circuit)
- Amperage
- 80 A
- Pole Contact Composition
- 3 NO
- Operating Time
- 95-130 ms closing, 20-35 ms opening
- Thermal Current
- 125 A (power circuit), 10 A (signalling circuit)
- Breaking Capacity
- 1100 A @ 440 V
- Associated Fuse Rating
- 10 A gG (signalling circuit), 200 A gG Type 1, 160 A gG Type 2 @ <=690 V (power circuit)
- Power Dissipation per Pole
- 5.1 W (AC-3), 12.5 W (AC-1), 5.1 W (AC-3e)
- Overvoltage Category
- III
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Electrical Durability
- 0.8 M cycles @ 125 A AC-1, 1.5 M cycles @ 80 A AC-3/AC-3e
- Coil Technology
- Without built-in suppressor module
- Inrush Power
- 22 W @ 20 C
- Mounting Support
- Rail, Plate

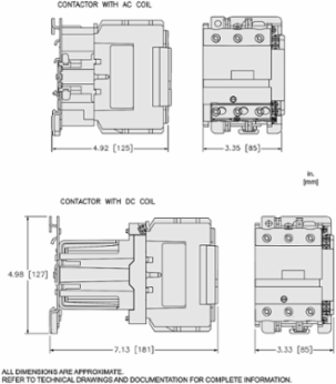

- Height
- 127 mm (5.00 in)
- Net Weight
- 2.59 kg (5.71 lb)
- Minimum Switching Voltage
- 17 V (signalling circuit)
- Rated Operational Voltage
- <= 300 V DC, <= 690 V AC
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- IP Degree of Protection
- IP20 front face IEC 60529
- Operating Altitude
- 0 to 3000 m
- Material / Construction
- Protective cover with TH IEC 60068-2-30, Climatic withstand IACS E10 exposure to damp heat
- RoHS Compliance
- Compliant, Lead free, Mercury free, PVC free, Free of SVHC above threshold
Motor Power22 kW @ 220-230 V AC, 37 kW @ 380-400 V AC, 45 kW @ 415-440 V AC, 55 kW @ 500 V AC, 45 kW @ 660-690 V AC (AC-3); 7.5 Hp @ 120 V AC (1 phase), 15 Hp @ 230/240 V AC (1 phase), 30 Hp @ 200/208 V AC (3 phase), 60 Hp @ 460/480 V AC (3 phase)
VoltageRated operational voltage: <= 300 V DC, <= 690 V AC
Auxiliary Contact Composition1 NO + 1 NC
Maximum Operating Rate3600 cycles/hour @ 60 C
Making Capacity1100 A @ 440 V (power circuit), 140 A AC / 250 A DC (signalling circuit)
Rated Short-Time Withstand Current640 A (10s), 990 A (1s), 135 A (10min), 320 A (1min) @ 40 C (power circuit)
Average Impedance0.8 mOhm @ 125 A 50 Hz
Rated Insulation Voltage600 V CSA/UL (power), 1000 V IEC 60947-4-1 (power), 690 V IEC 60947-1 (signalling)
Pollution Degree3
Mechanical Durability4 M cycles
Control Circuit TypeDC standard
Control Circuit Voltage Limits0.1...0.3 Uc drop-out DC, 0.85...1.1 Uc operational DC, 1...1.1 Uc operational DC (temperature dependent)
Hold-in Power Consumption22 W @ 20 C
Width85 mm
Depth186 mm (7.32 in)
Contact CompatibilityM9
Minimum Switching Current5 mA (signalling circuit)
Pole Description3P
Product CertificationsRINA, CCC, CSA, DNV, GOST, LROS, UL, BV, GL
Operating Ambient Temperature-40 to 60 C, 60 to 70 C with derating
Flame RetardanceV1 UL 94
Country of OriginCzech Republic
Warranty18 months
