TeSys Giga 4 Pole High Power Contactor 440A 200-500V AC/DC Coil
Schneider Electric

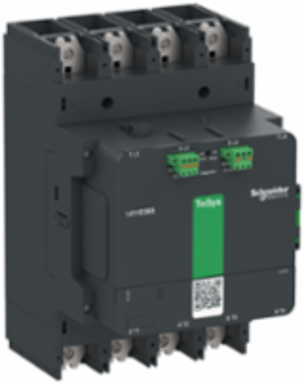

Schneider Electric LC1G3304LSEA TeSys Giga 4 Pole High Power Contactor 440A 200-500V AC/DC Coil

  • MPN: LC1G3304LSEA
  • PPN: SCH-LC1G3304LSEA

CAD

$4806.37

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

TeSys Giga 4 Pole High Power Contactor 440A 200-500V AC/DC Coil

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Czechia, France
Depth226 mm

Physical Attributes

Color
dark grey

Complementary Attributes

Control Circuit Voltage Limits
operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Irms Rated Making Capacity
3830 A at 440 V
Rated Breaking Capacity
2940 A at 440 V
Maximum Operating Rate600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1
Maximum Motor Phase Current330 A

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
400 A aM at <= 440 V for motor, 250 A aM at <= 690 V for motor, 500 A gG at <= 690 V, 600 A UL Type L at <= 600 V
Operating Time
40...70 ms closing, 15...50 ms opening
Safety Reliability Level
B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Certificate Agency
CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
[Ie] Rated Operational Current
330 A (at <60 °C) at <= 440 V AC-3, 440 A (at <40 °C) at <= 1000 V AC-1
[Ue] Rated Operational Voltage
<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]
15.629861695978992, 16 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.1 kg CO2 eq., 0.12943937065385802
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
2 605 kg CO2 eq., 2605.2815669568154
Local Publishable Date
2026-04-11
Stocking Flag
N
Device Type
LV equipment - LV contactor
Traceability
Yes
Average Life Duration
20 year(s)
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Average Impedance
0.000144 Ohm
Compatibility Code
LC1G
Contactor Application
power switching
Electrical Durability
300 cycles AC-1 400 V
Inrush Power In W
300 W
Mounting Support
plate
Number Of Poles
4P
Pole Contact Composition
4 NO
Product Or Component Type
contactor
Range
TeSys
Returnability
Yes
Sustainable Packaging
Yes
Total Lifecycle Carbon Footprint
2 721 kg CO2 eq.
Control Circuit Voltage
200...500 V
Pep Code
ENVPEP2105013EN
Pep Verification Date
2026-03-19
Psr Version
PSR-0005-ed3-2023 06 06
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2020; China, CN
Recyclability Potential, In %
55
Width Nominal
185 mm
[Ui] Rated Insulation Voltage
1000 V
Hold-in Power Consumption In Va
16.1-16.1 VA
Rated Thermal Current (Ith)
440 A
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole30 W AC-1 - Ith 440 A, 16 W AC-3 - Ith 330 A
Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
[Icw] Rated Short-time Withstand Current2.65 kA - 10 s, 1.8 kA - 30 s, 1.3 kA - 1 min, 0.9 kA - 3 min, 0.75 kA - 10 min
[Uc] Control Circuit Voltage200...500 V, 200...500 V AC 50/60 Hz, 200...500 V DC
Connections - Terminalscontrol circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable endpower circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]13.730241763205159, 14 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]86 kg CO2 eq., 86.23527388956006
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting
Connection Pitch45 mm
Device Short NameLC1G
Inrush Power In Va530-530 VA
Mechanical Durability8 Mcycles
Number Of Modules Per Plc Per Pc1
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Software Versionv6.2.4
Tightening Torque35 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Thermal Current Hv440 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh3153.6
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal290 mm
[Ith] Conventional Free Air Thermal Current440 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Hold-in Power Consumption In W9.0-9.0 W
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)10.577 kg
Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-60-80 °C, -60-80 °C
Permissible Ambient Air Temperature Around The Device
-40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
Halogene Performance
Halogen free plastic parts product
Mercury Free
Yes
Circularity Profile
ENVEOLI2105013
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2026-03-19
Psr Version
PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint2721.0063836762133
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
