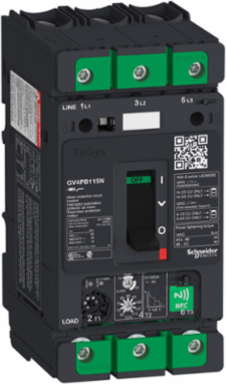

Schneider Electric GV4PB115N TeSys GV4 Motor Circuit Breaker, 3P, 115A, Icu 50kA, IP40
Schneider Electric GV4PB115N TeSys GV4 Motor Circuit Breaker, 3P, 115A, Icu 50kA, IP40
- MPN: GV4PB115N
- PPN: SCH-GV4PB115N
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1222.48/ EA
Description
TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW@400V. Multifunction circuit breaker UL489 compliant, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 65-115A, a selectable tripping class 10 or 20, rated tripping current 125%, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL 489, CSA C22.2 N°5), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- IEC || UL || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Climatic Withstand
- IACS E10
- Ambient Air Temperature For Storage
- -50-85 °C
- Operating Altitude
- 5000 m
Ik Degree Of ProtectionIK07 IEC 62262
StandardsEN/IEC 60947-1 || EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 489 || CSA C22.2 No 5
Pollution Degree3
Ip Degree Of ProtectionIP40 IEC 60529
Fire Resistance960 °C IEC 60695-2-11
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1704004EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1704004EN
- Halogen Content Performance
- Halogen free plastic parts product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Mechanical Robustness
- vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2 || 600Y/347 V AC 60 Hz UL 489
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Magnetic Tripping Current
- 1955-1955 A
- Maximum Operating Rate
- 25 cyc/h
- Connections - Terminals
- EverLink BTR screw connectors top) 1 1.5-70 mm² - rigid || EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible || EverLink BTR screw connectors bottom) 1 2.5-95 mm² - rigid || EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible
- Net Weight
- 1.45 kg
- [Ics] Rated Service Short-Circuit Breaking Capacity
- 100 % 220/240 V AC 50/60 Hz IEC 60947-2 || 100 % 380/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 525 V AC 50/60 Hz IEC 60947-2 || 25 % 660/690 V AC 50/60 Hz IEC 60947-2
- Power Dissipation Per Pole
- 4.6 W
- Breaking Capacity
- 65 kA SCCR 240 V AC 60 Hz UL 489 || 35 kA SCCR 480Y/277 V AC 60 Hz UL 489 || 18 kA SCCR 600Y/347 V AC 60 Hz UL 489 || 100 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 25 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 525 V AC 50/60 Hz IEC 60947-2 || 8 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2
- [Ui] Rated Insulation Voltage
- 800 V AC 50/60 Hz IEC 60947-2
- Mechanical Durability
- 40000 cycles
- Colour
- grey RAL 7016)
- Depth
- 116 mm
[In] Rated Current115 A
Height171 mm
Rated Dutycontinuous IEC 60947-4-1
[Ith] Conventional Free Air Thermal Current115 A IEC 60947-4-1
Operating Positionany position
Utilisation Categorycategory A IEC 60947-2 || AC-3 IEC 60947-4-1
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Control Typetoggle
Electrical Durability10000 cycles AC-3 440 V In/2 || 5000 cycles AC-3 440 V In
Suitability For Isolationyes IEC 60947-1
Tightening Torque9 N.m 16-95 mm² || 5 N.m 1.5-10 mm²
Poles Description3P
Width81 mm
Specifications
- Range Of Product
- TeSys GV4
- Product Name
- TeSys GV4 || TeSys Deca
- Device Application
- motor protection
- Trip Unit Technology
- electronic || thermal-magnetic
Product Or Component Typemotor circuit breaker
RangeTeSys Deca
Device Short NameGV4PB
