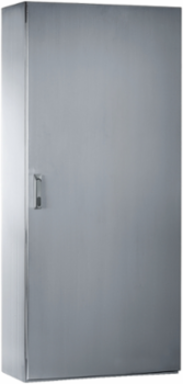

Schneider Electric NSYSMX16840 Stainless Steel Monobloc Enclosure 1600x800x400mm, IK10, IP66
- MPN: NSYSMX16840
- PPN: SCH-NSYSMX16840
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for excellence in demanding environments, this stainless steel monobloc enclosure from Schneider Electric is an ideal solution for your automation and control needs. Measuring 1600x800x400mm, it offers robust protection with an IK10 rating for impact resistance and an IP66 rating to ensure dust-tight and water-tight integrity. Designed to safely house sensitive data and communication equipment, this enclosure combines durability and security, making it essential for IT infrastructures where reliability and resilience are paramount.
Documentation & Downloads
Specifications
Additional
- IK Degree of Protection
- IK10 IEC 62262
- Material
- Body and door stainless steel 304L, handle zamak, hinge stainless steel
- Door Opening Side
- Reversible 120°
- Enclosure Nominal Height
- 1600 mm
- Enclosure Nominal Depth
- 400 mm
- Surface Finish
- Enclosure Scotch-Brite® brushed, handle painted
- Standards
- IEC 62208
- Range
- Spacial
- Device Application
- Multi-purpose
- Mounting Plate Description
- Without mounting plate
- Accessibility For Operation
- Front
- Removable Parts
- Door by hinges, mounting plate bracket by screws, cable gland plate by clips
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- China Rohs Regulation
- Out of China RoHS scope; substance declaration available
- Circularity Profile
- N/A
- Environmental Disclosure
- ENVPEP2107011EN
IP Degree of ProtectionIP66 IEC 60529
Lock Type3 points lock, handle with 5 mm double-bar insert
Door TypePlain solid
Enclosure Nominal Width800 mm
Weight93.5 kg (206.13 lb)
Device Composition1 body, 1 cable gland plate, 1 locking system with handle door, 4 mounting plate brackets, 1 door
Product CertificationsCAN/CSA 22, UL 508
Environmental CharacteristicCorrosive, specific hygiene
Installation Accessory TypeFloor-standing
Number of DoorsFront face 1
Type Of Gland PlatePlain
Warranty18 months
Eu Rohs DirectivePro-active compliance (out of EU RoHS legal scope)
Rohs Exemption InformationYes
Sustainable Offer StatusGreen Premium product
Mercury FreeYes
