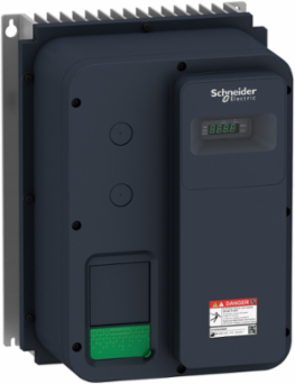

Schneider Electric ATV320U30N4W Altivar Machine Variable Speed Drive, 3kW, 380-500V, IP66
Schneider Electric ATV320U30N4W Altivar Machine Variable Speed Drive, 3kW, 380-500V, IP66
- MPN: ATV320U30N4W
- PPN: SCH-ATV320U30N4W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1551.37/ EA
Description
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed 3-phase synchronous and asynchronous motors. It works at a rated power up to 3kW, and a rated voltage from 380V to 500V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 7.7kg. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. EcoStruxure Machine software compatibility enables developping, configuring and commissioning the entire machine in a single software environment, including logic, motion control, HMI and related network automation functions. It is delivered in 2 packages. ATV320 can be installed alone or side by side in a multi-drive configuration. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Specifications
Complementary
- Prospective Line Isc
- 5 kA
- Power Dissipation In W
- self-cooled 93.0 W 380 V 4 kHz
- Analogue Output Type
- software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
- Asynchronous Motor Control Profile
- voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
- 4 Quadrant Operation Possible
- true
- Apparent Power
- 7.3 kVA 500 V heavy duty)
- With Safety Function Safe Direction (Sdi)
- false
- Switching Frequency
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Motor Slip Compensation
- automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- Discrete Input Number
- 7
- With Safety Function Safe Stop 1 (Ss1)
- true
- Depth
- 235.0 mm
- Maximum Output Frequency
- 0.599 kHz
- Height
- 340 mm
- Maximum Output Voltage
- 500 V
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Torque Off (Sto)
- true
- Minimum Switching Current
- relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
- With Safety Function Safe Programmable Logic
- false
- Nominal Switching Frequency
- 4 kHz
- Discrete Input Type
- STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- With Safety Function Safely Limited Speed (Sls)
- true
Network Frequency50...60 Hz
Line Current11.1 A 380 V heavy duty) || 8.4 A 500 V heavy duty)
Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
Maximum Switching Currentrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC || relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
Relative Symmetric Network Frequency Tolerance5 %
Net Weight7.7 kg
Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
Analogue Input Number3
Discrete Output Number3
Method Of Accessslave CANopen
With Safety Function Safe Operating Stop (Sos)false
With Sft Fct Safe Stop 2 (Ss2)false
Width250 mm
Analogue Input TypeAI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
With Safety Function Safe Brake Management (Sbc/Sbt)false
Acceleration And Deceleration Rampslinear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
Base Load Current At High Overload9.5 A
Transient Overtorque170-200 % of nominal motor torque
Analogue Output Number1
Discrete Input Logicpositive logic (source) || negative logic (sink)
Brake Chopper Integratedtrue
Braking To Standstillby DC injection
Protection Typeinput phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
Synchronous Motor Control Profilevector control without sensor
Specifications
- Variant
- standard version
- Product Or Component Type
- variable speed drive
- Communication Port Protocol
- Modbus serial || CANopen
- Product Specific Application
- complex machines
- Range Of Product
- Altivar Machine ATV320
- [Us] Rated Supply Voltage
- 380...500 V - 15...10 %
- Emc Filter
- Class C2 EMC filter integrated
Format Of The Driveenclosed
Ip Degree Of ProtectionIP66
Nominal Output Current7.1 A
Option Cardcommunication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, DeviceNet
Motor Power Kw3.0 kW heavy duty
Mounting Modewall mount
Offer Sustainability
- Mercury Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Upgradeability
- Upgraded components available
- Environmental Disclosure
- ENVPEP1908004EN
- Circularity Profile
- ENVEOLI1908004EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Rohs Exemption InformationYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CE || ATEX || NOM || GOST || EAC || RCM || KC
- Standards
- IEC 61800-5-1
- Permitted Relative Humidity (During Operation)
- class 3K5 according to EN 60721-3
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Pollution Degree
- 3
- Ambient Air Temperature For Operation
- -10-40 °C without derating || 40-60 °C with derating factor
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 10 m/s² at 13...200 Hz
- Operating Position
- vertical +/- 10 degree
- Speed Accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Regulation Loopadjustable PID regulator
Overvoltage CategoryIII
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test IEC 61000-4-11
MarkingCE || ATEX || UL || CSA || EAC || RCM
Ambient Air Temperature For Storage-25-70 °C
Ambient Air Transport Temperature-25-70 °C
