Schneider Electric BMXDRA0815 Modicon X80 Relay Output Module, 8 Channels, 24-240V AC, 24-125V DC

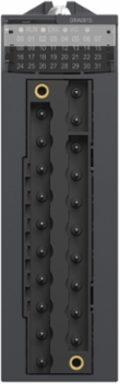

Modicon X80 Relay Output Module, 8 Channels, 24-240V AC, 24-125V DC

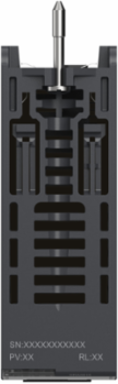

Modicon X80 Relay Output Module, 8 Channels, 24-240V AC, 24-125V DC

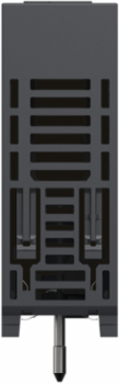

Modicon X80 Relay Output Module, 8 Channels, 24-240V AC, 24-125V DC
Modicon X80 Relay Output Module, 8 Channels, 24-240V AC, 24-125V DC
Modicon X80 Relay Output Module, 8 Channels, 24-240V AC, 24-125V DC
  • MPN: BMXDRA0815
  • PPN: SCH-BMXDRA0815

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$652.23/ EA

Description

Modicon X80 Relay Output Module, 8 Channels, 24-240V AC, 24-125V DC

Specifications

Complementary

Mtbf Reliability
3200000 H
Voltage Range
5...150 V || 19...264 V
Typical Current Consumption
40 mA 3.3 V DC || 101 mA 24 V DC
Output Overvoltage Protection
use discharge diode on each output DC || use RC circuit on each output AC || use ZNO surge limiter on each output AC
Output Short-Circuit Protection
use 1 fast blow fuse per channel or group of channel
Insulation Resistance
> 10 MOhm 500 V DC
[Ith] Conventional Free Air Thermal Current
3 A
Power Dissipation In W
3.6 W
Response Time On Output
<= 10 ms activation || <= 13 ms deactivation
Network Frequency50/60 Hz
Electrical DurabilityAC-12 200000 cycles 48 VA 24 V 0-60 °C || AC-12 300000 cycles 48 VA 48 V 0-60 °C || AC-12 150000 cycles 96 VA 48 V 0-60 °C || AC-12 300000 cycles 110 VA 100...120 V 0-60 °C || AC-12 150000 cycles 220 VA 100...120 V 0-60 °C || AC-12 300000 cycles 220 VA 200...250 V 0-60 °C || AC-12 150000 cycles 500 VA 200...250 V 0-60 °C || AC-15 700000 cycles 10 VA 24 V 0-60 °C 0.4 ) || AC-15 500000 cycles 24 VA 24 V 0-60 °C 0.4 ) || AC-15 200000 cycles 48 VA 24 V 0-60 °C 0.4 ) || AC-15 700000 cycles 10 VA 48 V 0-60 °C 0.4 ) || AC-15 500000 cycles 24 VA 48 V 0-60 °C 0.4 ) || AC-15 300000 cycles 48 VA 48 V 0-60 °C 0.4 ) || AC-15 100000 cycles 96 VA 48 V 0-60 °C 0.4 ) || AC-15 1000000 cycles 10 VA 100...120 V 0-60 °C 0.4 ) || AC-15 300000 cycles 50 VA 100...120 V 0-60 °C 0.4 ) || AC-15 200000 cycles 110 VA 100...120 V 0-60 °C 0.4 ) || AC-15 70000 cycles 220 VA 100...120 V 0-60 °C 0.4 ) || AC-15 1000000 cycles 10 VA 200...250 V 0-60 °C 0.4 ) || AC-15 500000 cycles 50 VA 200...250 V 0-60 °C 0.4 ) || AC-15 200000 cycles 110 VA 200...250 V 0-60 °C 0.4 ) || AC-15 150000 cycles 220 VA 200...250 V 0-60 °C 0.4 ) || DC-12 200000 cycles 24 W 24 V 0-60 °C || DC-12 150000 cycles 48 W 24 V 0-60 °C || DC-12 150000 cycles 40 W 48...60 V 0-60 °C || DC-12 100000 cycles 45 W 100...125 V 0-60 °C || DC-13 100000 cycles 10 W 24 V 0-60 °C || DC-13 60000 cycles 24 W 24 V 0-60 °C || DC-13 40000 cycles 48 W 24 V 0-60 °C || DC-13 40000 cycles 40 W 48...60 V 0-60 °C || DC-13 100000 cycles 15 W 100...125 V 0-60 °C
Minimum Switching Current1 mA 5 V DC
Status Led1 LED (green) RUN || 1 LED per channel (green) channel diagnostic || 1 LED (red) ERR || 1 LED (red) I/O
Output Overload Protectionuse 1 fast blow fuse per channel or group of channel
Network Frequency Limits47-63 Hz
Protection Typeexternal short-circuit protection || external overload protection || external overvoltage protection, inductive AC || external overvoltage protection, inductive DC
Net Weight0.169 kg
Electrical Connection20 ways terminal block

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Environment

Ambient Air Temperature For Operation
0-60 °C
Relative Humidity
0-95 % 60-60 °C without condensation
Shock Resistance
30 gn
Vibration Resistance
3 gn
Ambient Air Temperature For Storage-40-85 °C
Operating Altitude0...2000 m || 2000...5000 m with derating factor
Dielectric Strength1780 V AC 50/60 Hz 1 min
Ip Degree Of ProtectionIP20

Specifications

Range Of Product
Modicon X80
Discrete Output Logic
positive
Product Or Component Type
relay discrete output module
Discrete Output Number8 EN/IEC 61131-2
Discrete Output Voltage24...240 V 19...264 V AC || 24...125 V 5...150 V DC
