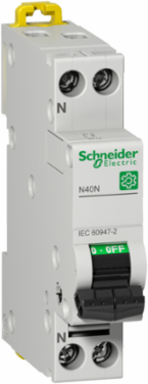

Schneider Electric M9P22610 Miniature Circuit Breaker, 1P+N, 10A, C Curve, 10kA, IP20
Schneider Electric M9P22610 Miniature Circuit Breaker, 1P+N, 10A, C Curve, 10kA, IP20
- MPN: M9P22610
- PPN: SCH-M9P22610
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$149.65/ EA
Description
This Multi9 N40N is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole, 10A rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 10kA at 240VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 78mm. The weight is 0.115kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
Specifications
Complementary
- Network Frequency
- 50/60 Hz
- Height
- 81 mm
- Earth-Leakage Protection
- separate block
- 9 Mm Pitches
- 2
- Net Weight
- 0.115 kg
- Control Type
- toggle
- [Ui] Rated Insulation Voltage
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Electrical Durability
- 20000 cycles
- Local Signalling
- ON/OFF indication
- Colour
- grey
- Provision For Padlocking
- padlockable
- Tightening Torque
- 2-2 N.m top or bottom
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz between phase and neutral
[Ics] Rated Service Breaking Capacity7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz
Contact Position Indicatoryes
Mounting SupportDIN rail
Limitation Class3 EN/IEC 60947-2
Wire Stripping Length13 mm for top or bottom connection
Connections - Terminalstunnel type terminal top or bottom) 0.75-16 mm² - rigid || tunnel type terminal top or bottom) 0.33-10 mm² - flexible || tunnel type terminal top or bottom) 0.33-10 mm² - flexible with ferrule
Mounting Modeclip-on
Mechanical Durability20000 cycles
[Uimp] Rated Impulse Withstand Voltage4 kVEN/IEC 60947-2
Width18 mm
Depth78 mm
Magnetic Tripping Limit8.5 x In +/- 20 % AC
Specifications
- [In] Rated Current
- 10 A 50 °C EN/IEC 60947-2
- Number Of Protected Poles
- 1
- Standards
- EN/IEC 60947-2
- Product Name
- Multi9 N40
- Breaking Capacity
- 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
- Poles Description
- 1P + N
- Device Application
- distribution
- Trip Unit Technology
- thermal-magnetic
Curve CodeC
Network TypeAC
Product Or Component Typeminiature circuit-breaker
RangeMulti9
Suitability For Isolationyes EN/IEC 60947-2
Neutral Positionleft
Device Short NameN40N
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1801003_V2
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Sustainable Packaging
- Yes
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
Tropicalisation2 IEC 60068-1
Pollution Degree3 EN/IEC 60947-2
Relative Humidity95-95 % 55-55 °C
