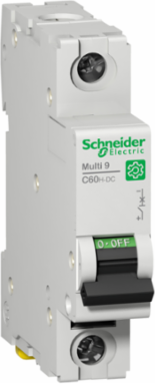

Schneider Electric M9U21106 Miniature Circuit Breaker, 1P, 6A, C Curve, 10kA Breaking Capacity, IP20
Schneider Electric M9U21106 Miniature Circuit Breaker, 1P, 6A, C Curve, 10kA Breaking Capacity, IP20
- MPN: M9U21106
- PPN: SCH-M9U21106
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$194.32/ EA
Description
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 1P circuit breaker with 1 protected pole, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to EN/IEC 60947-2 standard and 10kA at 220VDC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 250VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Ambient Air Temperature For Storage
- -40-85 °C
- Heat Dissipation
- 2.7-2.7 W 220 V - 6 A
Tropicalisation2 IEC 60068-2 || 2 GB 14048.2
Pollution Degree3 EN/IEC 60947-2
Relative Humidity95-95 % 55-55 °C
Complementary
- [Ics] Rated Service Breaking Capacity
- 7.5 kA 75 % EN/IEC 60947-2 - 220 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 250 V DC || 15 kA 75 % EN/IEC 60947-2 - 110 V DC || 7.5 kA 75 % GB 14048.2 - 220 V DC || 4.5 kA 75 % GB 14048.2 - 250 V DC || 15 kA 75 % GB 14048.2 - 110 V DC
- Contact Position Indicator
- yes
- Mounting Support
- DIN rail
- Net Weight
- 0.128 kg
- Control Type
- toggle
- [Ui] Rated Insulation Voltage
- 500 V DC EN/IEC 60947-2
- Electrical Durability
- 3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC
- Local Signalling
- ON/OFF indication
- Colour
- grey
- Provision For Padlocking
- padlockable
- Tightening Torque
- 2.5-2.5 N.m top or bottom
- [Ue] Rated Operational Voltage
- 250 V DC || 110 V DC || 220 V DC
Height81 mm
Earth-Leakage Protectionwithout
9 Mm Pitches2
Wire Stripping Length14 mm for top or bottom connection
Connections - Terminalstunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - rigid stranded || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible with ferrule || tunnel type terminal top or bottom) - 2 1-10 mm² AWG 18...AWG 8) - rigid stranded || tunnel type terminal top or bottom) - 2 1-10 mm² AWG 18...AWG 8) - flexible || tunnel type terminal top or bottom) - 2 1-10 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) - 3 1-1 mm² AWG 18) - flexible stranded
Mounting Modeclip-on
Mechanical Durability20000 cycles
[Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
Width18 mm
Depth73 mm
Magnetic Tripping Limit7...10 x In DC
Specifications
- [In] Rated Current
- 6 A 25 °C EN/IEC 60947-2
- Number Of Protected Poles
- 1
- Standards
- EN/IEC 60947-2 || GB 14048.2 || UL 1077
- Product Or Component Type
- miniature circuit-breaker
- Utilisation Category
- category A EN/IEC 60947-2
- Breaking Capacity
- 10 kA Icu 220 V DC EN/IEC 60947-2 || 6 kA Icu 250 V DC EN/IEC 60947-2 || 20 kA Icu 110 V DC EN/IEC 60947-2 || 5 kA AIR 12...250 V DC UL 1077 || 10 kA Icu 220 V DC GB 14048.2 || 6 kA Icu 250 V DC GB 14048.2 || 20 kA Icu 110 V DC GB 14048.2
- Poles Description
- 1P
- Device Short Name
- C60H-DC
Curve CodeC
Network TypeDC
Product CertificationsIEC || CCC || UR
Product NameMulti9 C60H-DC
RangeMulti9
Suitability For Isolationyes EN/IEC 60947-2
Device Applicationdistribution
Trip Unit Technologythermal-magnetic
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2308050EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
