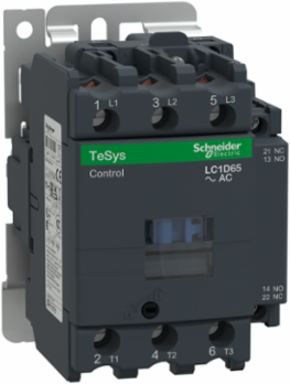

Schneider Electric LC1D65M7 Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 65A,220V AC 50/60Hz coil, screw clamp terminals
Schneider Electric LC1D65M7 Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 65A,220V AC 50/60Hz coil, screw clamp terminals
- MPN: LC1D65M7
- PPN: SCH-LC1D65M7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$506.98/ EA
Description
Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 65A,220V AC 50/60Hz coil, screw clamp terminals
Specifications
Environment
- Product Certifications
- DNV || LROS (Lloyds register of shipping) || CCC || CSA || BV || UL || GL || GOST || UKCA || RINA
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || UL 508 || IEC 60947-4-1
- Net Weight
- 1.4 kg
- Ip Degree Of Protection
- IP2X VDE 0106 || IP2X IEC 60529
- Operating Altitude
- 0...3000 m
- Width
- 75 mm
Height127 mm
Climatic WithstandIACS E10 exposure to damp heat
Flame RetardanceV1 UL 94
Mechanical Robustnessshocks contactor closed 15 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor opened 10 Gn for 11 ms)
Fire Resistance850 °C IEC 60695-2-1
Depth119 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110205EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Non-Overlap Time
- 1.5 ms on energisation between NC and NO contacts || 1.5 ms on de-energisation between NC and NO contacts
- Power Dissipation Per Pole
- 6.4 W AC-1 || 4.2 W AC-3e || 9.6 W AC-1 || 3.7 W AC-3
- Terminals Description Iso N°1
- (21-22)NC || (A1-A2)CO
- Control Circuit Voltage Limits
- 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz || 1...1.1 Uc 60-70 °C operational AC 50/60 Hz || 0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz
- Control Circuit Type
- AC 50/60 Hz
- Insulation Resistance
- > 10 MOhm for control circuit
- Irms Rated Making Capacity
- 140 A at 440 V AC for control circuit conforming to IEC 60947-5-1 || 140 A AC for control circuit conforming to IEC 60947-5-1 || 900 A at 440 V for power circuit conforming to IEC 60947
- Inrush Power In Va
- 160-160 VA cos phi 0.75 (at 20 °C) || 140-140 VA cos phi 0.75 (at 20 °C)
- Pole Contact Composition
- 3 NO
- Coil Technology
- without built-in bidirectional peak limiting diode suppressor
- Minimum Switching Voltage
- 17 V for control circuit
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminal Philips No 2 || power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm || control circuit 1.7 N.m screw clamp terminal pozidriv No 2 || control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm
- Auxiliary Contacts Type
- mirror contact 1 NC IEC 60947-4-1 || mechanically linked 1 NO + 1 NC IEC 60947-5-1
- Hold-In Power Consumption In Va
- 15-15 VA 50 Hz cos phi 0.3 (at 20 °C) || 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
- Motor Power Hp
- 10 hp at 230/240 V AC 60 Hz for 1 phase motors || 20 hp at 200/208 V AC 60 Hz for 3 phases motors || 20 hp at 230/240 V AC 60 Hz for 3 phases motors || 40 hp at 460/480 V AC 60 Hz for 3 phases motors || 50 hp at 575/600 V AC 60 Hz for 3 phases motors || 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors || 3 hp at 115 V AC 60 Hz for 1 phase motors
- [Ui] Rated Insulation Voltage
- control circuit 600 V UL || power circuit 600 V CSA || power circuit 600 V UL IEC 60947-1 || control circuit 690 V IEC 60947-1 || power circuit 690 V CSA IEC 60947-1 || control circuit 600 V CSA
- Protective Cover
- with
Minimum Switching Current5 mA for control circuit
Auxiliary Contact Composition1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current80 A (at 60 °C) for power circuit || 10 A (at 60 °C) for control circuit
Mounting Supportplate
Safety Reliability LevelB10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 || B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
Rated Breaking Capacity900 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating125 A gG at <= 690 V coordination type 1 for power circuit || 125 A gG at <= 690 V coordination type 2 for power circuit conforming to IEC 60947-5-1 || 100 A gG at <= 690 V coordination type 1 for power circuit || 10 A gG for control circuit conforming to IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947
Connections - Terminalscontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: rigid || power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: rigid without cable end || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end || power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end || power circuit: screw terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid
Operating Time12...26 ms closing || 4...19 ms opening
Maximum Operating Rate3600 cyc/h 60 °C
Mechanical Durability6000000 cycles
Compatibility CodeLC1D
Overvoltage CategoryIII
Motor Power Kw30 kW at 380...400 V AC 50 Hz || 37 kW at 500 V AC 50 Hz || 37 kW at 660...690 V AC 50 Hz || 18.5 kW at 220...230 V AC 50 Hz || 30 kW at 415 V AC 50 Hz || 37 kW at 1000 V AC 50 Hz (AC-3) || 25 kW at 415 V AC 50 Hz (AC-3) || 22 kW at 380...400 V AC 50 Hz (AC-3)
Heat Dissipation4-5 W at 50/60 Hz for control circuit
Specifications
- [Uc] Control Circuit Voltage
- 48 V AC 50/60 Hz
- Range Of Product
- TeSys Deca
- Product Or Component Type
- contactor
- Utilisation Category
- AC-1 || AC-2 || AC-4 || AC-3e
- Poles Description
- 3P
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz
Contactor Applicationmotor control || resistive load
RangeTeSys
[Ie] Rated Operational Current65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit || 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Device Short NameLC1D
